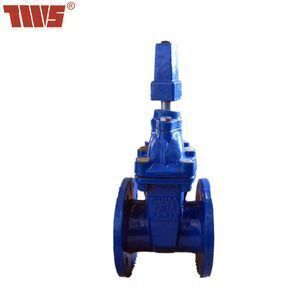

DN65-DN300 ductile iron resilient seated Gate Valve for sewage and oil made in China of Tianjin

Supplier: Tianjin Tanggu Water-Seal Valve Co., Ltd.
Region: Tianjin, China
Contact: Ms Cathy Li
Price: $44.25 / >=5 sets
Min. Order: 5 sets

Click here to contact

Product details

Material:	Casting;	Standard or Nonstandard:	Standard;
Media:	Water;	Single gross weight:	110 KG;
Size:	2 1/2in;	Application:	General;
Pressure:	Low Pressure;	OEM:	We can supply the OEM service;
Power:	Manual;	Structure:	Gate;
Brand Name:	TWS;	Place of Origin:	Tianjin China;
Single package size:	110X110X600 cm;	Temperature of Media:	Low Temperature,Medium Temperature,Normal Temperature;
Certificates:	ISO CE;	Package Type:	"Single valve is packed with foam plastic bag. A shipment of valves are packed with plywood case.Standard Export Package: custom suffocating free wooden box. Box Size: 1.11.1.0.6m, 1.11.10.7m, 1.11.1*0.9m, or other size. Packing: one set butterfly valve in one poly bag, then some pieces in one wooden box. Type of shipping: by sea, by air, by express.";
Selling Units:	Single item;	Port Size:	DN50-600;
Color:	RAL5015 RAL5017 RAL5005;	Model Number:	AZ;
Package Preview:	https://sc02.alicdn.com/kf/HTB1OF3Ga7T2gK0jSZPcq6AKkpXat.jpg_640x640.jpg,https://sc02.alicdn.com/kf/HTB16tcHa4D1gK0jSZFy763iOVXag.png_640x640.png;

OUR COMPANY

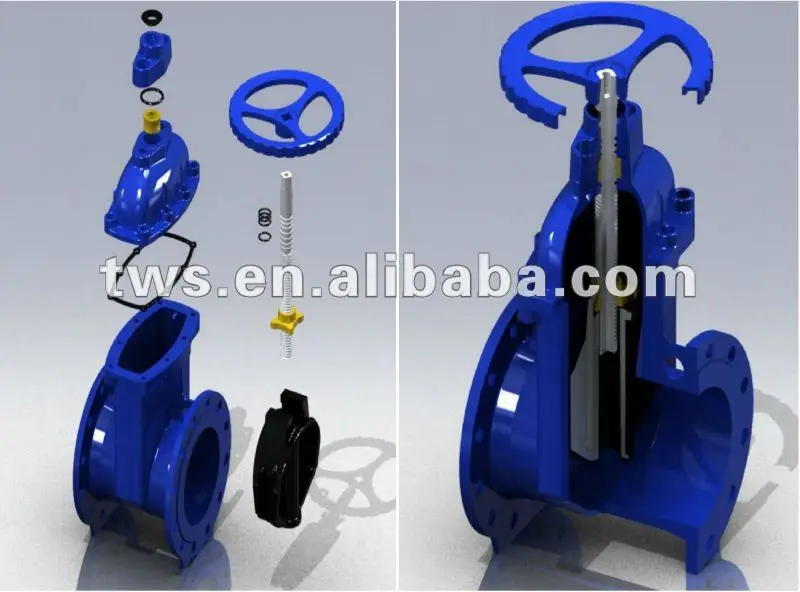

Resilient Seated Pipe Gate Valve

=======================================

DESCRIPTION:

Size: NRS(405)/OS&Y(409) DN65-DN300
End flange: ANSI B16.1
F/F: ANSI B16
NP: 125 PSI

MATERIAL

Size	Non-rising stem: DN50-600 : Ring stem: DN50~600
End flange	EN 1092
Face to face	EN 558-1
Normal pressure	PN1.0/1.6MPa
Body	DI
Disc	DI+EPDM/NBR
Stem	2Cr13 430
Sealing face	EPDM/NBR
Stem Copper Nut	Brass
Bonnet	DI
Working temperature	-15~425
Suitable mediums	Fresh water, sewage, sea water, air, vapor, food, medicine, oils. alkalis, salt etc.

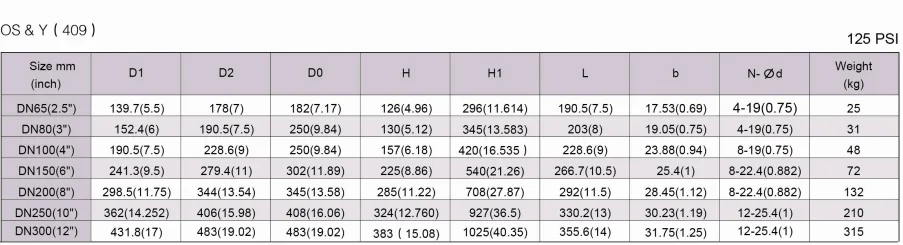

Series AZ OS & Y Gate Valve:

Size	NRS(405)/OS&Y(409) DN65-DN300
End flange	ANSI B16.1
Face to face	ANSI B16.12
Normal pressure	125PSI
Body	HT200 ASTM A216 CL.B
Rubber Disc	QT450+NBR ASTM A536 65-45-12+NBR
Stem:Non-rising stem (405)	Y1Cr13 416
Ring stem (409)	ASTM C62300
Sealing Face	ZQAI 9-4
Stem Nut	ASTM C95200
Bonnet	ASTM A216 CL.B
Working temperature	-15~425
Suitable mediums	Fresh water, sewage, sea water, air, vapor, food, medicine, oils. alkalis, salt

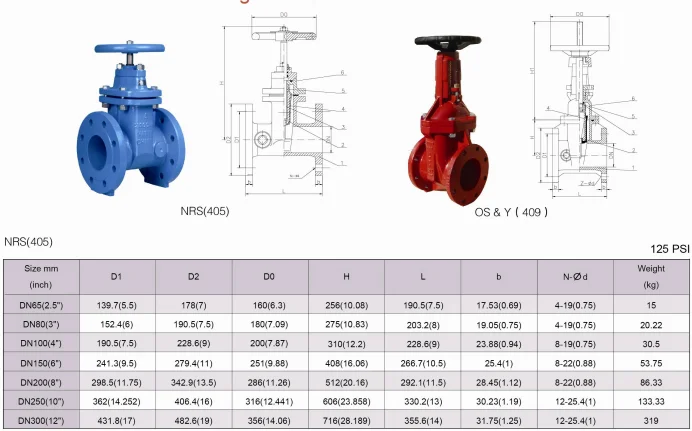

TECHNICAL DATA

COMPANY PROFILE

Tianjin Tanggu Water-Seal Valve Co., Ltd. was established in 2003 and specialized in manufacture following valves:

Wafer butterfly valve, lug butterfly valve, double flanged butterfly valve, u type butterfly valve, grooved end butterfly valve, double eccentric butterfly valve, dual plate check valves, resilient seat gate valves, backflow preventer, y-strainer, balancing valve, and related series products.
