Magnetic Field Sensor with Reasonable Price from China Manufacturer

Product details
Packaging Detail:Standard wooden case packing, 1 set in 1 carton;Name:Fluxgate magnetic sensor;
Size:30*30*120(mm);Supply Ability:300 Set/Sets per Month;
Brand Name:SMAGALL;Water-proof level:IP68;
Place of Origin:Shaanxi China;Orthogonality:≤±0.2°;
Model Number:HS-MS-FG3LN;Net Weight:< 220g;
Power supply:±13V~±17VDC;Payment Terms:L/C,T/T,Western Union;
Port:Shanghai, Tianjin, or other ports customer request;Color:Black + Orange;
Warranty:12 Months;Bandwidth:DC~1KHz;
Measuring range:±100uT;

Magnetic Field Sensor with Reasonable Price from China Manufacturer

Product Description

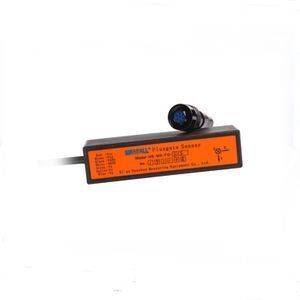

This three axis low noise fluxgate magnetic sensor is a self-developed fluxgate sensor in our company, which has been inspected and standardized by China national professional organization. The noise index could reach international advanced standard. At the same time, the product has the feature of good long time working stability.



The drifting amount of the sensor will not exceed 2nT after 8 hours’ constant working when preheating for half an hour. It is very suitable for high resolution measurement of static magnetic field and alternating magnetic field. Based on that, we have developed 5V DC power supply low noise three axis fluxgate sensor and digital low noise three axis fluxgate sensor, which could meet various requirements for customers.



Detailed Images:







Specifications
 Items Values
 Working power supply ±13V~±17VDC
 Axis number 3
 Measuring range ±70uT~±250uT
 Sensitivity 7~25uT/V
 Bandwidth DC~1KHz(<0.5dB)
 Linearity error ≤0.01%FS
 Orthogonality error ≤±0.2°
 Time domain noise ≤0.1nT RMS@ 10 points each second
 Frequency domain noise ≤6pT/rms√Hz@1Hz
 Power consumption ≤0.4W
 Water-proof level IP68
 Dimension 30*30*120(mm)
 Net weight <220g
 Certificates ISO, CE
Selection Guide

Packaging & Shipping





Main Customers

Certifications



FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.


Q: How long will you give me the reply?
A: We will contact you in 8 hours as soon as possible.


Q: How long is your delivery time?
A: Generally it is 3-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.


Q: Do you provide samples ? is it free or extra?
A: Yes, we can provide you a sample in a relatively favorable price.


Q: Could I be your agent?
A: Of course, we sincerely invite you to be our agent and provide products training.
