Proof Coil Chain High Test Chain ASTM80(G43) Transport Chain ASTM80(G70)
- 0.48 >=100 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Packaging Detail: | Packed in sealed plastice bag, carton box or gunny bag, steel barrel, pallet; | Application: | General Industry,Heavy Industry,Mining,Oil & Gas,Retail Industry,Water Treatment; |
| Delivery Detail: | About 30-45days; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union; |
| Port: | Qingdao, Shanghai, any seaport in China; | Supply Ability: | 500 Ton/Tons per Month; |
| Chains style: | US standard Straight link chain; |

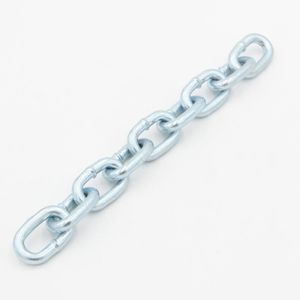

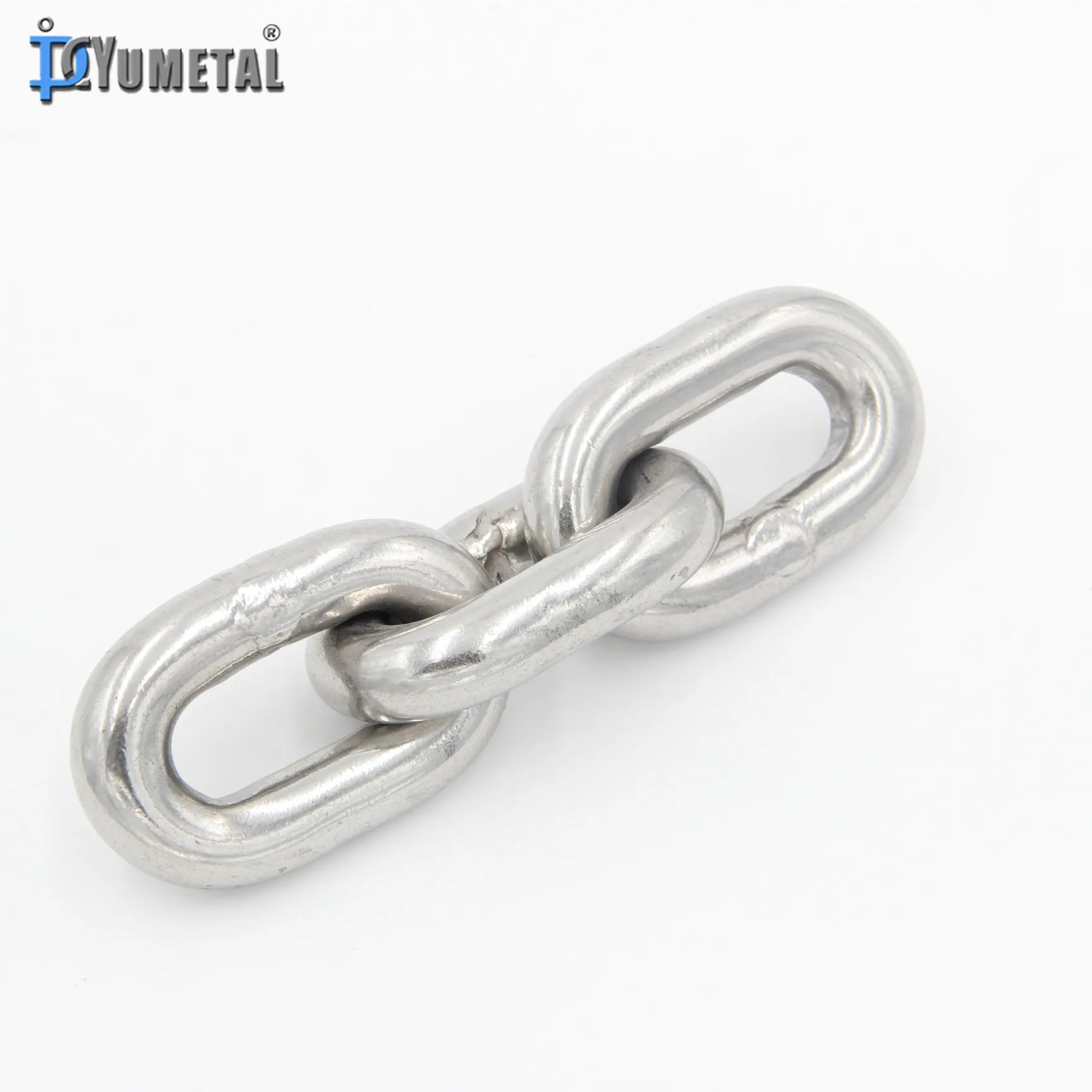

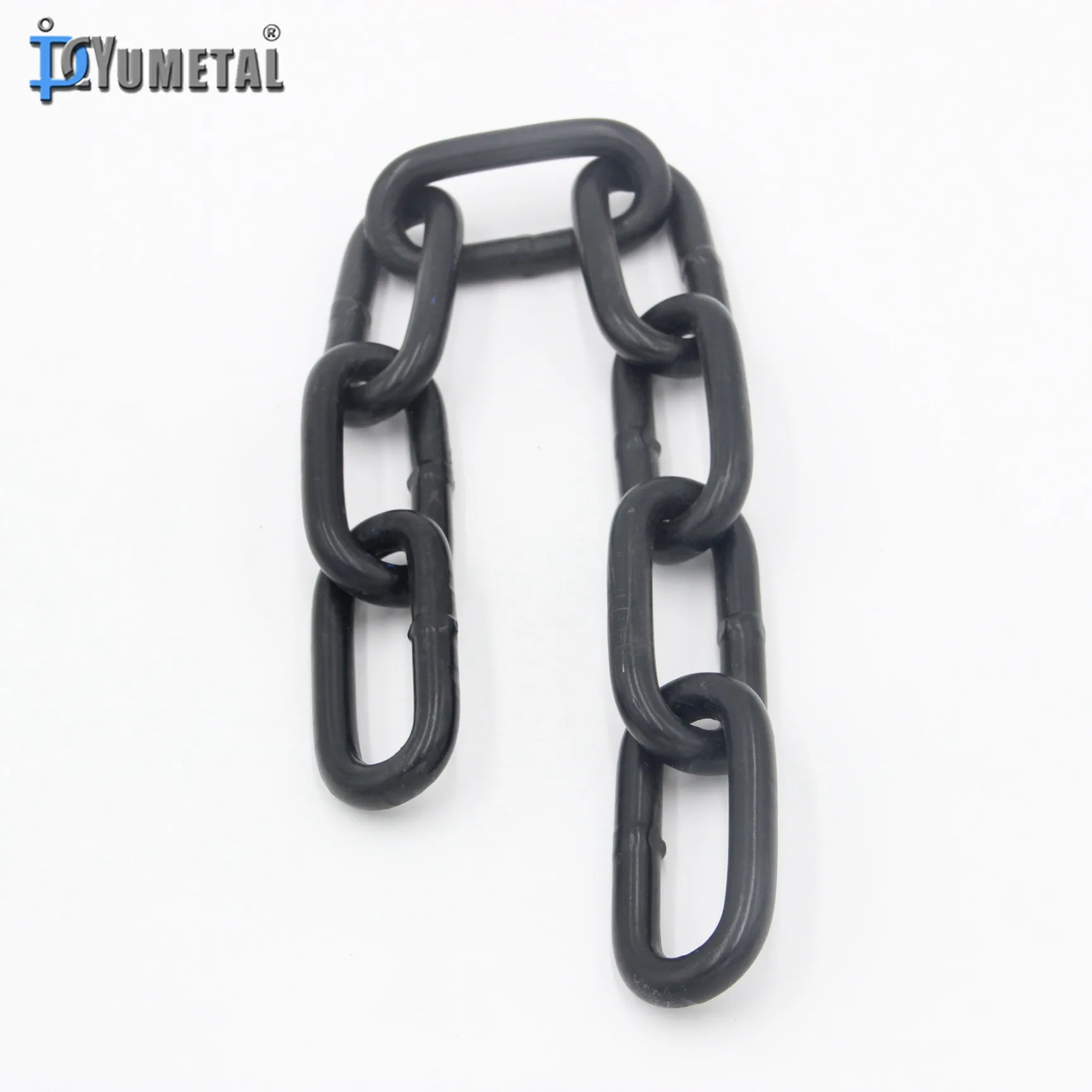

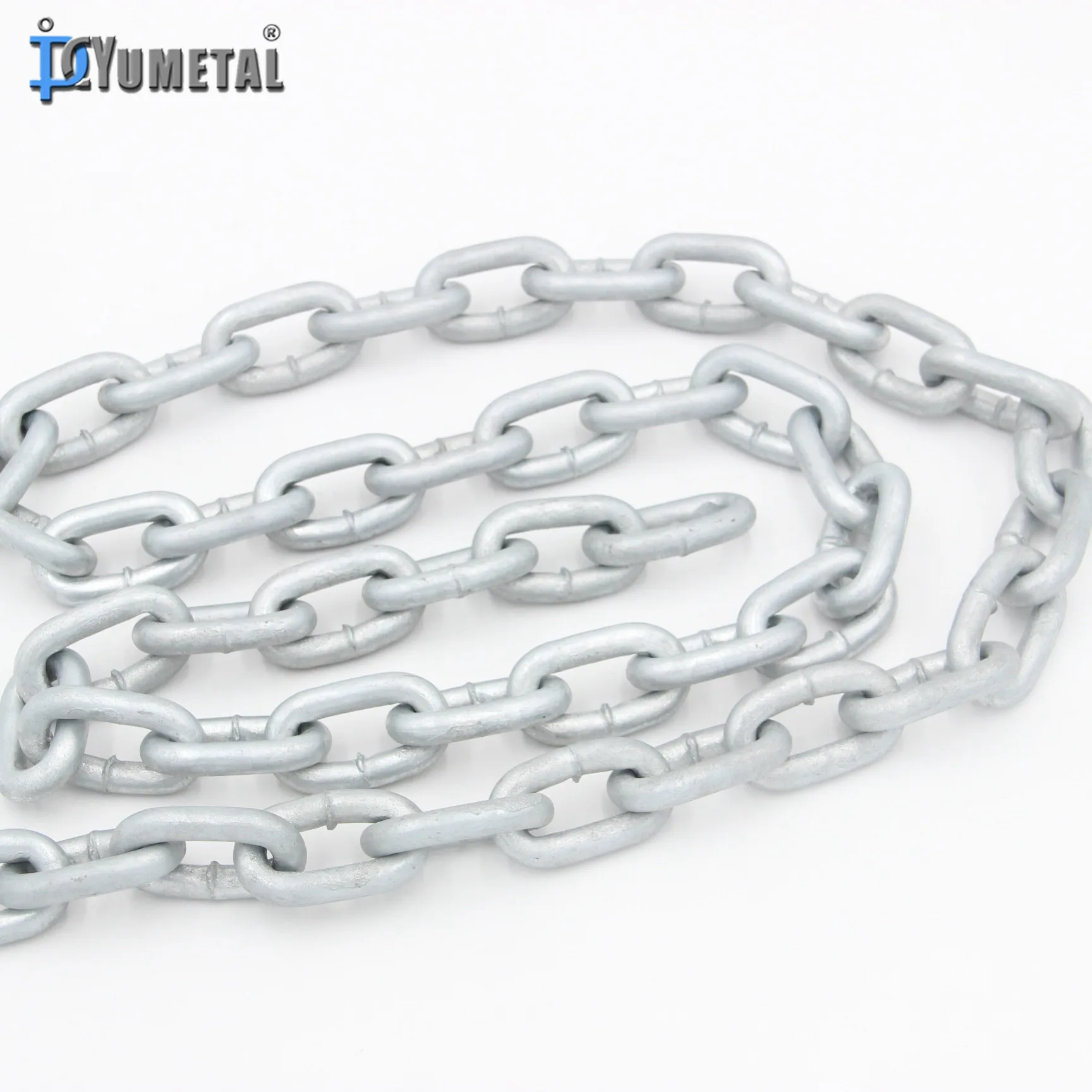

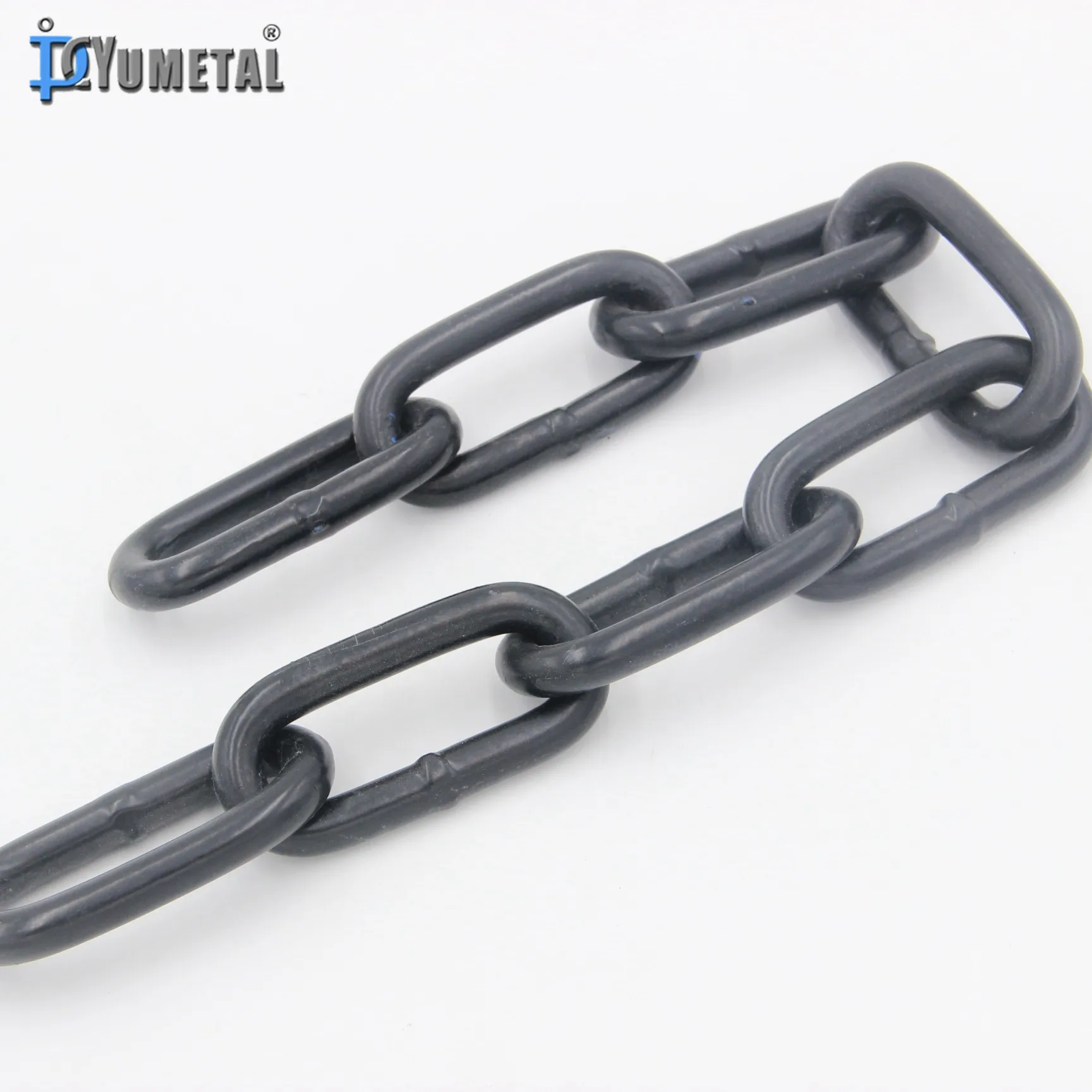

Proof Coil Chain High Test Chain ASTM80(G43) Transport Chain ASTM80(G70)
| Art No. | Normal Size | Min Breaking Load | Inside Length (max) | Inside Width(min) | ||||
| inch | mm | kn | lb | mm | inch | mm | inch | |
| Proof Coil Chain ASTM80(G30) | ||||||||
| CH0101 | 1/8" | 4.0 | 7.56 | 1700 | 22.6 | 0.89 | 7.4 | 0.29 |
| CH0102 | 3/16" | 5.5 | 14.2 | 3200 | 24.1 | 0.95 | 10.2 | 0.40 |
| CH0103 | 1/4" | 7.1 | 23.6 | 5300 | 25.4 | 1.00 | 12.7 | 0.50 |
| CH0104 | 5/16" | 8.7 | 35.6 | 8000 | 27.9 | 1.10 | 12.7 | 0.50 |
| CH0105 | 3/8" | 10.3 | 49.8 | 11200 | 31.2 | 1.23 | 15.7 | 0.62 |
| CH0106 | 1/2" | 13.5 | 85.8 | 19300 | 38.9 | 1.53 | 20.3 | 0.80 |
| CH0107 | 5/8" | 16.7 | 131.6 | 29600 | 48.3 | 1.90 | 25.4 | 1.00 |
| CH0108 | 3/4" | 19.8 | 185.0 | 41600 | 54.6 | 2.15 | 28.4 | 1.12 |
| CH0109 | 7/8" | 23.0 | 249.0 | 56000 | 63.5 | 2.50 | 34.8 | 1.37 |
| CH0110 | 1" | 26.5 | 330.8 | 74400 | 69.9 | 2.75 | 38.1 | 1.50 |
| High Test Chain ASTM80(G43) | ||||||||
| CH0111 | 1/4" | 7.1 | 34.5 | 7750 | 21.8 | 0.86 | 10.2 | 0.40 |
| CH0112 | 5/16" | 8.7 | 51.6 | 11600 | 26.7 | 1.05 | 12.2 | 0.48 |
| CH0113 | 3/8" | 10.3 | 72.0 | 16200 | 30.3 | 1.19 | 14.7 | 0.58 |
| CH0114 | 1/2" | 13.5 | 122.7 | 27600 | 36.0 | 1.43 | 19.1 | 0.75 |
| Transport Chain ASTM80(G70) | ||||||||
| CH0115 | 1/4" | 7.1 | 56.0 | 12600 | 21.8 | 0.86 | 11.4 | 0.45 |
| CH0116 | 5/16" | 8.7 | 83.6 | 18800 | 25.6 | 1.01 | 11.7 | 0.46 |
| CH0117 | 3/8" | 10.3 | 117.4 | 26400 | 30.2 | 1.19 | 14.0 | 0.55 |
