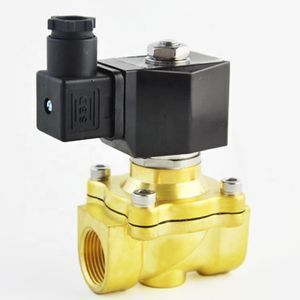

220vac 2 way 12 24 volt 12v dc 24v brass water solenoid valve 220v 230v ac 2W 1 inch

Supplier: Hangzhou Darhor Technology Co., Limited
Region: Zhejiang, China
Contact: Mr andy dudu
Price: $5.90 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Pressure:	Medium Pressure;	Standard or Nonstandard:	Standard;
Packaging Detail:	best sales 2 way 12 volt 12v dc 24v brass solenoid valve in wooden case with polyfoam inside;	Place of Origin:	Zhejiang China;
Seal:	NBR, EPDM, PTFE or VITON;	Material:	Plastic;
Model Number:	2W51;	Media:	Water;
Application:	General;	Structure:	Diaphragm;
Payment Terms:	L/C,T/T,Western Union;	Temperature of Media:	Normal Temperature;
Port:	Shanghai;	Type:	Two-position Two-way solenoid valve;
Brand Name:	Darhor;	Production leadtime:	7~15 days after payment finished;
Warranty period:	one year;	keyword:	best sales 2 way 12 volt 12v dc 24v brass solenoid valve;
Sample leadtime:	2~3 days;	Power:	Solenoid;
Port Size:	3/8",1/2",3/4",1",11/2",2";	Working temperature:	-50~120;
Supply Ability:	1000 Piece/Pieces per Week;	Certificate:	CE,ROHS,TUV,ISO;

Product Description

Characteristic:best sales 2 way 12 volt 12v dc 24v brass solenoid valve

1.Direct lifting diaphragm construction;
2.Open from zero bar for low pressure system use;
3.High frequency of flying lead coil. plastic solenoid valve plastic solenoid valve plastic solenoid valve

Material:

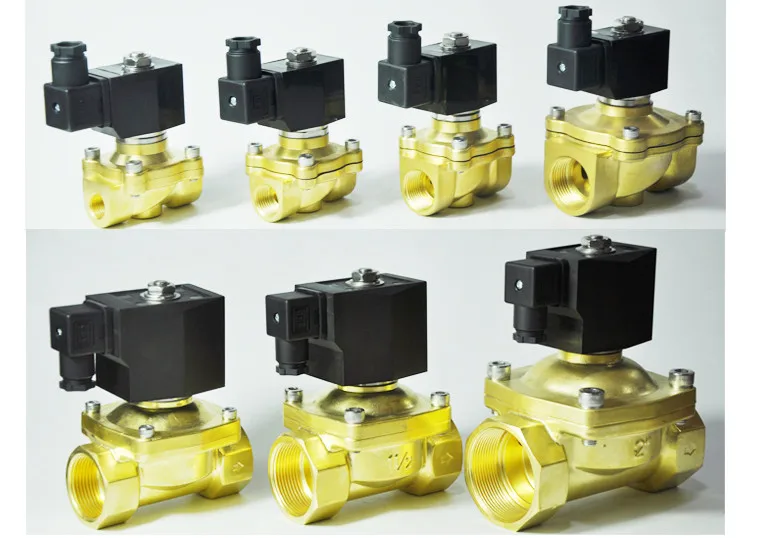

Body-Brass, Stainless steel or PA66(Nylon)
Seal- NBR, EPDM or VITON
Armature Tube-Stainless Steel 304
Plunger- Stainless Steel 430F

Stop- Stainless Steel 430F
Springs- SS304
Shading Rings- Copper

Medium:	Air, Gas, Water, Light oil≤20CTS, etc.
Temperature:	NBR Seal:-10℃ to 80℃; EPDM Seal: - 10℃ to 120℃; VITON Seal: -10℃ to 150℃
Pressure:	0-1.0 MPa

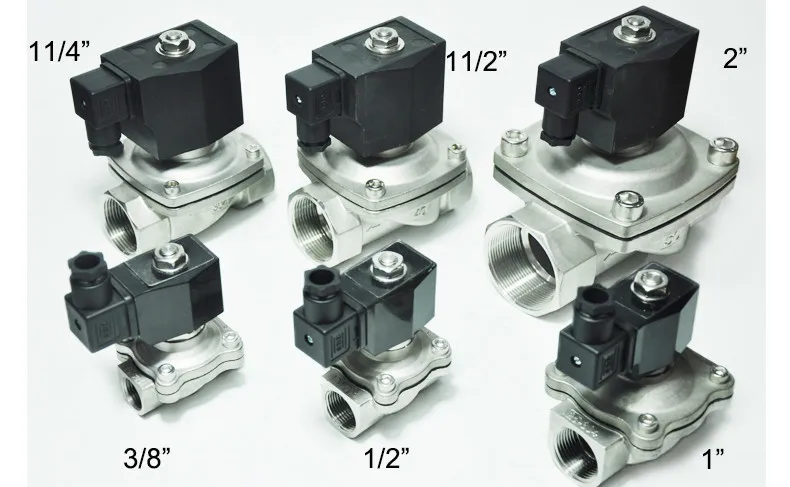

Port Size:	1/8'',1/4'', 3/8", 1/2", 3/4", 1", 11/4", 11/2", 2"
Port Thread:	NPT, BSP, G, Flange
Orifice(mm):	2.5, 6, 10, 12, 15, 20, 25, 32, 40, 50
Voltage:	DC - 6V,12V,24V; AC - 12V,24V,120V,240V/60Hz'110V,220V/50Hz; Tolerance:+/-10%
Coils:	410 Coil,26VA(AC),18W(DC); IP65, 100%ED

Specification

2W51 Normally closed, with coil 410,DIN
Valve body	Port size	Orifice	Cv	Min pressure(Mpa)	Max pressure(Mpa)		Seals material	Body material	Coil
					AC(22VA)	DC(17W)
2W5115XXX	1/2"	15	4.8	0.0	0.7	0.7	NBR	PA66 (Nylon)	410
2W5120XXX	3/4"	20	7.6	0.0	0.7	0.7			410
2W5125XXX	1"	25	12	0.0	0.7	0.7			410
