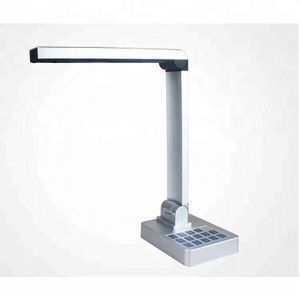

8MP Overhead A4 Document Camera Projector VGA Visualizer

Supplier: Shenzhen Yuxi Smart Electronic Limited
Region: Guangdong, China
Contact: Ms Dora Chen
Price: $65.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

VGA:	VGA Out: 2, VGA in: 1;	Effective Area:	A4;
Brand Name:	Neutral;	Single package size:	49X10X20 cm;
Image Sensor:	8 Mega pixels CMOS;	Product name:	Overhead Projector Visualizer;
OCR function:	supported multi-language OCR;	Place of Origin:	Guangdong China;
USB Port:	USB2.0*1;	HDM:	Yes;
Model Number:	WS-G800HD;	Digital Imaging Functions:	Title screen, Rotate, Negatives, Freeze, Split, Mirror, Black, Text;
Frame Rate:	15 mfps @3264*2448 30 mfps @1080P;	Powered Zoom:	5X Optical Zoom, 4X Digital Zoom;
Single gross weight:	5 KG;	Selling Units:	Single item;

Product Description

What Does A Document Camera / Visualiser Do?

A Visualiser is an extremely flexible teaching and presentation tool allowing presenters, teachers or students to display objects onto an interactive whiteboard, computer or LED touch screen.

This means 3D objects, books, worksheets, maps and text can be viewed by a large audience without the need to be copied and distributed.

Features such as mirror, rotate, split screen, black and white, positive / negative, image freeze and title grab allow you to manipulate objects or text live on screen without affecting the original source.

What's the Main Advantages?

Our Visual Presenter’s Main Features include:

1. 20X Zoom (5x optical, 4x digital)

2. Three-stage LED light (Five-stage optional)

3. Video Freeze,Negative,Rotate,Auto focus,Text

4. With microphone, synchronous voice record

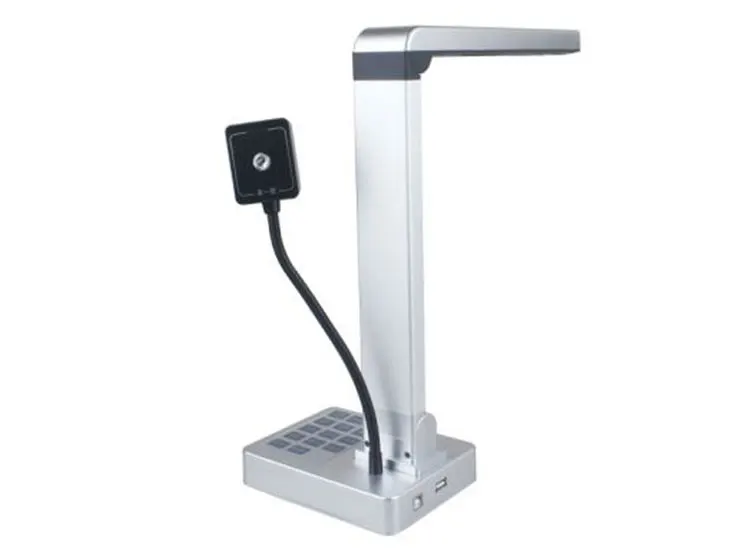

5. Could Integrate the Vice Camera for Interactive Teaching,Training, Visual Presentation.

What's the Specifications?

Camera
Image Sensor	1/4" HD CMOS
Main Camera	8,000,000 Pixels ( 3264x2448 )
Frame Rate	15 mfps @3264*2448 30 mfps @1080P
Zoom	20X (5x optical, 4x digital)
SPECIFICATION
Ports	USB2.0 x2
HDM Out	Yes
VGA Out	x2
VGA In	X1
Scan Speed	1 second
Video Freeze	Yes
Effective Area	A3
Shetter Speed	1 Second
Freeze	Yes
Zooming	Mouse wheel zooming
	Software
Image Viewing	Color/BW, Mirror, 90 Degree Rotation uo to 270 Degrees, Negative (Optional)
Image Processing	90 Degree Rotation, Mark, Cut, PDF Transfering
Photo Shooting	Yes (Resolution Adjustable, 9-images Previewing
Video Recording	Yes (WMV,AVI)
Continuous Frame	Yes (Frame Adjustable)
Audio / Video Recording	Optional
Auto Adjustable	Brightness, Contrast, sturation, Sharpness, Gain
Image Capture	Supported Quickly Capture the image
PDF Format	Yes
Scan	Support single and multi page scan
OCR function	Supported multi-language OCR
Power	USB Power
Scan Speed	10 scans / sec
Scan Landscape Area	A4, A5, A3
Support OS	WIN7(64BIT),WIN8,WINXP,MAC,ANDROID
Auxiliary Light	LED Light
Others
Software Functions	Document camera, Whiteboard mark, PDF transfering
Power	DC 5V
W xD xH	Set up: 265150445MM, Folded: 15075445mm
Net Weight	1.2kgs
Carton Size	500960180mm
