90DA Series High Precision Cam Indexer, Rotary Indexing tables,cam index precision up to15sec
- 670.00 piece
| Supply Ability: | 1000 Pair/Pairs per Month; | Port: | shanghai; |
| Brand Name: | cheng chang; | Place of Origin: | Shanghai China; |
| Packaging Detail: | Wooden box or carton; | Payment Terms: | T/T,Western Union,MoneyGram; |

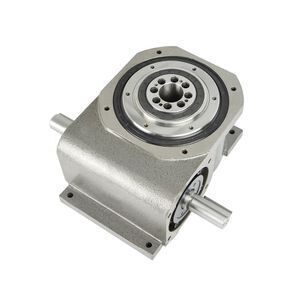

90DA Series Cam Indexer
Product Description:
<
Brand:chengchang | Product certification:ISO9001 | Processing customization:Yes |
Disk diameter:0-700mm | Bearing weight:0-60KG | Mainly applied to: Automaic assembly machine, printing press |
Location and segmentation of equal parts:2,3,4,5,6,8,10,12,16,20,24,30,32,36,40,48 | ||
Driving angle:90°,120°,150°‘180°,210°,240°,270°,300° | ||
Cam curve: deformation curve, deformation sine curve and deformation velocity curve. | ||
Rotation direction of cam: left and right. | ||
Standard accuracy:±30 seconds, customizable±15 seconds high precision.
Weight:28kg torque limiter (TL): 250 lubricant:90-140#
Matching motor: 0.37KW motor speed at 1400 or 1450.
Advantage:
One. Durability
1. cam processing technology is carburizing and grinding, the hardened layer is about 5mm.
2. surface spray paint is diaphragm type dry antirust oil.
3. the internal bearing is imported from Japan, NSK/NTN.
Two. Price concessions. In the same quality, our price is the most favorable.
Three. Large quantities of stock.
Parameter table:
All Allowable radial load of output shaft (C1): 500kgf | Max.repetitive torque on input shaft(C5): 25kgf-m |
All Allowable axial load of output shaft (C2): 210kgf | CD² on input shaft(Note1): 2.5*10-3kgf-m² |
All Allowable torque of output shaft (Ts): Reference torque table | Indexing accuracy: ±30 Sec. |
All Allowable radial load of intake shaft (C3): 260 kgf | Weight:28 kg |
Ma Max.repetitive bending force on input shaft (C4): 260 kgf |
|
Note1:CD² on input shaft is value dwell ragne . Note2:Value of c1 to c5 are those obtained for safety factor=2.

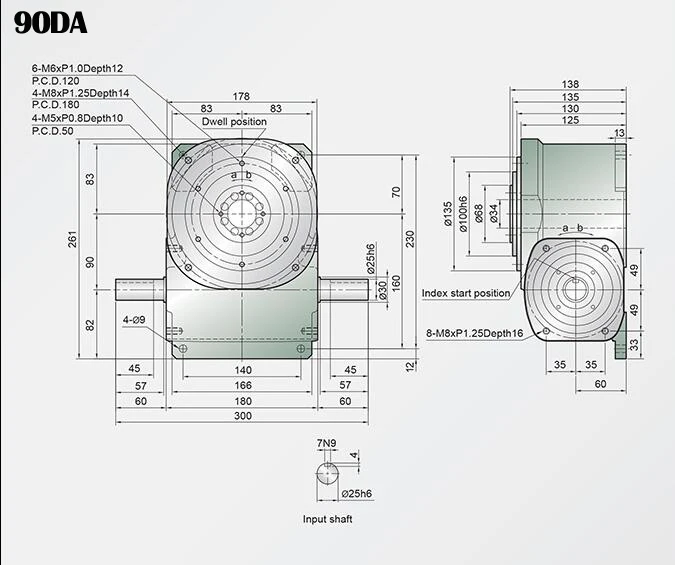

Size diagram:
