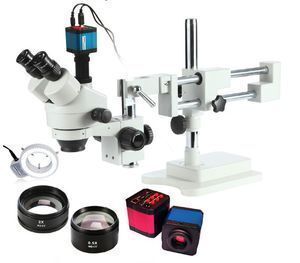

3.5X-90X Trinocular Stereo Zoom Optical Camera Microscope with LED Light

Specifications of Industrial Microscope

Eyepieces:Wide field high point eyepiece WF10X20mm

View head:  trinocular head, 45° inclined, 360°rotatable, zoom objective 0.7X-4.5X. inter-pupillary range 54~76mm, both two tube diaper adjustment(±5)
Objective lens: 0.5X, 2.0X for option.
Magnification: Total 3.5X—180X zoom range.
Working Distance:
Standard is 100mm,its can be expand 30mm to 265mm use with the auxiliary lens.
Stand: Double-Arm Boom Stand
Illuminator:  separate led light be used.
1/1 CTV CCD Adaptor.

Focus: Simul focus (without switch bar)

Features of LED Light

• 144 Bulbs Microscope LED Ring Light:
• 144 bright white LED bulbs
• 100,000 hours of life
• Intense and focused shadow-free illumination
• The brightness of 0-100%Adjustable,high brightness
• Variable intensity control
• Power input: 100-240V, 50-60HZ
• Suit for the dia of the lens: 30mm-63mm

Details of Camera

• Image sensor:14 megapixel Panasonic sensor 1/2.3 inch
• Model: Camera with HDMI USB2.0 two output
• Image format: JPG
• Image resolution: 4320*3240 (for TF card) 1280 *720 @ 30FPS(for TF card)
• Video format: MOV(for TF card)
• Video recorder:  1280 *720 @ 30FPS  (for TF Card)
• USB Video resolution: 1280 *720 @ 30FPS
• White Balance: Auto
• Morror: Left/right,Up/Down
• Freeze: Support
• OSD: English/Chinese
• Line: different color,4 horizontal line , 4 vertical line,any positions
