Knitted material CNC oscillating knife Cutting Machine with auto feeding system AKZ1610

Supplier: Jinan AccTek Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Andy Liu
Price: $10600.00 /set
Min. Order: 1 set

Click here to contact

Product details

Drivers:	Delta servo motor and drivers/optional;	Security configuration:	High sensitive infrared induction;
Condition:	New;	Max cutting speed:	1200mm/s;
Weight:	1000kg;	Certification:	CE FDA;
Dimension(LWH):	1600*1000mm /optional;	Automatic Grade:	Automatic;
Max cutting thickness:	60mm/optional;	Supply Ability:	50 Set/Sets per Week;
Port:	Qingdao port;	File format support:	DXF/PLT/BMP/GIF/JPGE/CER/DMG/PWJ etc.;
Application:	Textile cutting;	Type:	Other;
Warranty:	1 Year;	Name:	oscillating knife Cutting Machine with auto feeding system;
Brand Name:	ACCTEK;	Voltage:	3 phase 380V;
Place of Origin:	Shandong China;	Power(W):	11kw;
Packaging Detail:	standard export packaging/plywood box;	Vacuum pump power:	9kw;
Payment Terms:	L/C,T/T,Western Union,MoneyGram,Trade assurace;	Production Capacity:	100%;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	After-sales Service Provided:	Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;
Features:	oscillating knife;	Transmission:	XY gear and rack transmission Z axis ball screw transmission;
Table:	aviation aluminum vacuum table with felt;

ACCTEK Knitted material CNC oscillating knife Cutting Machine with auto feeding system AKZ1610

Work video on YOUTUBE:https://www.youtube.com/watch?v=nYEcINukNS8

Whatsapp: +8615169022087

Wechat:429806054

Product Description

Features

#Cutting by knife not laser, no air pollution , no burntedge, cutting speed is 5-8 times faster than co2 laser machine.

#Imported PMI square linear guide and servo motor ensure high precison and fast cutting speed.

#High performance is guaranteed with the integrated circuit plate.

#The application of an USD/Ethernet port makes the cutting plotters fast and convenient

#Easy opeate.This cutting machine was designed easy to install, set-up and operate.

#Special safety sensory device meets the European standard.

#The platform detection device regulates the knife pressure automatically,enabling a level platform and perfect cutting.

Oscillating knife cutting machine professional for leather/rubber/ fabric/textile neoprene MTP / textile made in italy / Nido d'ape nero Black honeycomb textile / COLIBRI plastic textile / sky pleather/ PVC/memory foam / gray white polyurethane foam etc.

Parameters

Model	AKZ1515/1610/1625/optional
Max. Cutting size	15001500mm/16001000mm/2500*1600mm/optional
Power	11KW
Multi-functional Tool Head	Straight knife/round knife/pneumatic knife/V-cut knife/roller identation/marker pen/optional
Security configuration	High sensitive infrared induction
Travelling speed	Max. 1200mm/s
Cutting speed	Max. 800mm/s (Depending on different material type)
Movement speed	1200mm/s Maximum 1200mm/s
Cutting speed	Maximum 800mm/s (set according to different cutting materials)
Cutting material	Corrugated paper, PVC expansion sheet, kt sheet, thick foam, grey board, paperboard, car sticker, adhesive Sticker, etc.
Cutting thickness	Maximum 60mm (set according to different materials)
Material fixing method	High power vacuum absorption and intellectual partition
Repeated positioning accuracy	Maximum 0.1mm
Mechanical Precision	Maximum 0.1mm
Drive system	Steel wire synchronous belt , AC servo motor, linear guideway
Control system	digit RISC core cpu + large scale programmable logic array
Operating mode	operation platform + data output control software (operation platform can be divided into connected and separated parts)
Display mode	Chinese and English liquid crystal touch screen
Data transmission method	Ethernet/USB port
Instruction system	HPGL compatible format
Buffer capacity	Standard 4GB

oscillating knife cutting machine parts:

#Cutting head with oscillating knife(straight knife)/ Trocen control system

#Aviation aluminum sheet vacuum table with felt, Rack and gear transmission system with dust proofing.

#Delta/japanese Fuji servo motor and drivers, 7.5kw/9.0kw air vacuum pump,High sensitive infrared induction security device.

#Auto feeding system: roller and pneumatic material clamping device

Optional parts:

#Round knife, milling spindle, roller identation

#V-cut knife, marker pen, punching hole device

#Straight blad and round blade, pneumatic knife with blade

#Automatic deviation-checking equipment

Other model:

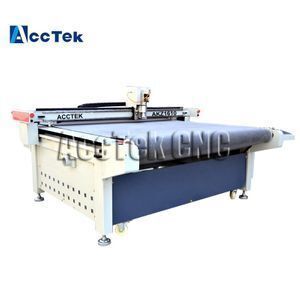

AKZ1610 oscillating knife cutting machine standard version

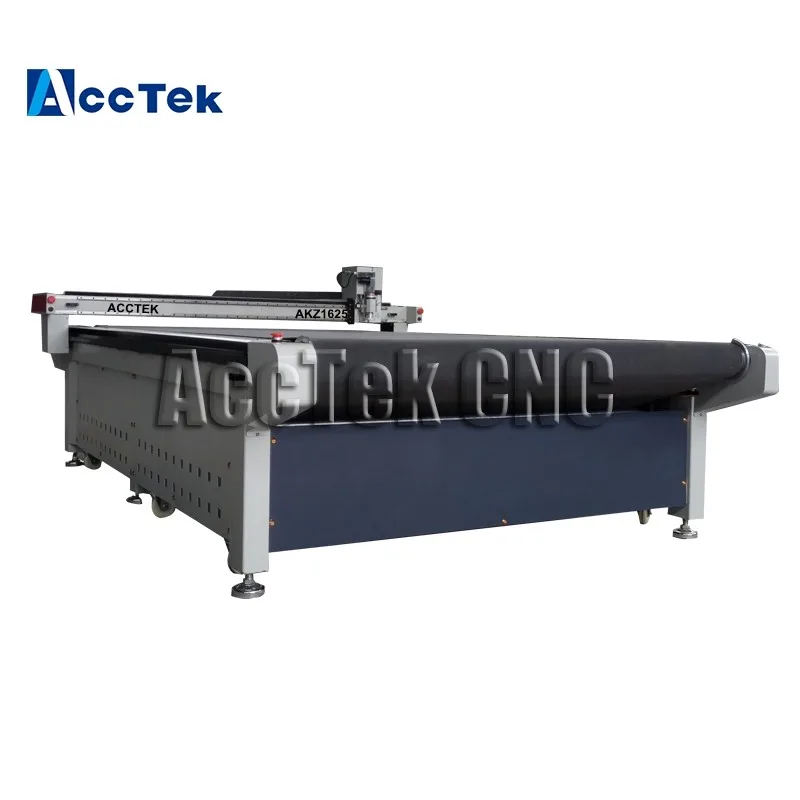

AKZ1625 oscillating knife cutting machine with auto feeding system for fabric textile cloth leather in roll

Application of ACCTEK oscillating knife cutting machine:

Leather, various garment flexible materials, KT board, Chevron board, honeycomb board, car stickers, adhesive, photo frame paper, gray board paper, corrugated paper, EPE foam, PVC board, acrylic sheet, thick foam, composite materials, etc. .

*Cutting function of oscillation tool:can cut many different materials (such as corrugated paper, cardboard, offset paper, grey board, rubber,honeycomb board, PP,PE,PVC, gasket, leather ,carpet and mat )
*Folding function: It can fold corrugated paper, card paper and offset board into perfect folding line.
*Function of dotted line: It is used to fold them after half cutting corrugated paper and grey card paper, and to cut dotted line.
*Positioning: positioning with cross red line positioning system.
*Drawing function with marker pen (optional)

It can draw various high precision drawing cutting materials: corrugated board, foam, PVC, styrene, Coroplast, Celtec, magnetic film, adhesive vinyl, leather, rubber, fabrics, high intensity reflective films, paper, cardboard, polystyrene, magnetic films, vinyl etc.
*Punching function: It can punch hole on the material, such as leather,carton, pvc, carpet and mat ,etc.(optional)

oscillating knife cutting machine samples:

Besides EVA foam, CUTCNC digital cutter machine can cut many types of foam, such as closed cell foam, rubber foam, foamex, foam core, KT board, EPE foam, polyethylene foam, PE foam, PVC foam, etc. It's widely used for packaging protection, advertising display, termal insulation, model & mock up making, puzzle and pattern cutting, etc.

Using cnc knife cutting technology, our digital cutter machine has no burning and totally environmently. It's equipped with plotting pen, oscillating cutting tool, creasing tool, and drag knife tool to meet customers' different requirements. The heavy duty drag knife tool is available for special materials of the sign making industry.

FAQ

Q1:I knew nothing about this machine,what kind of machine I should choose?

Very easy to choose, just tell us : 1. the work you want to do? 2. the maximum size of your materiaols, then we give you perfect solutions and suggestions.

Q2:When I got this machine,but I did not know how to use it,What should I do?

We will send video and english version manual with the machine,If you still have some doubts,we can talk by telephone or skype. Or even send our engineers oversea to help you.

Q3:If some problems happened to this machine during warranty period,what should I do?
We will supply free parts in machine warranty period if machine have some problem, While we also supply free after-service,so any doubts, just let us know, we will give you solutions.

Q4:What is the MOQ?

MOQ for our products is 1 set machine, we could send it to the nearest port to you.
