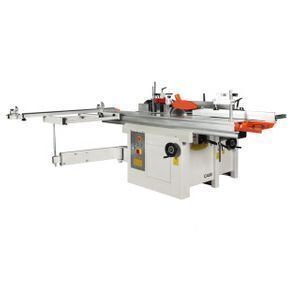

woodworking combined machine

Click here to contact

Product details

Place of Origin:	Shandong China;	Voltage:	380V 50HZ;
Certification:	CE;	After-sales Service Provided:	Engineers available to service machinery overseas;
Port:	Qingdao port, China;	Warranty:	1 Year;
Supply Ability:	10 Set/Sets per Month;	Packaging Detail:	Plastic film or Wooden Box;
Brand Name:	GODN;	Condition:	New;
After-sales Service Provided:	Field installation, commissioning and training;	Payment Terms:	L/C,T/T;

Woodworking Combined machine is your necessary mutifunction tools.

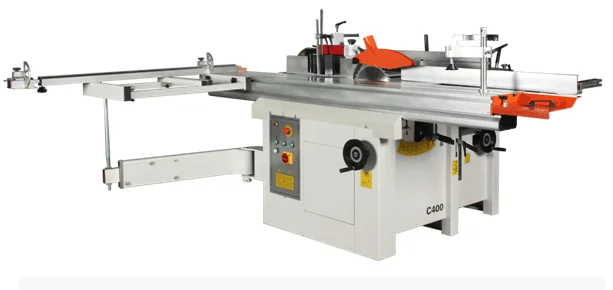

model	C400

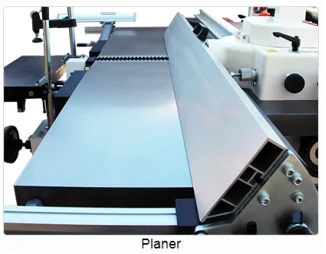

Planer
Working tables	400x1800mm
Cutter block diameter	70mm
Cutter block rotation speed	5700rpm
N. of knives	3n°
knives dimensions	400x20x3(400x25x3)mm
Max table adjustment	4mm

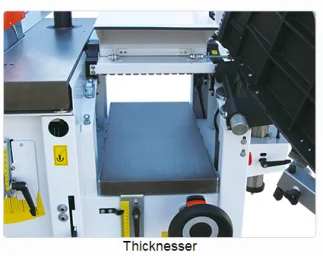

Thicknesser
Working table	400x760mm
Feed speed	7m/min
Max. working height	220mm
Min. working height	mm
Cutter block rotation speed	5700rpm
Max. cutting depth	4mm

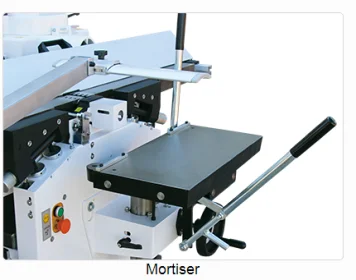

Mortiser
Working table	250x500mm
Longitudinal stroke	205mm
Trasversal stroke	95mm
Vertical stroke	90mm
Churck	16mm
Churck rotation speed	5700rpm

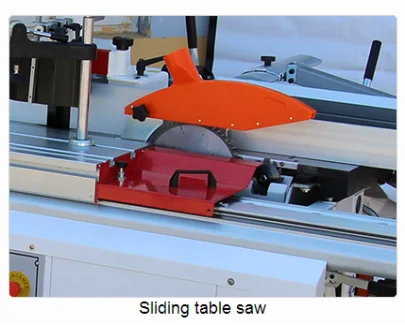

Circular saw
Working table	326x1112mm
Shaft rotation speed	4500rpm
Blade diameter	300mm
Blade bora diameter	30mm
Cutting height 90°	100mm
Max. distance between blade and fence	730mm
Blade inclination	45°
Max cutting height 45°	50mm
Shaft rotation speed engraver	7000rpm
Engraver blade diameter	90mm
Engraver blade bora diameter	22mm

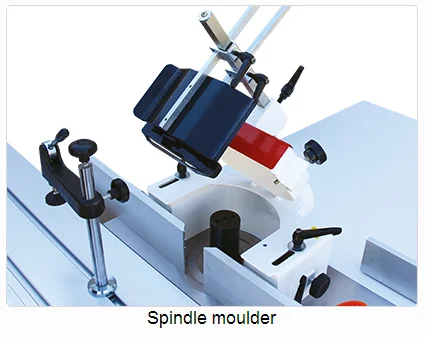

Shaper
Working tables	326x1112mm
Shaft rotation speeds	2000/3100/4400/7000rpm
Standard shaft diameter	30mm
Spindle lenght	105mm
Shaft vertical stroke	115mm
Max. tool diameter	180mm
Max. tenoning depth	65mm
Tenoning carriage
Carriage dimensions	1800x315mm
Carriage stroke	1800/2200mm
Standard accessories
Table extensions with swinging arms	860x600mm
3-phase motor power	4,0 HP- 3,0 KW
Weight	645KGS
