2MTH Auto Mortar Mixer Dry Mortar Production Line

Product details
Supply Ability:50 Set/Sets per Month;Weight:2600;
Primary Feeder Dimensions:165X3200mm;Applicable Industries:Building Material Shops,Manufacturing Plant,Construction works ,Energy & Mining;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Application:Dry Mortar Production;
Capacity:2t/batch;name:Dry mortar mixer production line;
Packaging Detail:Dry mortar plant packed in wooden case 2MTH Auto Mortar Mixer Dry Mortar Production Line;Key Selling Points:Energy saving;
Warranty:1 Year;After-sales Service Provided:Engineers available to service machinery overseas;
Secondary Feeder Dimensions:1600X3000mm;Dimension(L*W*H):3.8x1.2x1.6m;
Storage Bin Dimensions:1600X2850mm;Power(W):7.5;
Product name:Mortar Production Line;Port:Qingdao/Shanghai/Tianjin;
Brand Name:Gofine;Application:mortar mixing for building;
Place of Origin:Henan China;After-sales Service Provided:Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;
Voltage:220V/380V;Primary Feeder Power:3KW;
Condition:New;Material:Dry Mortar;

2MTH Auto Mortar Mixer Dry Mortar Production Line



Product Description

Introduction:

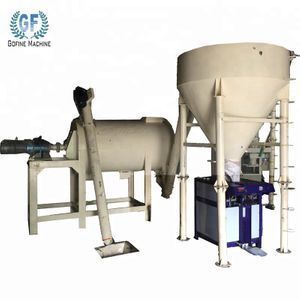

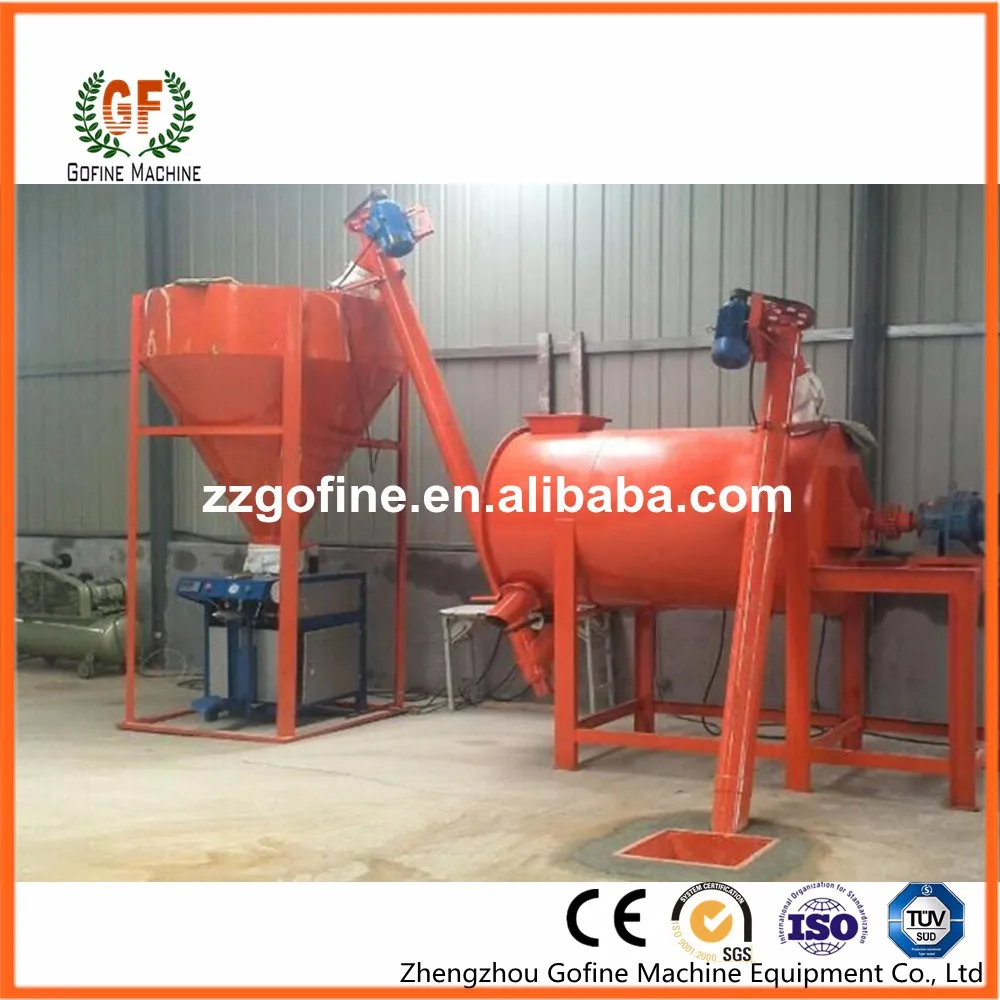

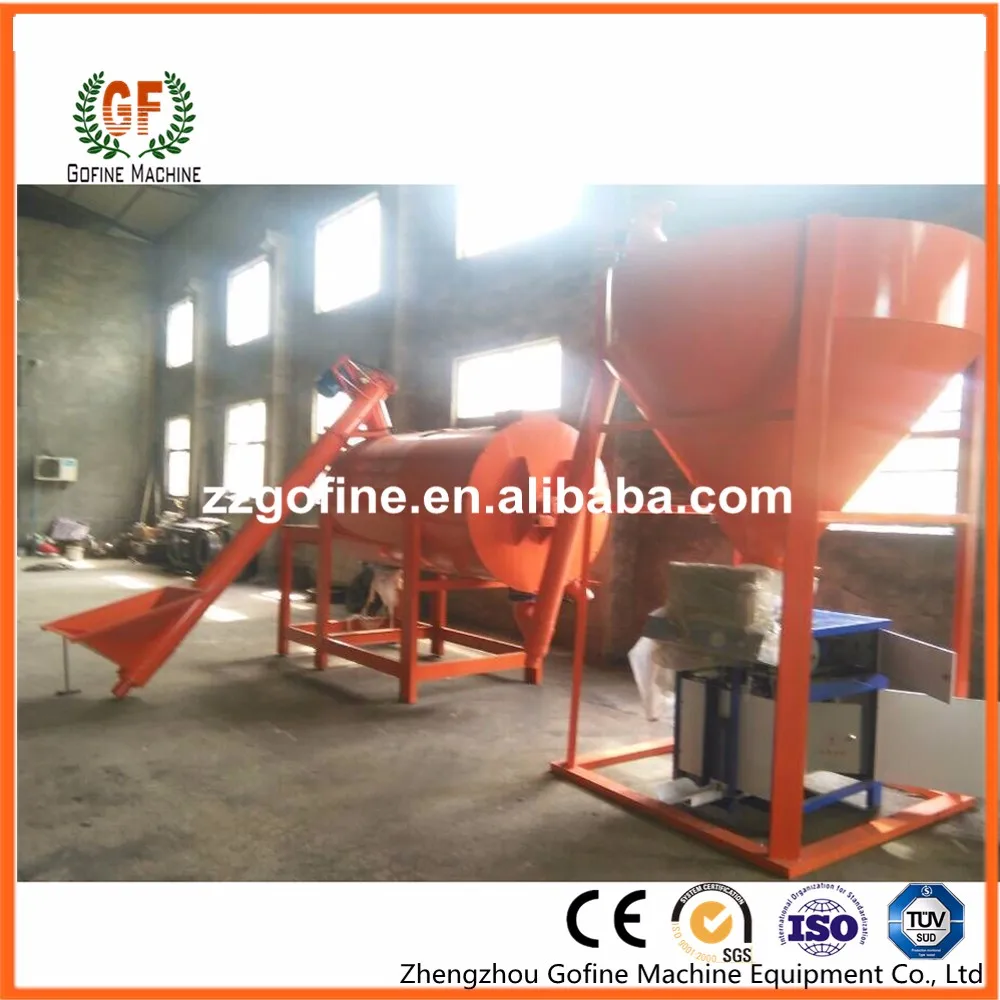

1. AUTO dry mortar production line

2. It is designed to product exterior wall thermal insulation dry mortar, putty etc.

3. It includes a primary screw feeder, sand or cement silo, auto batching system, sand dryer, main mixing machine, secondary screw feeder, storage bin, automatic packing machine, other connecting devices.



Technological Process:



Batching to lifting to mixing to weighing and packing to automatic palletizing

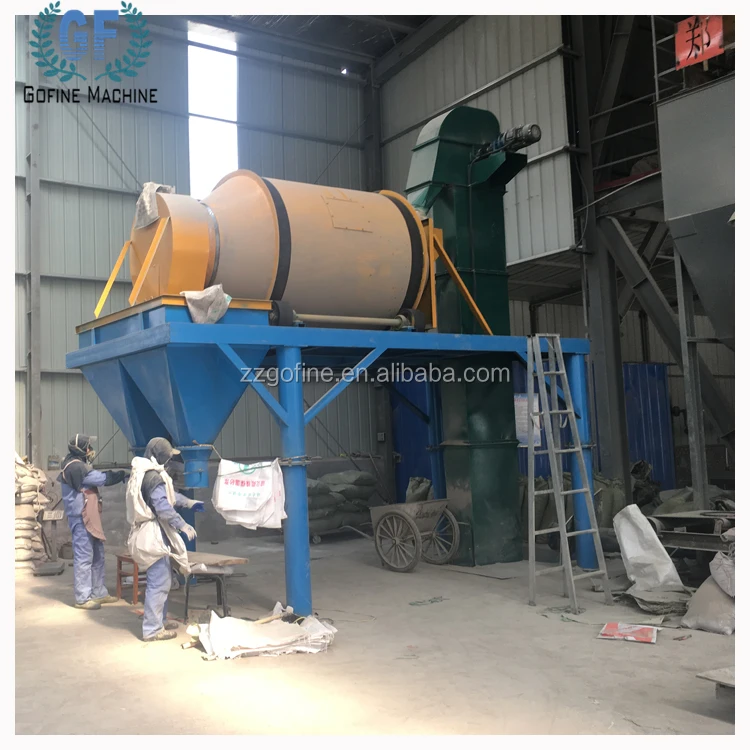

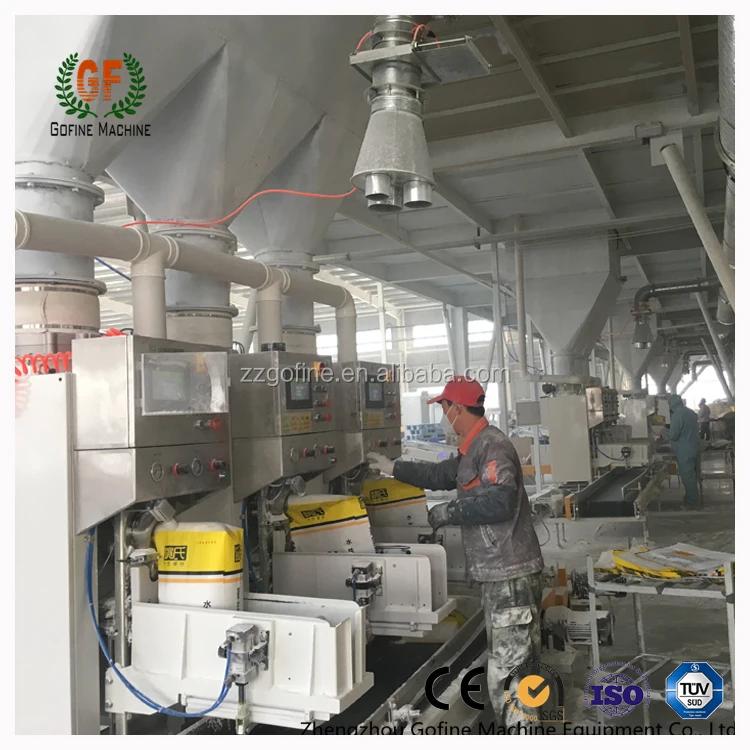

First the sand will be dried and then deliver to the silo by bucket lift. And cement or other ingredients will be stored into the silo via pneumatic conveying system. The ingredients product will be auto batching and then deliver to the mixer. After mixing, the materials will be packed or stored into the silo by bulk truck delivery, other bags will be transported to pallet via auto pallet system.

Application:

It is widely used for putty powder, dry mortar, bonding mortar, plaster mortar, masonry mortar, mortar floor, special mortar, powder coating, etc.



Parameters:

Model


  Mixing Motor   Mixing Drum

Capacity

(m³/h)




Feeding Motor Power(kw)



Power

(kw)

Reducer Model

Dimension

(mm)

Thickness

(mm)

Volume

(m³)



GFL-300

 4 \

Φ680×1260

 5 0.46 5.5-7.2 \


GFL-500

 5.5

ZQ250



Φ840×1680

 5 0.83 10-16 3


GFL-1000

 7.5

ZQ350



Φ1050×1900

 5 1.65 20-33 3


GFL-1500

 11

ZQ400



Φ1150×2000

 5 2.28 28-45 4


GFL-2000

 11

ZQ400



Φ1200×2200

 5 2.48 30-50 4


GFL-3000

 15

ZQ500



Φ1400×2520

 5 4 48-80 4


GFL-5000

 30

ZQ650

 \ 5 \ \ \





Details:
