automatic welding equipment/automatic weldingmachine/TIG welding heads column and boom for seamwelding

Supplier: Luoyang Bota Heavy Industry Machinery Equipment Co., Ltd.
Region: Henan, China
Contact: Mr BOTA WELD
Price: $4499.00 /set
Min. Order: 1 set

Click here to contact

Product details

Type:	Other;	Dimensions:	4500x1940x1110(mm);
After-sales Service Provided:	Engineers available to service machinery overseas;	Usage:	automatic welding equipment;
Usage:	Longitudinal Seam Welder;	Delivery Detail:	25 days;
Model Number:	BCZZ 4x4;	Feature:	High Efficiency;
Port:	Qingdao, Shanghai, Tianjin, Shenzhen;	Current:	20A;
Color:	Blue;	Voltage:	380V;
Level:	Semi-auto Machine;	Function:	tank, pipe, vessel, boiler welding;
Product name:	automatic welding equipment/TIG welding heads column and boom;	Supply Ability:	20 Set/Sets per Month;
Name:	automatic welding equipment/TIG welding heads column and boom;	Place of Origin:	Henan China;
Warranty:	1 year;	Weight:	2000kg;
Rated Duty Cycle:	95%;	Rated Capacity:	5300W;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,automatic welding equipment/automatic weldingmachine/TIG welding;	Application:	automatic welding equipment/TIG welding heads column and boom;
Brand Name:	Bota;	Packaging Detail:	plastic wrapped with wooden plate support for automatic welding equipment/automatic weldingmachine/TIG welding heads column and boom for seamwelding;
Certification:	CE ISO;	Rated Capacity:	4800W;

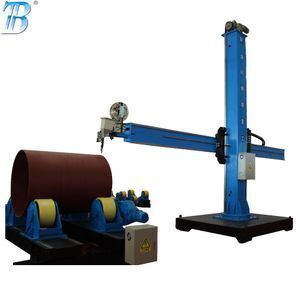

Automatic welding equipment/automatic weldingmachine/TIG welding heads column and boom for seam welding

Product description:

According to boom end load capacity, our welding column and boom manipulator is divided into the light duty (BCZQ) type, heavy duty (BCZZ) type, Manned type (BCZR):

Model availabe: fixed type, rotation type, travelling type,
fixed &rotation type; rotation with travelling type;

Main features:
It has the interfaces for integrating control with welding positioner and/or welding turning roll, which can realized the automatic welding center.

Technical data:

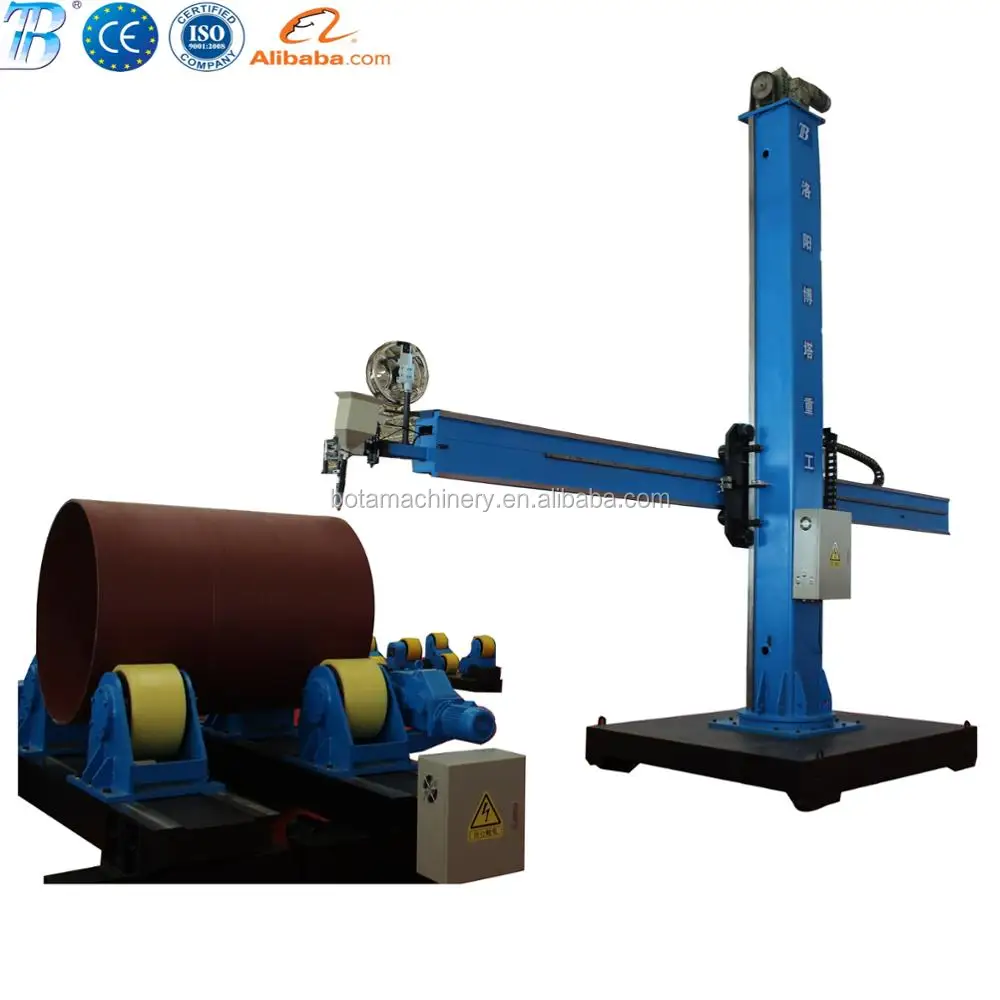

Heavy-duty Welding Column & Boom
Model		BCZZ 4x4	BCZZ 5x5	BCZZ 6x6	BCZZ 7x7	BCZZ 8x8
Lifting stroke(mm)		4000	5000	6000	7000	8000
Retracting stroke(mm)		4000	5000	6000	7000	8000
Lifting speed(mm/min)		1000
Retracting speed(mm/min)		100-1000
Minimum distance between boom and track surface(mm)		1100(Movable with rotation)		1118(Movable with rotation)
		950(stationary with rotation)		1170(stationary with rotation)
Boom end maximum loading(kg)		200		300
Column revolving	Angle(°)	±180°
	Speed(rpm)	0.36 rpm or Manual rotation
Trolley traveling		2000			800
Inner span of trolley rail (mm)		1750	2000		2230
Above are the standard parameter also we can design according to the customer requirement

China Domestic famous supplier, high quality steel structure with good rigidy ,complete set bending forming finish, ensure stable and high precision.

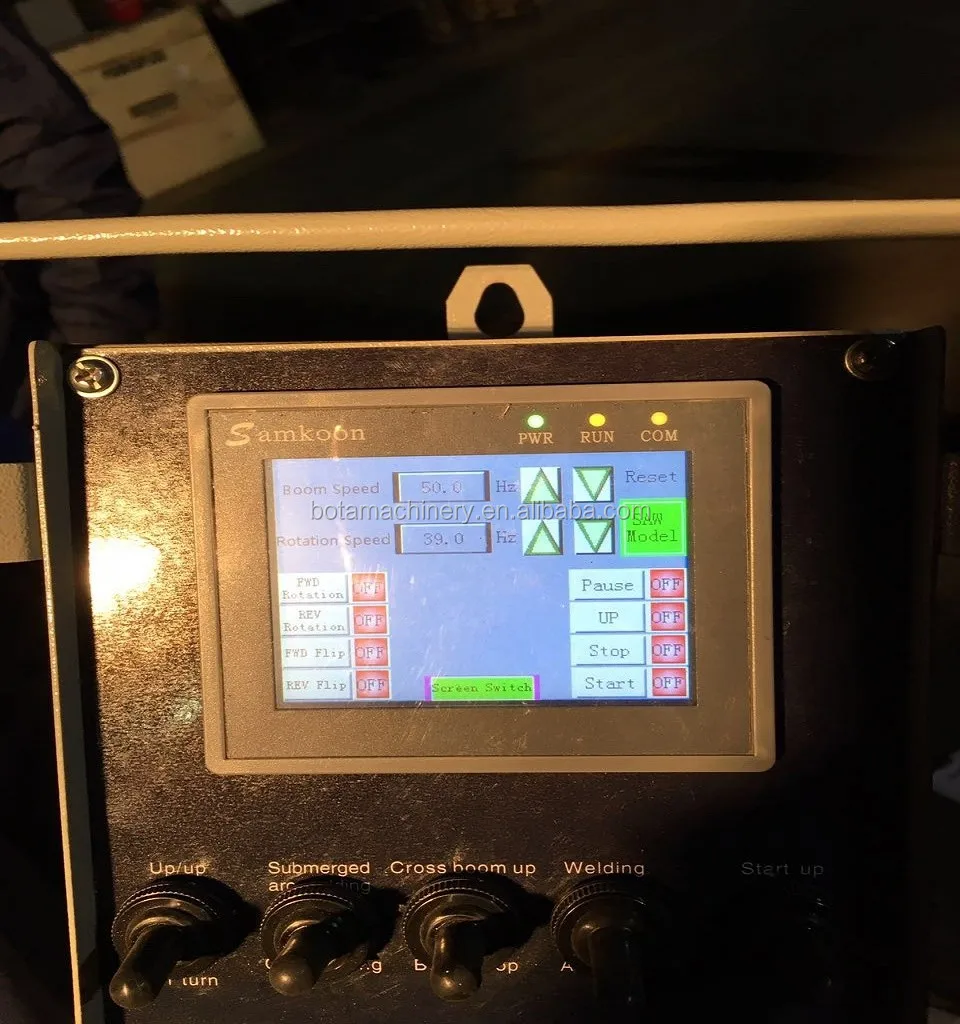

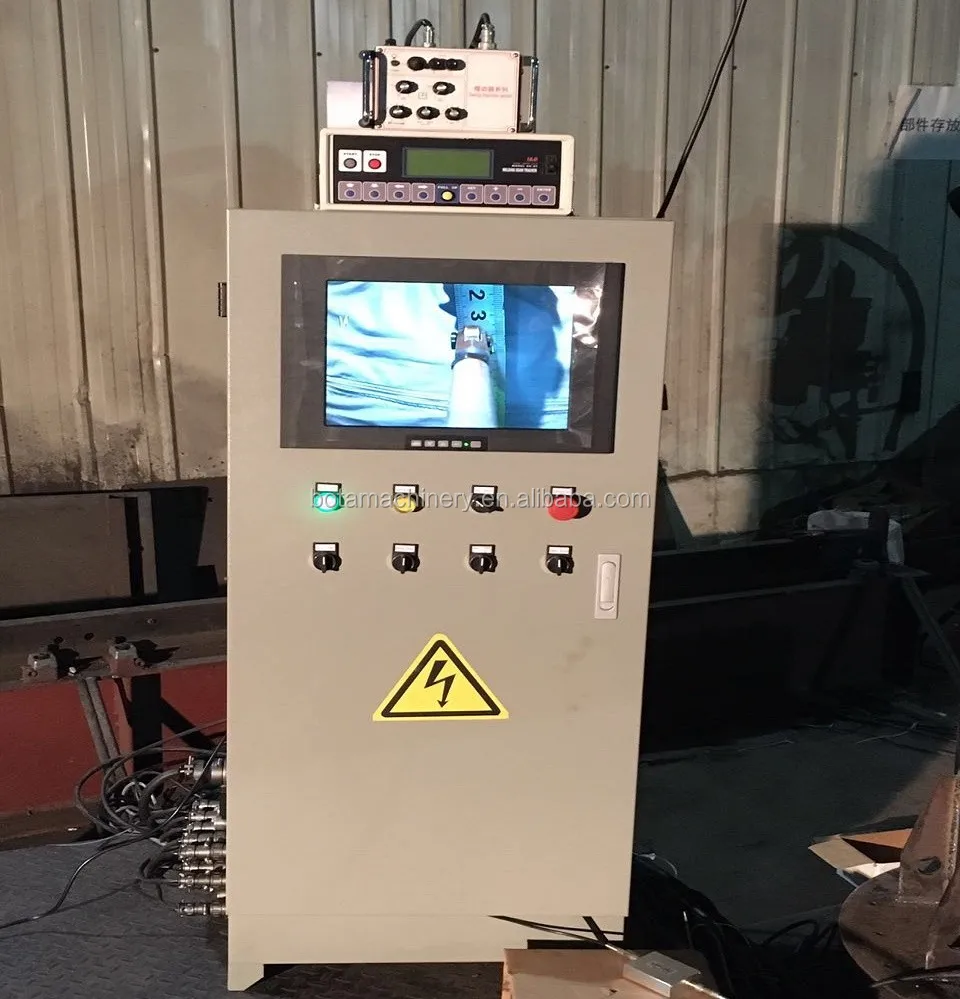

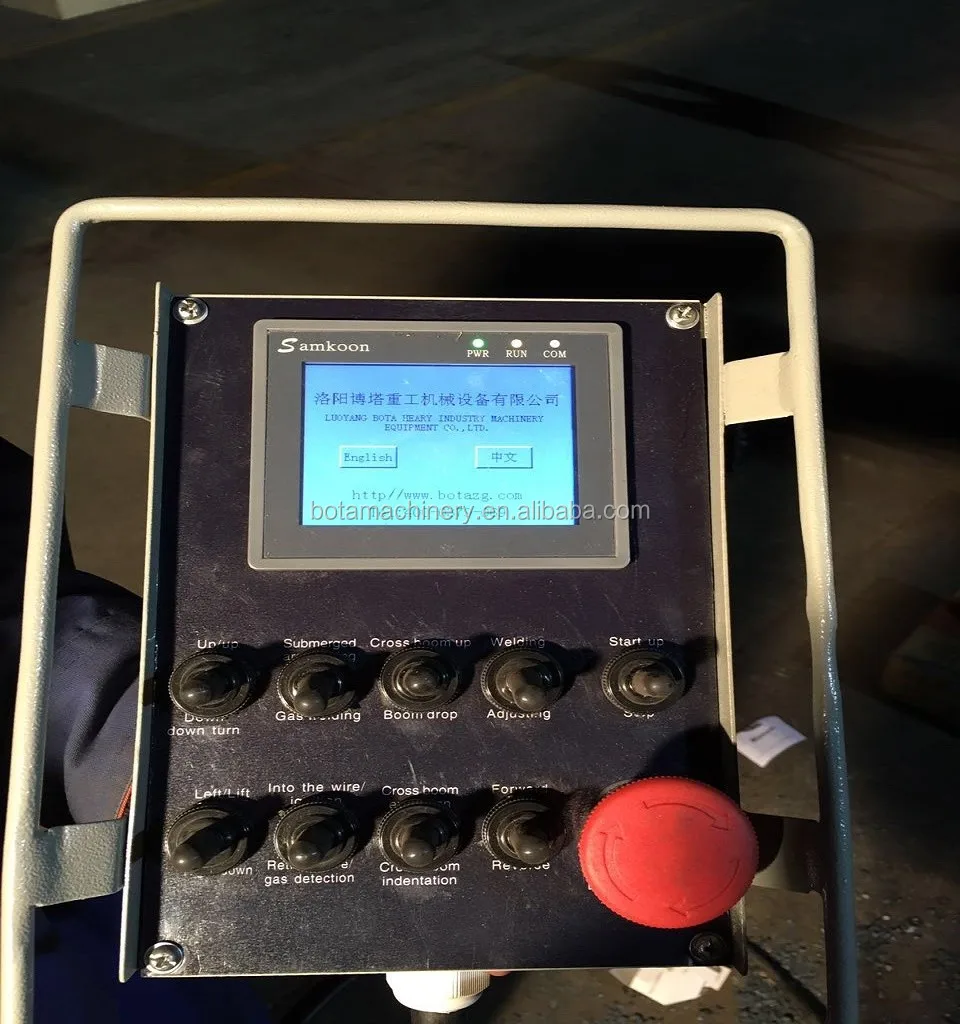

Bota design and manufacturing, LCD scree to show the welding work situation very clear, easy to control, safe.

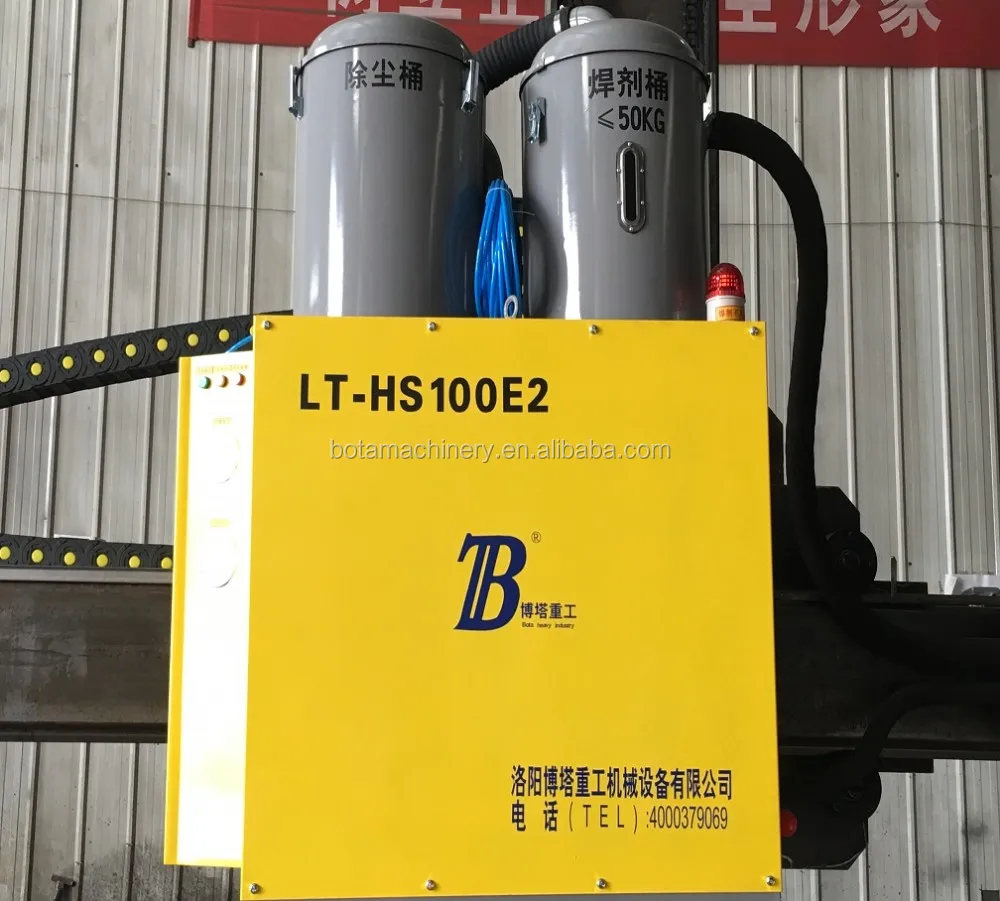

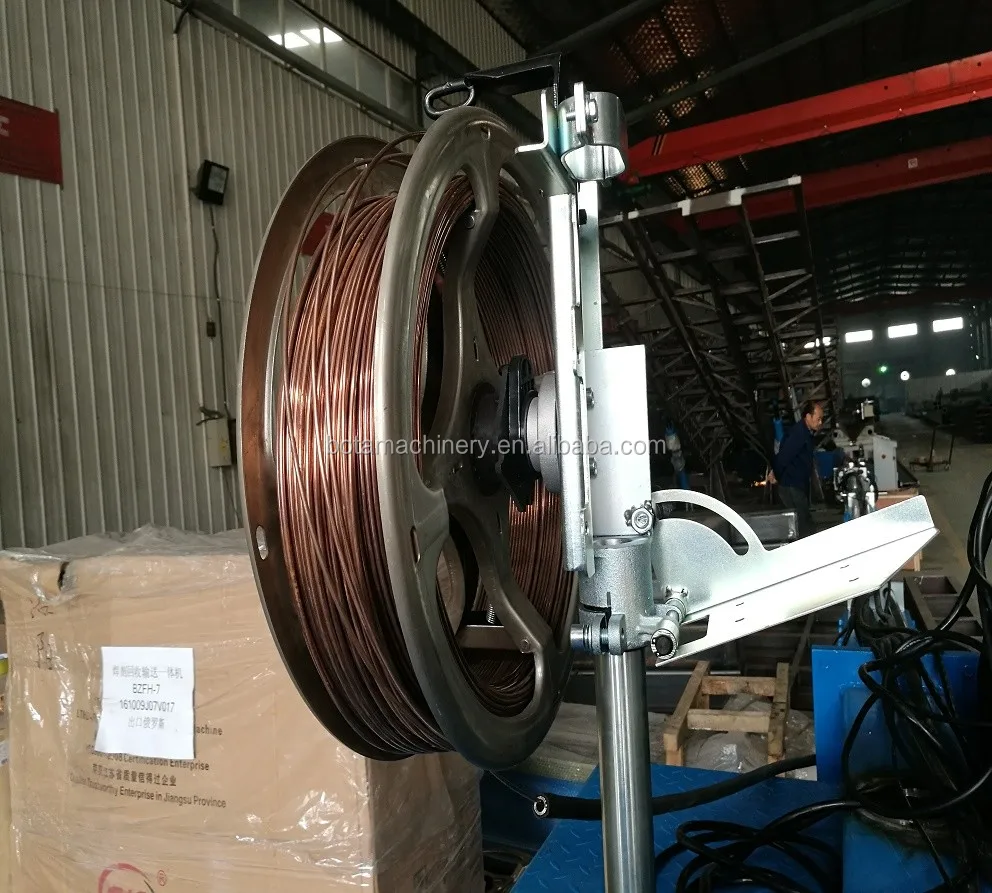

Domestic famous supplier, The main function is automatic flux to achieve the automatic feeding and flux recovery function, greatly reduce the work intensity of operators, improve the utilization rate of the production efficiency and flux. with thermal insulation function

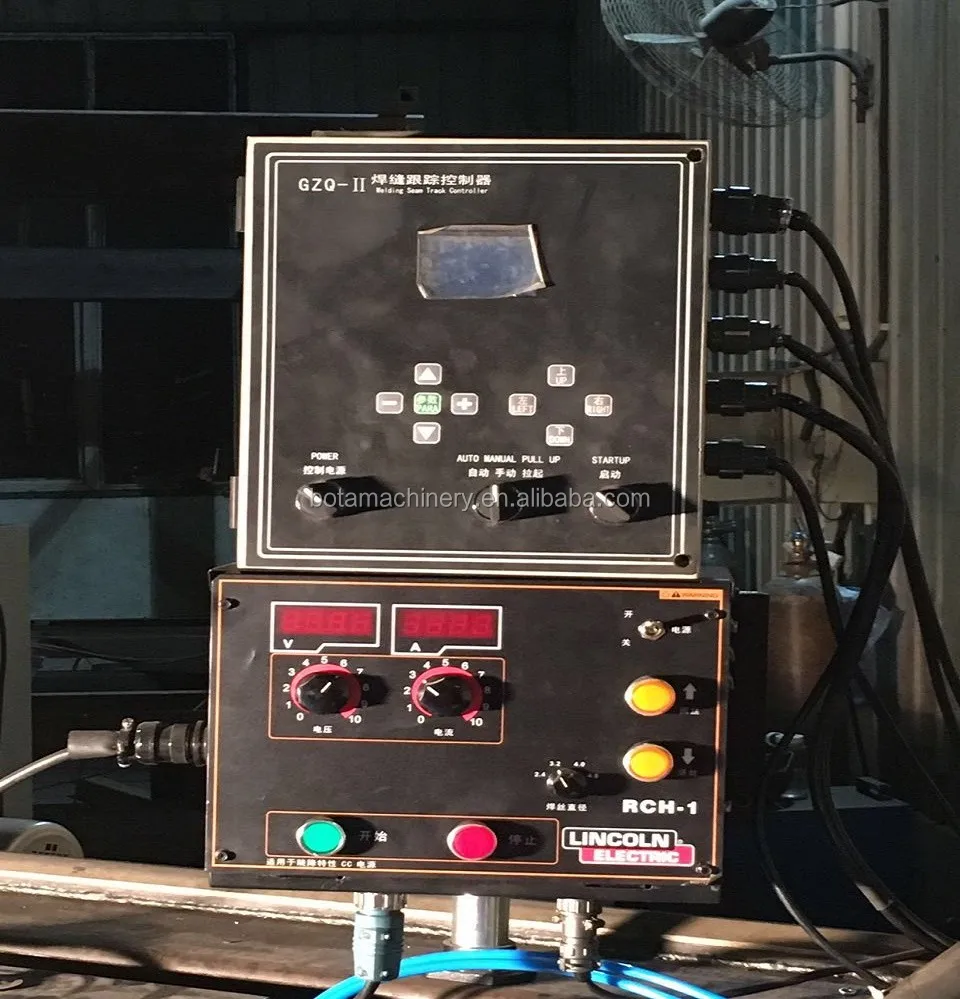

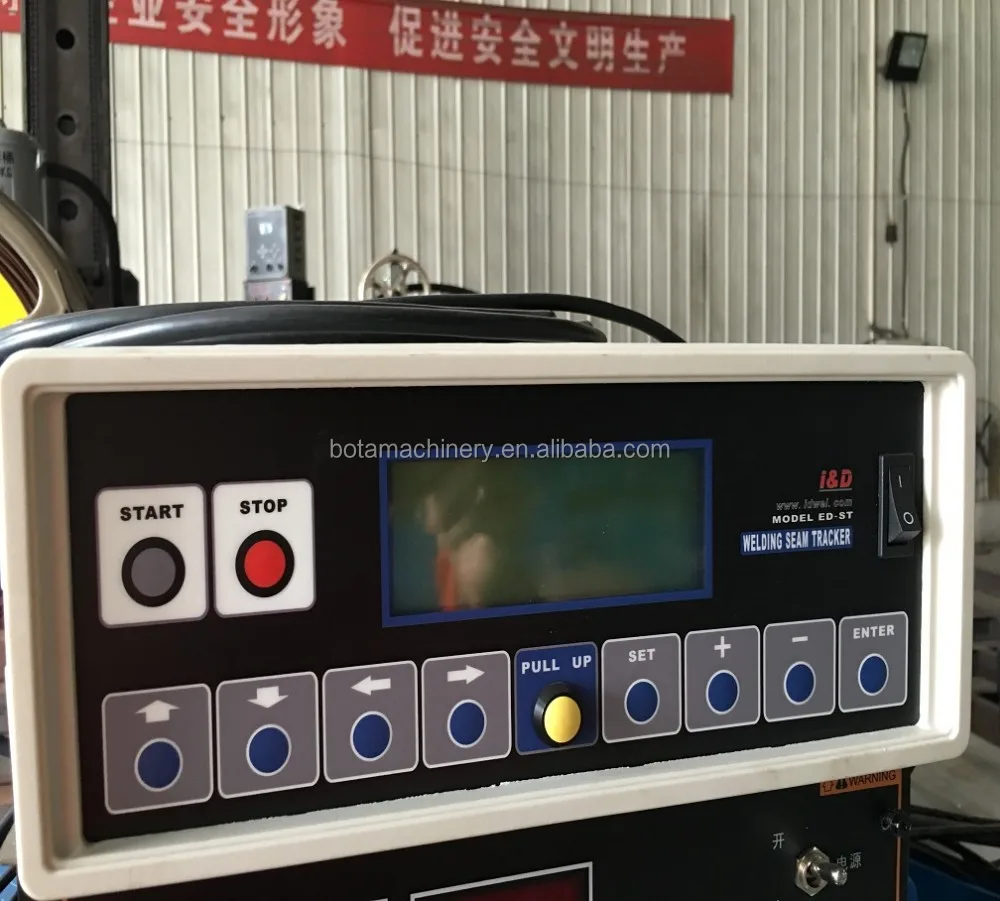

Domestic famous supplier,Sensor probe contacts the workpiece collected welding face position variation, through control system were calculated finally the actuator to adjust the distance between torch and workpiece, to ensure weld quality
