Jewelry laser cutting machine 30 watt 50 watt fiber laser engraving machine for jewellery silver gold

Product details
Place of Origin:Guangdong China;Minimum line width:0.02mm;
Selling Units:Single item;Laser power:20W, 30W, 50W optional;
Warranty:3 years;Laser Source Brand:Raycus;
Laser wavelength:1064nm;CNC or Not:Yes;
Engraving Speed:≤3m/s;Engraving Area:160*160 mm;
Application:Laser Engraving;Brand Name:BEC LASER;
Machine type:Jewelry laser cutting machine 50 watt;After-sales Service Provided:Field maintenance and repair service;
Package Type:International safety wooden box - - Jewelry laser cutting machine 30 watt 50 watt fiber laser engraving machine for jewellery silver gold;Dimension(L*W*H):≤3m/s;
Single package size:51X72X75 cm;Keywords:jewelry laser cutting machine fiber;
Graphic Format Supported:AI,PLT,DXF,BMP,DST,DWG,LAS,DXP;Applicable Industries:Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Marking area:110*110mm / 160*160mm;Cooling Mode:Air Cooling;
Laser source:Raycus (JPT / IPG optional );Weight:90KG;
Condition:New;Applicable Material:Metal,plastic;
Key Selling Points:Eco-friendly;Repeated accuracy:±0.003mm;
Single gross weight:90 KG;Product name:50 watt laser engraving jewellery;
Laser Type:Fiber Laser;Certification:CE,ISO,GS,SGS,UL,CCC;

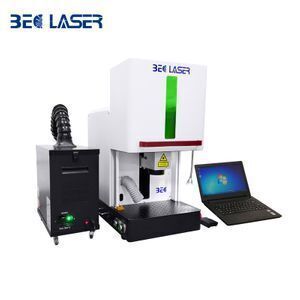

Jewelry laser cutting machine 30 watt 50 watt fiber laser engraving machine for jewellery silver gold

Welcome to contact us for more details. Email: sunnie(@)beclaser.com   WhatsApp: +86 186 8033 1384. Thanks!

Product Description

>>>     Product Introduction    <<<

Jewelry laser cutting machine 30 watt 50 watt fiber laser engraving machine for jewellery silver gold is computer-controlled, environmentally friendly and offer the benefits of non-contact abrasion-resistant permanent engravings onto almost any type of material including precious metals.



Higher powered laser engraving systems are also able to cut thin metals for creating monogram and name necklaces as well as other intricate design cutouts.



>>>    Technical Parameters     <<<

Product NameJewelry laser cutting machine 30 watt 50 watt fiber laser engraving machine for jewellery silver gold
ModelBEC-FB20BEC-FB30BEC-FB50
Laser Power20W30W50W
Laser Source BrandRaycus / JPT / IPG optional
Marking Area110mm*110mm / 150mm*150mm
Marking Depth0.1~ 1.5mm ( Depending on the material. )
Marking Speed10000 mm/s
Single Pulse Energy0.67mj1mj
Output Beam Diameter7±16.5±1
Laser Lifetime100000 hours
Beam QualityM2<1.5M2<1.8
Frequency Adjustment30~60KHz50~100KHz
Cooling MethodAir cooling
Electricity Demand220V / 50HZ / single phase or 110V / 60HZ / single phase
Optional PartsLaptop, rotary fixture, 2D/3D platform, fume exhaustor, etc.

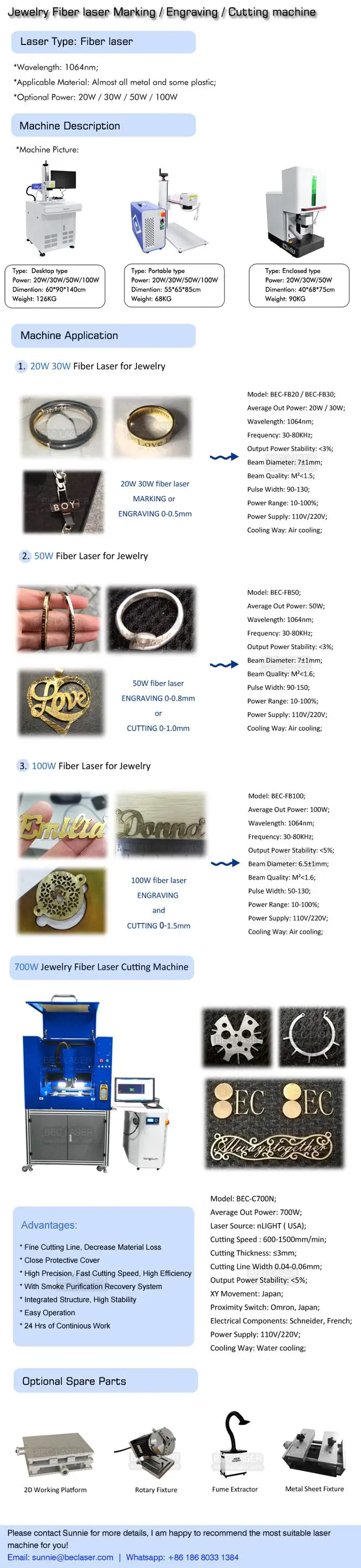

Detailed Images

Jewelry laser cutting machine 30 watt 50 watt fiber laser engraving machine for jewellery silver gold

>>>    Applications    <<<

Jewelry laser cutting machine 30 watt 50 watt fiber laser engraving machine for jewellery silver gold is a fast and clean technology that is rapidly replacing older laser technologies. Direct laser marking and laser engraving has now become a common process in the jewelry industry.



It offers a non-contact, abrasion-resistant, permanent laser mark onto almost any type of material including gold, platinum, silver, brass, stainless steel, carbide, copper, titanium, aluminum as well as a wide variety of alloys and plastics.



Marking Material

Both metal and some non-metal.

Metal: carbon steel/ mild steel, stainless steel, aluminum, copper, magnesium, zinc; rare metal and alloy steel ( gold, silver, titanium, etc. ) specail surface treatment ( aluminum anodized, plating surface, surface oxygen breaking of alumimum and magnesium alloy)

Non-metal: plastics such as ABS, PVC, HDPE , PP, PC, PE, rubber, resin , etc.

Applied Industries3C, food, medicines, gifts, trademark signs, the phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tool accessories, knives, watches, jewelry, cars accessories, luggage buckle, cooking utensils, stainless steel products and other industries.
Marking ContentIdentification text, serial numbers, corporate logos, 2-D data matrix, bar coding, graphic and digital images, or any individual process data can be produced with laser engraving.



Jewelry laser cutting machine 30 watt 50 watt fiber laser engraving machine for jewellery silver gold

Company Information

Jewelry laser cutting machine 30 watt 50 watt fiber laser engraving machine for jewellery silver gold



* Professional TeamWe are a professional industrial laser equipment supplier who is committed to integrating R & D, production and testing. Our team have over 15 years experience in laser equipment production field. All the machine has Two-Year warranty.
* Free Technical TrainingIf you do not know how to use this machine, as long as you come to China, we will provide you the free training until you have a good command of using the machine. If you are busy, our engineers can go to your country. You only need to pay some fees, such as air tickets, hotels and meals.



* Other services:



* 24 h on-line service;
* We have ourself factory;
* Free sample test & Free parts;
* Good package & Quick delivery time;
* Two years warranty and with lifetime service;
* Engineers available to service machinery overseas;
* Training how to install and use the machine and software.



Packaging & Shipping

Jewelry laser cutting machine 30 watt 50 watt fiber laser engraving machine for jewellery silver gold

*  The delivery lead time would be 7-10 working days after recieving the payment.

* The customer can choose the shipping by sea, by air and even by international express such as FedEx, DHL, TNT, etc. We will send the cargo by reliable forwarder.

Related Products



FAQ



Q1: How can I get the best machine for me?

A1: You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your needs or not. Then we can give you the best machine depends on our experience.



Q2: This is the first time I use this kind of machine, is it easy to operate?

A2: We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software. Or we can talk by phone, email or other contact ways.



Q3: If the machine has problem in my place, how could I do?

A3: The machine has two years guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. We could send free parts to you in warranty period if machines have any problem under "normal use".



Q4: This model is not suitable for me, do you have more models available?

A4: Yes, we can supply many models, such as portable fiber laser marking machine, table fiber laser marking machine, enclosed fiber laser marking machine, CO2 laser marking machine, UV laser marking machine and so on. Replacement of some part based on your need. The above are most popular. If it can not meet your requirement, then tell us. We have the ability to make specially according your requirement!



Q5: How long is the delivery time?

A5: In order to ensure the quality of products, so that customers receive high-quality laser machines. Our company has strict process of materials incoming inspection, puting in storage, materials picking, machine production, quality inspection, warehouse-out inspection. For standard machines, it would be 3-7 working days; For non-standard machines and customized machines according to client's specific requirements, it would be 15 to 30 working days.



Q6: How's the payment?

A6: We accept Telegraphic Transfer(T/T). 30% in advance, pay the balance before delivery. You can make the payment on Alibaba Trade Assurance.



Q7: Do you arrange shipment for the machines?

A7: Yes, we have freight agents for sea shipping, air shipping. If you choose our freight agents, you just need to pay the shipping cost to us, our freight agency will arrange the shipment for you. Of course you can choose your own freight agency to arrange shipment, we will prove you the EXW price, your freight agency need to pick up the machine from our factory.
