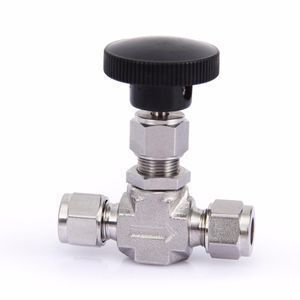

needle valve stainless steel Stainless Steel Bsp Thread Needle Valve

Supplier: Zhejiang Fangdun Instrument Valve Co., Ltd.
Region: Zhejiang, China
Contact: Mr. jin zhang
Price: $10.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Certificate:	ISO9001:2008 CE;	Place of Origin:	Zhejiang China;
Port:	shanghai or ningbo;	Standard:	ASTM;
Connection:	Bsp.NPT;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union;
Port Size:	1/8" 1/4" 3/8" 1/2"3/4"1";	Max.Pressure:	5000 psig (345 bar);
Brand Name:	FD-LOK;	Min.Temperature:	-54°C;
Structure:	Needle;	Temperature of Media:	Medium Temperature;
Body material:	Stainless Steel 316, 304, inconel, monel, hastelloy etc.;	Product name:	High Pressure Stainless Steel Bsp Thread Needle Valve;
Material:	stainless steel,alloy,monel 400,duplex;	Standard or Nonstandard:	Standard;
Media:	Oil,water,gas;	Pressure:	High Pressure;
Power:	Manual;	Application:	General;
Model Number:	SS-V1-S4;	Packaging Detail:	carton case ,wooden case...;
Other:	Resistant to corrosion;	Port Size:	Various;
Max.Temperature:	232°C;	Supply Ability:	10000 Piece/Pieces per Month;

Product Description

1. Working pressure:

Stainless steel: up to 5000 psig (345 bar)

Steel:up to 3000 psig (207 bar )

Brass: up to 3000 psig (207 bar)

2. Working temperature:

PTFE: -65°F to 450°F ( -54°C to 232°C )
PEEK:-65°F to 600°F ( -54°C to 315°C )

3. Panel mountable

4. Packing nut permits stem packing adjustment

5.Live-loaded packing system

6.Compact design

Product Name	General purpose needle valve ,stainless steel,alloy c-276,monel 400,duplex
Material	stainless steel,alloy c-276,monel 400,duplex
Working temperature	PTFE: -65°F to 450°F ( -54°C to 232°C ) PEEK:-65°F to 1200°F ( -54°C to 649°C )
Working pressure	Up to 5000 psig (345 bar)
Standards	NPT,BSP,ISO,DIN
Stem Type	Blunt tip,regulating tip,soft tip,non-rotating stem tip
Certificates	ISO9001:2008, CE
Brand Name	FD-LOK or customed

Products Show

Our Company

Workshop

Our workshop

Exhibition

Our exhibition

Fast Delivery
We have over 100 CNC machines and many skilled workers and engineers,which can make sure the products will be deliveried in a fastest time.

Low Price
We are a manufacturer which have many years' experience,technical innovation and scientific management enable our cost lower,and our price is more competitive in this field.

Good After-Sales Service
After customers receive goods,we will continue to follow the customers about the service condition,if any problems,we guarantee to keep the problem goods in good repair.

Main Products

Tube fitting

Our tube fittings stainless steel, compression tube fitting and stainless steel tubing fittings, stainless steel tube fittings, are designed availablely in many connections and configurations. Hardened threads and smoothed surface finishes extend fitting life and prevent sticking of the matching threads.

Needle valve & Ball valve

FD-LOK needle valves has 10 different types,needle valve have several tips can be choosed, such as Blunt Tip, Regulating Tip, Soft Tip and Non-rotating Tip.

Three way ball valves widely used in many solution systems. We also provide them in parts. We provide stainless steel ball valves not only in 316, but also special materials such as inconel, monel, hastelloy, incolloy, duplex and super duplex.

Block &Bleed valve

FD-LOK Double block and bleed valves is including DBB valve series, Single block and bleed valves and bleed valves series, DB series, SB series. Different materials can be choosed, such as Stainless steel, Duplex, Inconel, Monel.
