quality dry milk powder machine for making milk powder

Supplier: Taizhou Telang Machinery Equipment Co., Ltd.
Region: Jiangsu, China
Contact: Mr Richard Sun
Price: $500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Application:	making powder from liquid mixed;	Warranty:	1 Year;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Dimension(LWH):	3.53.54.8meter;
Certification:	CE ISO;	Weight:	2200kgs;
Atomize Mode:	high speed centrifuge spray;	Material:	Stainless Steel304 /316L;
Temp of Air Outlet:	80-90℃ Adjustable;	Port:	shanghai port or ningbo port;
Type:	Spray Drying Equipment;	Condition:	New;
Voltage:	220V/380V;	Brand Name:	TELANG;
Heating source:	Electricity/ Natural Gas;	Temp of Air Inlet:	120-350℃ Adjustable;
Power(W):	72kw;	Supply Ability:	80 Set/Sets per Month quality dry milk powder machine for making milk powder;
After-sales Service Provided:	Engineers available to service machinery overseas;	Packaging Detail:	wrapped with plastic film and packed inside the seaworthy package;
Power Supply:	AC380V/AC220V 50Hz, 3phases.;	Place of Origin:	Jiangsu China (Mainland);

Product Description

quality dry milk powder machine for making milk powder

Atomizing drying machine is the high efficient drying equipment, to make dry powder or granule from liquid, emulsion, suspension and pumpable pasty liquid, especially for thermosensitive material, it can keep color, original flavor and chemical feature of raw material, and the finished dry powder or granule have good quality,purity, fluidity and solubleness.

This equipment features by high accuracy & speed & efficiency, simple production process, labor-cost saving, widely applied in the industry of chemical, food, pharmacy, biochemistry, light industry,etc.

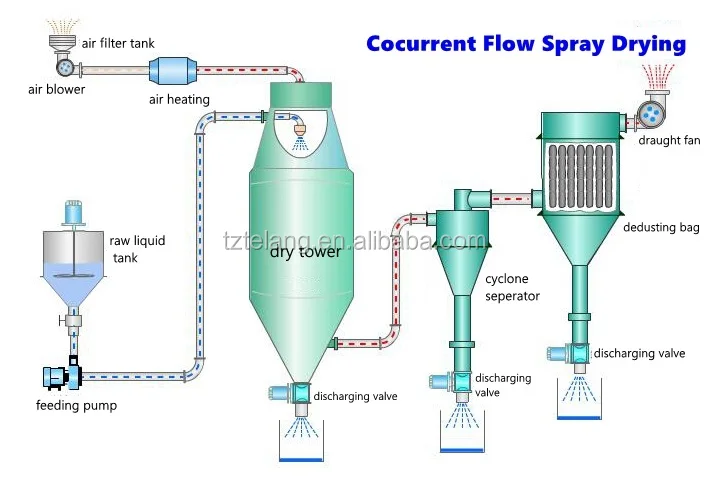

Working Principle:

After filtering and heating, the air would enter into upper air-deployer of drying tower, and then come in in hot spiral form. At the same time, the raw liquid material would be atomized by tower from upper inside, become the super tiny globule in mist type, the surface of which would contact the hot air fully, then finished dry powder would be achieved in short time and collected at the bottom of tower and be discharged from cyclone separator, the gas would be exhausted outside.

Features:

High drying efficiency
The finished power or granule has good homogeneity, fluidity and solubility.
Simple and convenient operation
Mechanical atomizer is adopted, and driven by gear, speed is stable, which make sure the fogdrop is uniform.
The direction and angle of hot air distributor is adjustable, which ensure the fogdrop fully contact hot air. .
Conjunction elbow is made of sanitary degree steel pipe, smooth enough to avoide matereial blocked inside the pipe.
Wide application: food, chemicals, ceramics, basic dyestuff, etc.

Technical Data:

Model	LPG-5	LPG-25	LPG-50	LPG-150	200-2000
Tem of air inlet	140-350 adjustable
Tem of air outlet	80-90
Max. water evaporation(kg/h)	5	25	50	150	200-2000
Transmission type of atomizor	By air compressed	Mechanical
Max.rotary speed(r.p.m)	25000	18000	18000	15000	8000-15000
Diameter of spraying disc(mm)	50	120	120	150	180-240
Heating resource	electricity	electricity	Steam+electricity,fuel oil, gas, airheater
Max. Heating power(kw)	9	36	72	99
Overall size(m)	1.8×0.93×2.2	3×2.7×4.26	3.5×3.5×4.8	5.5×4×7	According to circumstance
Dry powder recycled(%)	≥95

Some Operation Issues:

1. Atomizating: Atomizing system must insure uniform spraying fogdrops.
2. Hot airflow and fogdrops contacting: While the hot air come into drying tower, user have to consider the air flowing way and angle. No matter co-current flow, adverse current or mixed flow, user must insure the sufficient heat exchange, which is the key way to make sure the dry efficiency.
3. The angle design of pipelines and cone: It is pretty important to choose the suitable angle, please contact us for more working experience.

Product Show

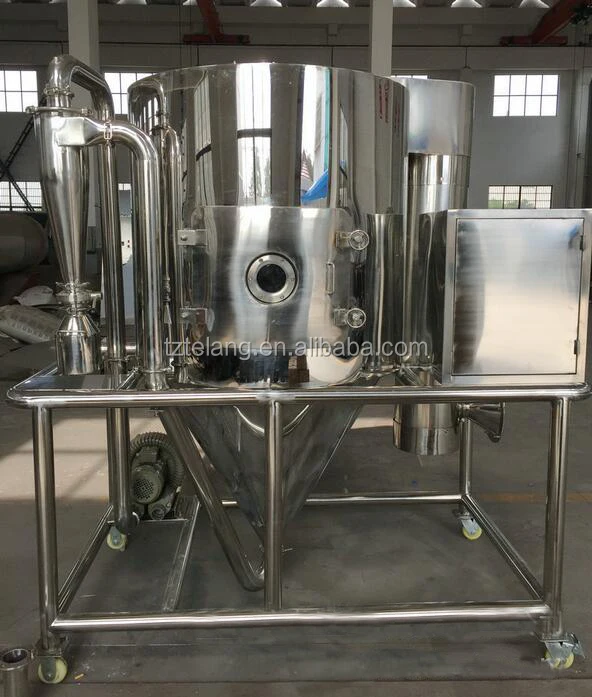

actual picture of spray dryer machine in our workshop

Good Treatment to Details Part

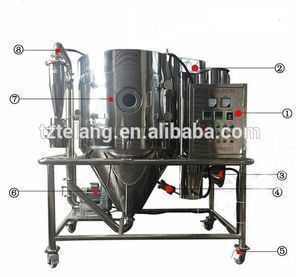

LPG-5 Normal Type

Special Model for Ceramic Powder Spraying Drying

Application of machine

The spraying dry machine in customer's work plant:

Company Profile

Package & Delivery

♦ Package:

wrapped with plastic film, packed inside the wooden case, and fixed with sea-worthy pallet

♦ Delivery:

By sea / air / courier would be suppored according to buyer's location, just tell us where you wanna send and when you wanna get, the best solution would be suggested.

FAQ

For better order, it would be appreciated if you can let us know the following item,
what is the liquid like, physicalproperty: viscosity, PH, water content, surface tension, etc,
the powder capaicty after drying, water content left, viscosity, max. temperature, etc.
what is the producion capacity per hour or per day, your working hours,
the heat resource avaiable, by gas, by electricity, fuel oil, steam, how much is it
what is control model you like
how do you like to collect the powder, the environment requirement for gas exhausted.

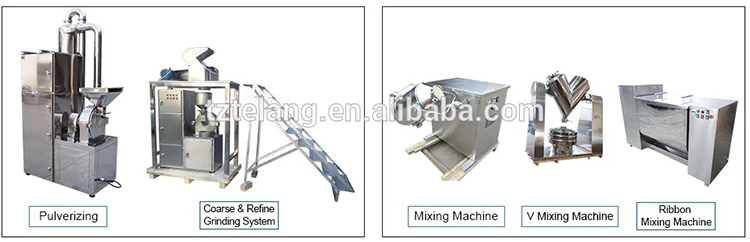

Machine Related
