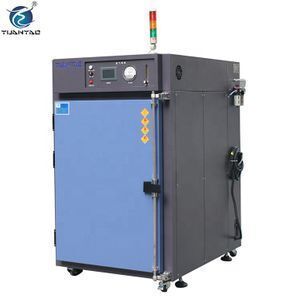

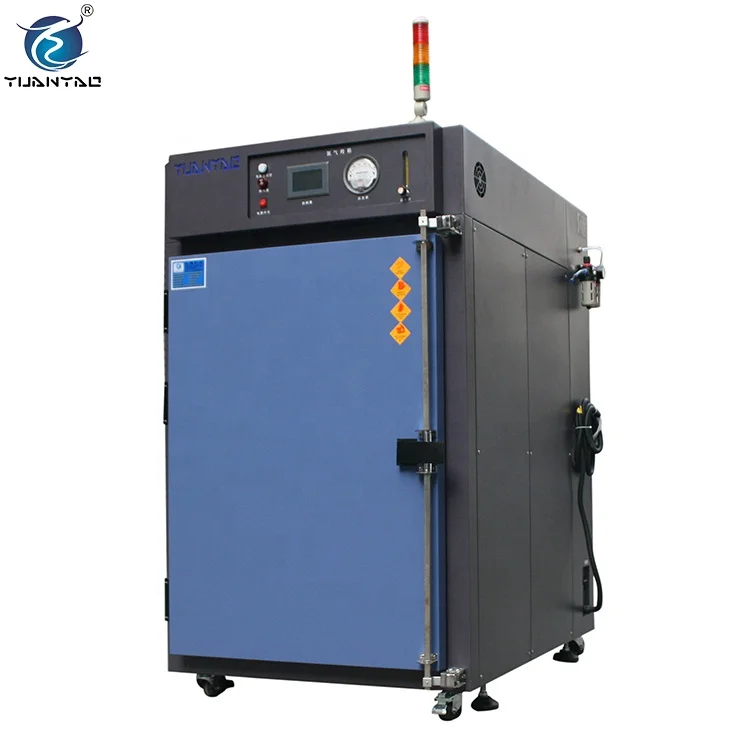

Industrial fast drying and explosion-proof oven glue drying oven

Product details
Weight:128kg;Heating up time:30mins;
Temp.range:RT+10℃~200℃;Place of Origin:Guangdong China;
Supply Ability:100 Set/Sets per Month;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal, cash;
Product name:Glue drying oven;Warranty:One Year;
Dimension(L*W*H):400*450*400mm;Condition:New;
Brand Name:Yuanyao;Applicable Industries:Drying equipment;
Packaging Detail:Inner package: soft film with foam Outer package: wooden case;Wind circulation:Cooling fan;
Application:Glue and rubber;Temperature resolution:0.1℃;
After-sales Service Provided:Online support,Video technical support,Free spare parts,Field maintenance and repair service;Voltage:220V;
Interior chamber material:SUS# 201;controller:Digital controller;
Certification:CE Certificate;Power(W):5.5kw;
Application:Drying equipment;Type:Hot Air Furnace;
Temp&humi uniformity:±1%℃;Key Selling Points:High Productivity;
Port:Shenzhen;Temp&huni fluctuation:±0.3℃;

 Industrial fast drying and explosion-proof oven glue drying oven

Product Description

Drying Oven can provide a stable test space for pre-heating, drying, changes about physics and chemistry testing . It supply precision temperature controller with high stability of platinum resistance to temperature that makes temperature well-distribution.



Electric Heating Air Blast Drying Oven Specification



ModelYPO-072YPO-270YPO-480YPO-600YPO-720
Inner chamber size W×H×D(cm)40×45×4060×90×5080×100×60100×100×60120×100×60
Exterior chamber size W×H×D(cm)90×105×55110×160×65130×170×75150×170×75170×170×75
Temperature rangeRoom temperature+10~200℃(300℃)
Perform-anceTemp.fluctuation±0.3℃
Temp. uniformity±1%℃
Temperature resolution0.1℃
Heat up time30min
MaterialExterior chamber materialCold-rolled steel+Powder coating
Interior chamber material

SUS#304 Stainless steel plate

(Use SUS#201 when max.temp.is below 200℃)

InsulationPU&fiberglass
SystemWind circulationCooling fan
Heating systemSUS#Stainless steel high-speed heater
Controller CAHO H961KV02 controller(Taiwan)
Other componentsCable port(dia.50mm),control status indicator,loading shelf(2pcs,position-adjustable)
Safety devicesOver-heat protection circuit breaker,overload protection,overload indicator
Power supplyAC 3phase380V 60/50Hz
CustomizationNon-standard or special requirements are all welcome



Product features



1)  Adopts microcomputer electronic data control, precise and reliable.
2) The insulation packing is mounded by silicone, highly temperature-enduring and anti-aging.
3) Heating by compulsory circulating ventilation, temperature rising fast and uniform distribution.

4) If need, we can add a glass view window for customer to observe the inner chamber.
