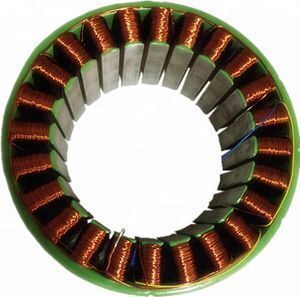

motor winding stator
- 250.00 >=100 pieces
| Usage: | DC brushless motor; | Length: | 70mm; |
| Material: | 50WW400; | OD: | 200mm; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Connection: | Series; |
| Port: | shanghai,ningbo,shenzhen; | Turns of wire: | 140TS; |
| Model Number: | ATS200; | Delivery Detail: | 25 days; |
| Type: | Stator; | ID: | 133.5mm; |
| Brand Name: | ATS; | Supply Ability: | 100000 Piece/Pieces per Month; |
| Place of Origin: | Jiangsu China; | DIA of copper wire: | 0.63mm; |
| Packaging Detail: | 1.Seaworthy packing to prevent crash, damage and rusting. 2.Details please see below description for packaging & shipping.; |
PRODUCTION DESCRIPTION
Are you worride about your money and quality? Do not worry, the service is not over after shipping the stators. If any issue about product, we will be responsibile for it.
The stator core is assembled by welding, which is punched by stamping die. The stator core can be used in brushless dc motor. As the structure of tooling is fixed, it can only be used to punch the material with 0.5mm. If you think its cost is high, we could make tooling for free if you have big quantity. So it is our advantage. We can design the jig and assemble the cores by ourselves.
Details pls see below pictures.
| OD | ID | Material | Turns of wire | Powder coating thickness | Withstand Voltage | Temperature rating | Wire diameter | Application |
| 200mm | 133.5mm | 50WW400 | 140Ts | 1.2mm | 800-1800V/AC/0.5mA | B, F, H | 0.63mm | DC Brushless motor |
| 125.5mm | 105mm | 304 steel | / | / | / | / | / |
