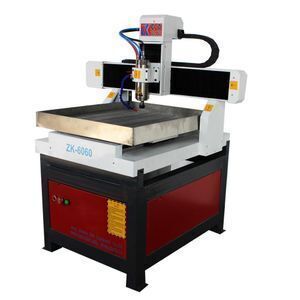

ZK-6060 Servo system CNC 3D Jeweler Cnc Engraving Machine for Metal Wood 600*600mm

Supplier: Jinan Zhuoke CNC Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms. Ashley Yang
Price: $1500.00 /set
Min. Order: 1 set

Click here to contact

Product details

spindle:	2.2KW water cooling spindle;	Weight:	280KG;
Place of Origin:	Shandong China;	Certification:	CE;
Dimensions:	600600120mm;	Brand Name:	ZHUOKE;
Feeding Height:	120mm;	material:	casting iron gantry, casting iron lathe bed;
software:	Mach3 control system;	Condition:	New;
After-sales Service Provided:	Engineers available to service machinery overseas;	Collet and nuts:	ER20, support 3.175,4,6mm;
Rated Power:	800W;	transmission:	XYZ ballscrew;
Payment Terms:	T/T,Western Union,MoneyGram;	Design software:	Artcam;
guide rail:	XYZ linear square guide rail;	Warranty:	1 year;
Milling Cutter Diameter:	3.175,4,6;	Product name:	ZK-6060 Servo system CNC 3D Jeweler Cnc Engraving Machine;
Main Axle Rotational Speed:	0-24000rpm;	Port:	Qingdao or Shanghai CNC 3D Jeweler Cnc Engraving Machine;
Engraving Speed:	0-6000mm/min;	Working table:	casting iron T-slot working table;
Application:	metal engraving;	Supply Ability:	200 Set/Sets per Month CNC 3D Jeweler Cnc Engraving Machine;
Packaging Detail:	standard export plywood case for CNC 3D Jeweler Cnc Engraving Machine;

Product Description

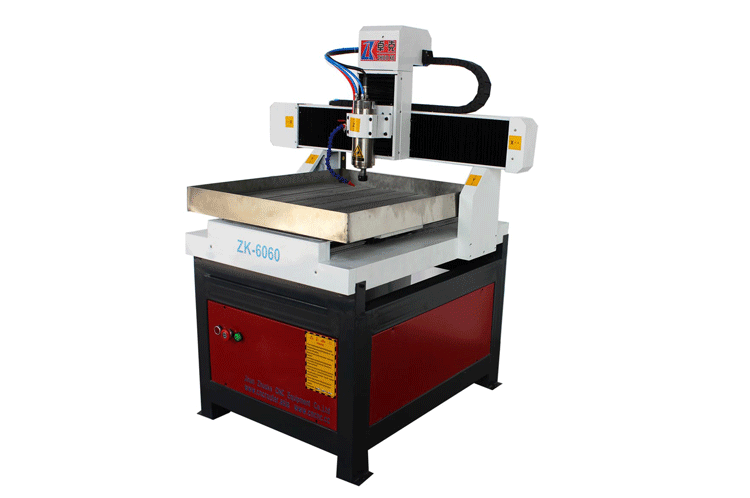

ZK-6060 Servo system CNC 3D Jeweler Cnc Engraving Machine for Metal Wood 600*600mm

Application :

Applicable Industries

Good at in processing all kinds of small workpiece ,widely used in advertising signs, badges, logo, mould construction equipment, mould products, industrial mold, etc.

Applicable Materials

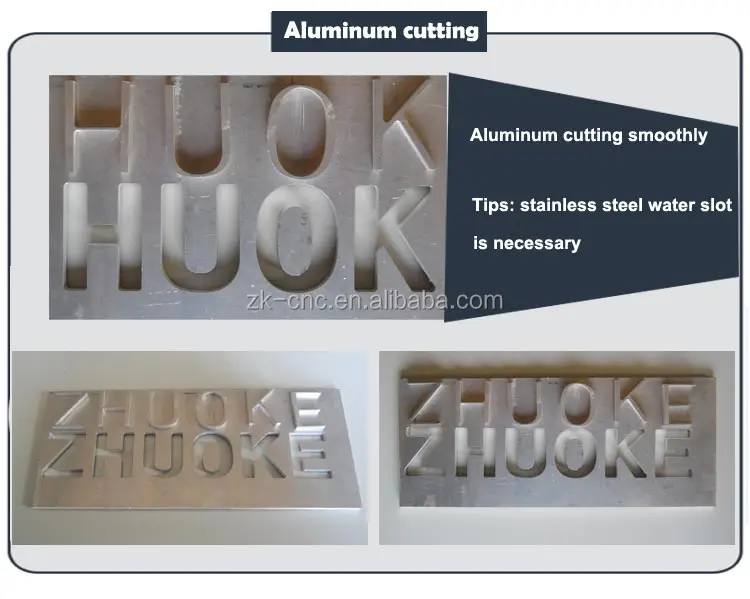

Suitable for all kinds of metal, such as copper, aluminum, iron, stell, stainless steel, alloy, also the acrylic, wood, MDF, double color board, stone, jade, ect.

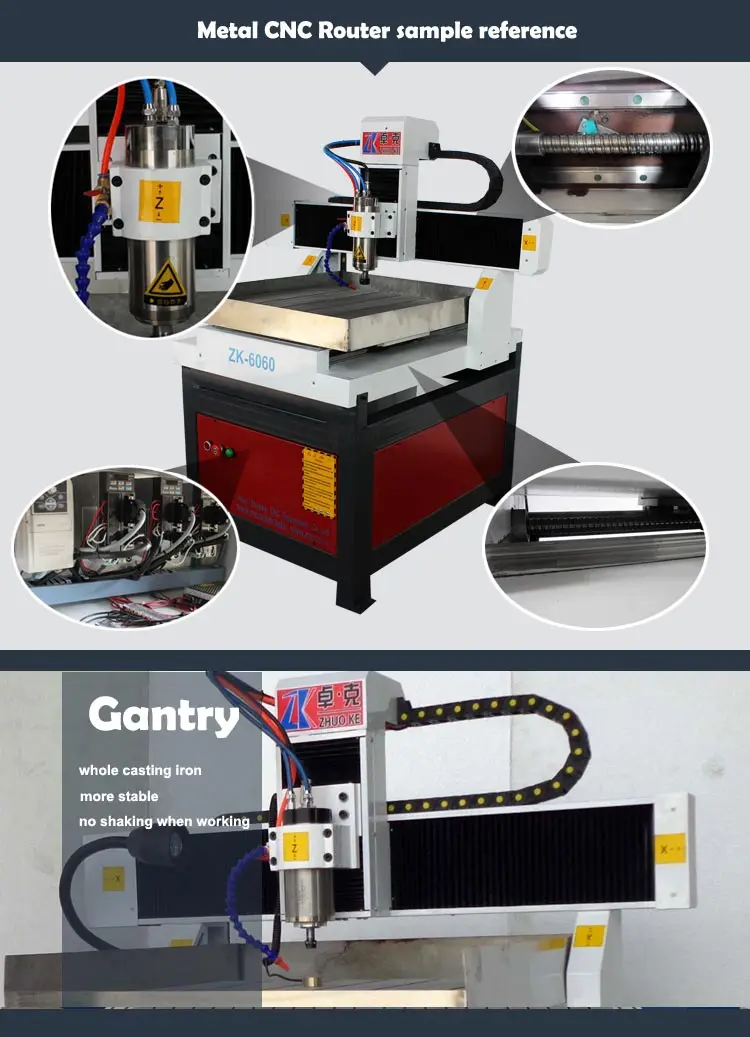

CNC 3D Jeweler Cnc Engraving Machine introduction:

1. Machine adopt steel pipe bracket, iron lathe bed, casting iron gantry

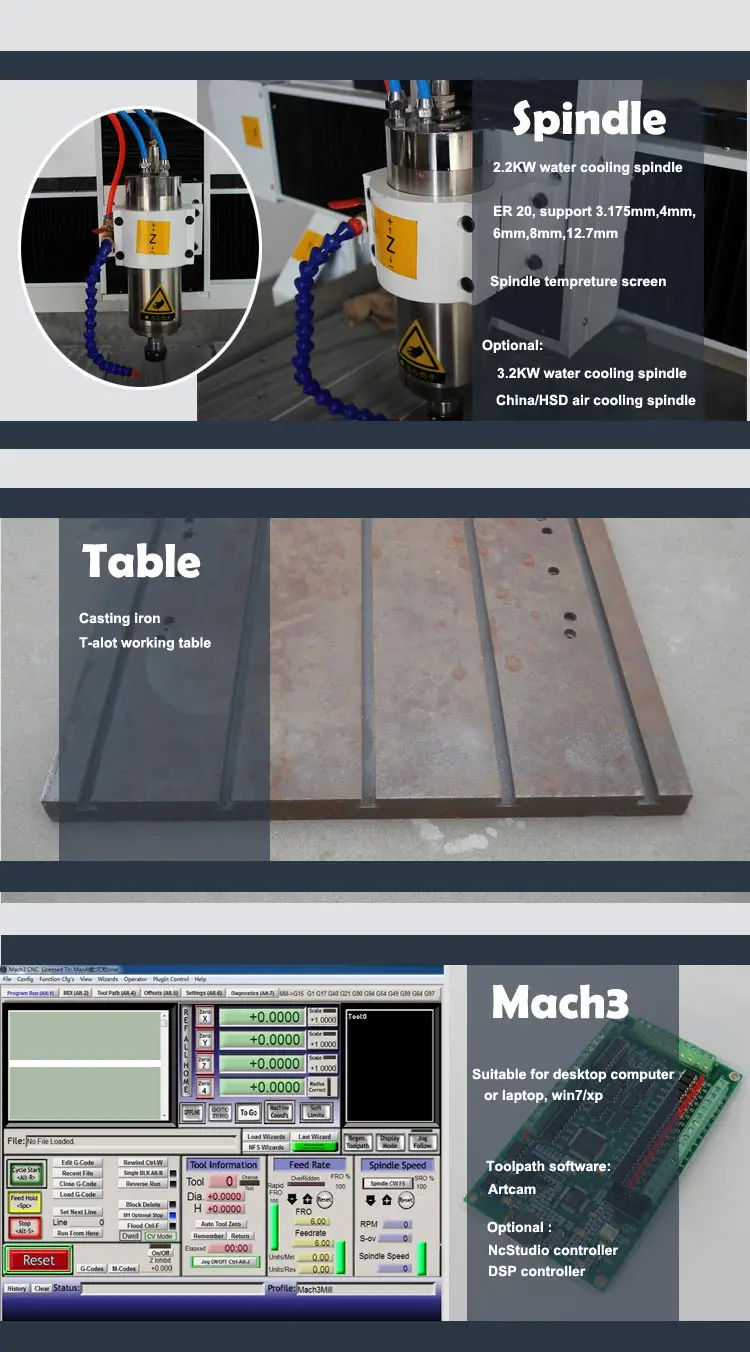

2. Machine adopt 2.2KW water cooling spindle, ER20, support 3.175,4,6,8,10,12.7mm.

Optional:1.5KW/3.2KW water cooling spindle, China or HSD air cooling spindle

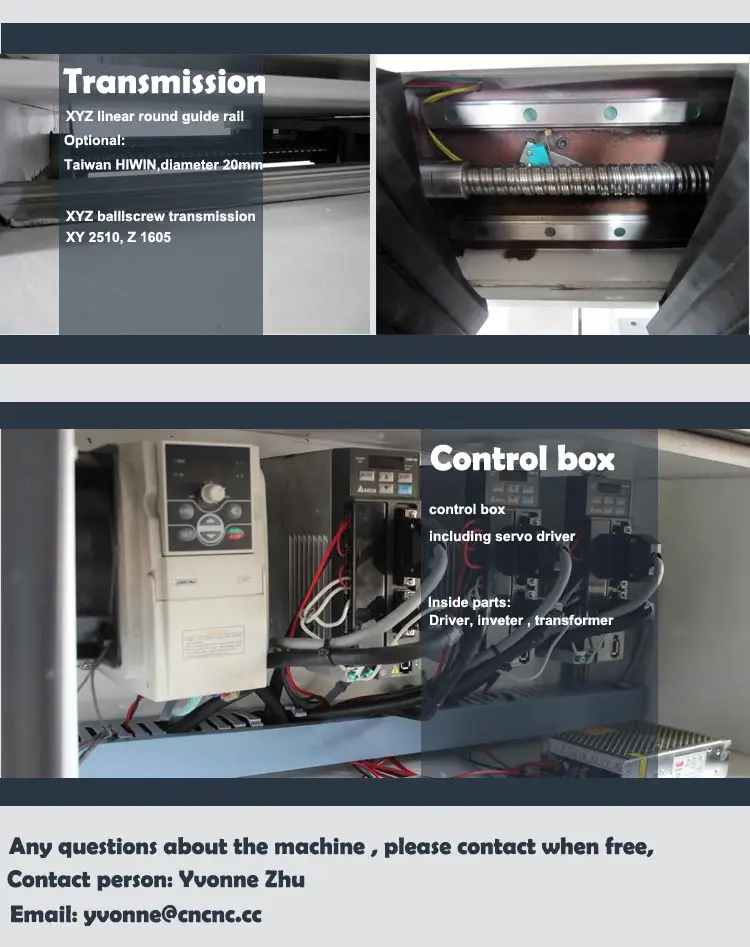

3. XYZ choose Linear square guide rail ,Taiwan HIWIN, diameter 20mm

4. XYZ choose ballscrew transmission

5. T-slot casting iron working table, Covered PVC to contact the tools.

6. Stainless steel water slot for metal or stone working

7. XYZ choose Japanese YASKAWA servo system

Optional: Leadshine hybrid servo system or Japanese YASKAWA servo system

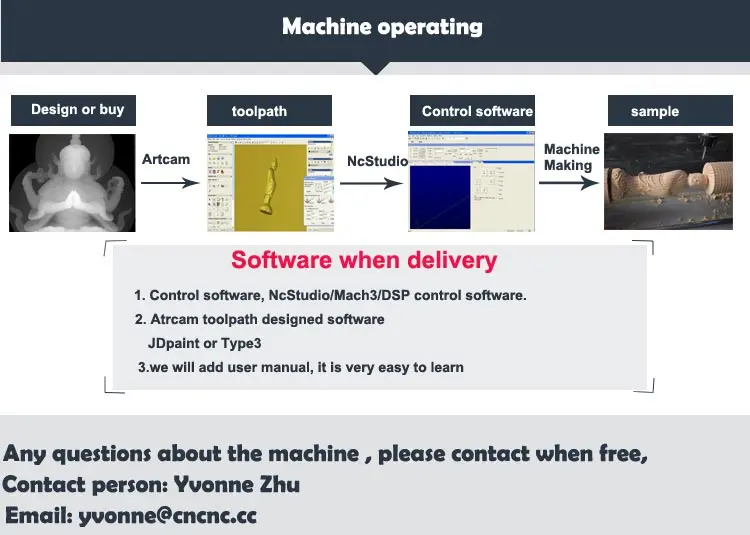

8. Control system: Mach3 control system , suitable for desktop computer or laptop with USB interface, win7/xp/2000.

Optional items: NcStudio or DSP control system

Machine parameter table:

Items	configuration
Certificate	CE
XY-axis working area	600*600mm
Material	Cast iron machine bed, cast iron gantry
Moving way	working table moving
Working table	casting iron T-slot working table
Guide way	XYZ-axis linear square guide rail
Driving mode	XYZ-axis ball screw(XZ:1605,Y:2510)
Z-axis working area	120mm
Driving method	XYZ Japanese YASKAWA servo system
Water cooling system	Water pump for spindle
Spindle	2.2KW water cooling
Control system	Mach3 control system
Design software when delivery	Artcam
Voltage	AC 220V,50/60Hz, single phase
Tools	11pcs for metal
