Continuous Galvanizing Production Line

Supplier: Wuxi Clarence International Trading Co., Ltd.
Region: Jiangsu, China
Contact: Mr. Kai Wei
Price: $1000000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Weight:	Customized;	energy resource:	natural gas;
Certification:	SGS;	Substrate:	Steel;
Width:	300~1250 mm;	Payment Terms:	L/C,T/T;
Warranty:	1 year;	Condition:	New;
Type:	Coating Production Line;	Port:	Shanghai/Zhangjiagang;
Dimension(LWH):	Customized Size;	Power(W):	Customized;
Brand Name:	Clarence;	Supply Ability:	1 Set/Sets per Quarter;
Thickness:	0.18~2.0 mm;	Coating:	Galvanizing;
Model Number:	hot dip galvanizing line;	Packaging Detail:	Wooden case;
Delivery Detail:	4-5 month;	After-sales Service Provided:	Engineers available to service machinery overseas;
Place of Origin:	Jiangsu China;	Voltage:	380V/220V;
Material:	Plain carbon steel, Low alloy steel;

Product Description

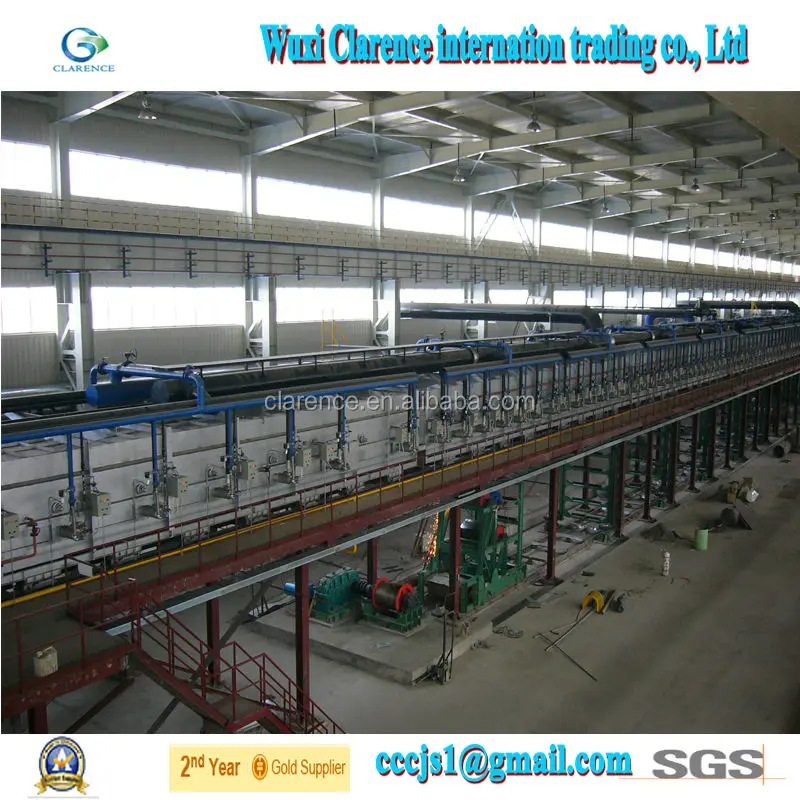

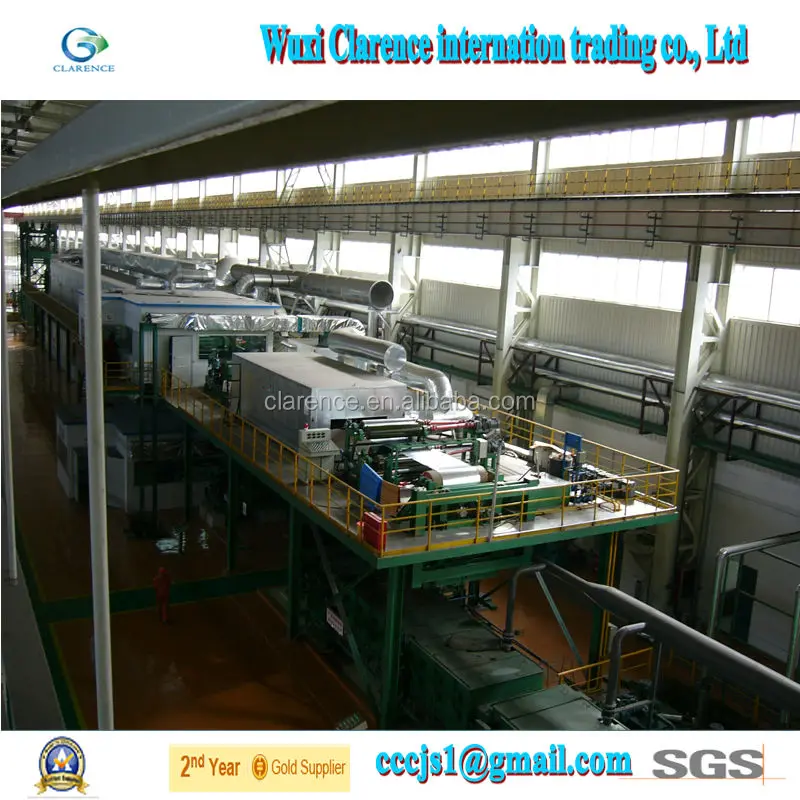

Hot-dip Galvanizing Line

We provide hot-dip galvanizing line with American-Steel-Union process, which can produce sheet with small spangles or without spangles. The product has good performance of corrosion resistance and coating adhesion, used widely for manufacture of automobile, household electric appliance, building construction and base plate for color coating etc.

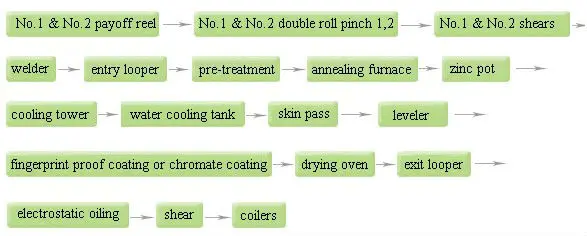

Technical Parameter

Process method: American- steel – union

Material: cold rolled carbon structure steel, qualified carbon structure steel and low alloy steel roll

Steel type: 08AL,SPCC,SPCD ,SPCE

Layer condition: normal spangle, small spangle, skin pass spangle

Layer weight: GI:GB/T2518-88

Layer thickness range(two side): 50—300 g/m²

Layer control method: air knife

Treatment after galvanized: skin pass, stretch, anti-fingerprint coating/chromate coating

Continuous annealing furnace: horizontal/vertical , electricity, natural gas, coal gas, etc

Zinc pot: main frequency induction heating ceramic zinc pot

Skin pass: four-tandem, bottom support roller AC frequency driving

Tension leveler: single bending & single stretching /double bending & single stretching/two bending & two stretching, elongation among 0.5~2.0%

Driving control: main drive adopt SIEMENS AC complexor frequency control system

Quality standard: GI:GB/T2518-2004

Material	Thickness	Width	Line speed	Plating Weight	Energy
Plain carbon steel, Low alloy steel	0.18~2.0 mm	300~1250 mm	50~180 m/min	80~300 g/m²(Double)	Electricity, Steam
