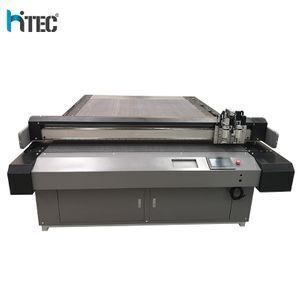

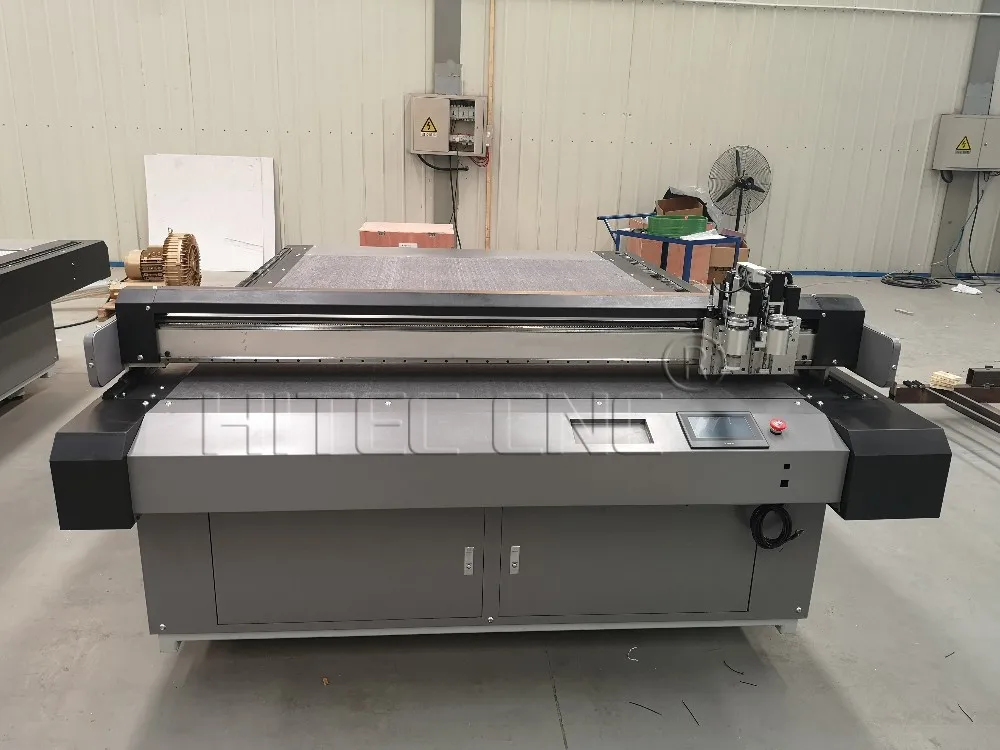

Automatic CNC Oscillating Knife Cutting Fabric Leather PVC Cutter Machines for sale

Supplier: Jinan Hitec Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Zoe Wang
Price: $8000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimension(LWH):	345023001250mm;	Motor:	YASKAWA/Delta servo motor;
Package Preview:	https://sc01.alicdn.com/kf/UTB8ncwfrFPJXKJkSahVq6xyzFXaG.jpg_640x640.jpg,https://sc01.alicdn.com/kf/UTB8k77mrKvJXKJkSajhq6A7aFXaF.jpg_640x640.jpg;	After-sales Service Provided:	Free spare parts,Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;
Cutting Tool:	Oscillating Cutting Tool;	Model:	HTO-1625;
Place of Origin:	Shandong China;	Cutting materials:	fabric, leather, cardboard, plastic, paper, rubber, EVA foam,;
Automatic Grade:	Automatic;	Package Type:	Automatic CNC Oscillating Knife Cutting Fabric Leather PVC Cutter Machines for sale 1.Inner pakage:waterproof plastic film. 2.Outer pakage:standard export plywood case. 3.Of course, we also can pakage depend on your request.;
Single package size:	3.52X2.28X1.40 cm;	Weight:	1500kg;
Voltage:	380V/220V;	Transmission:	Digital Servo Motor;
Cutting Speed:	200-800MM/S according materials;	Control System:	DSP;
Warranty:	2 Years;	CNC Oscillating Knife Cutting Fabric:	CNC Oscillating Knife Cutting Fabric;
Cutting Area:	1600*2500mm;	Application:	fabric, leather,paper,foam;
Cutting Thickness:	1-100mm;	Single gross weight:	1,200 KG;
Production Capacity:	3kw;	Brand Name:	HITEC;
Condition:	New;	Selling Units:	Single item;
Power(W):	3KW;	Certification:	CE ISO FDA;

Product Description

China cnc oscillating knife cutting machine for leather textile cordboard

Application of oscillating knife cutter machine

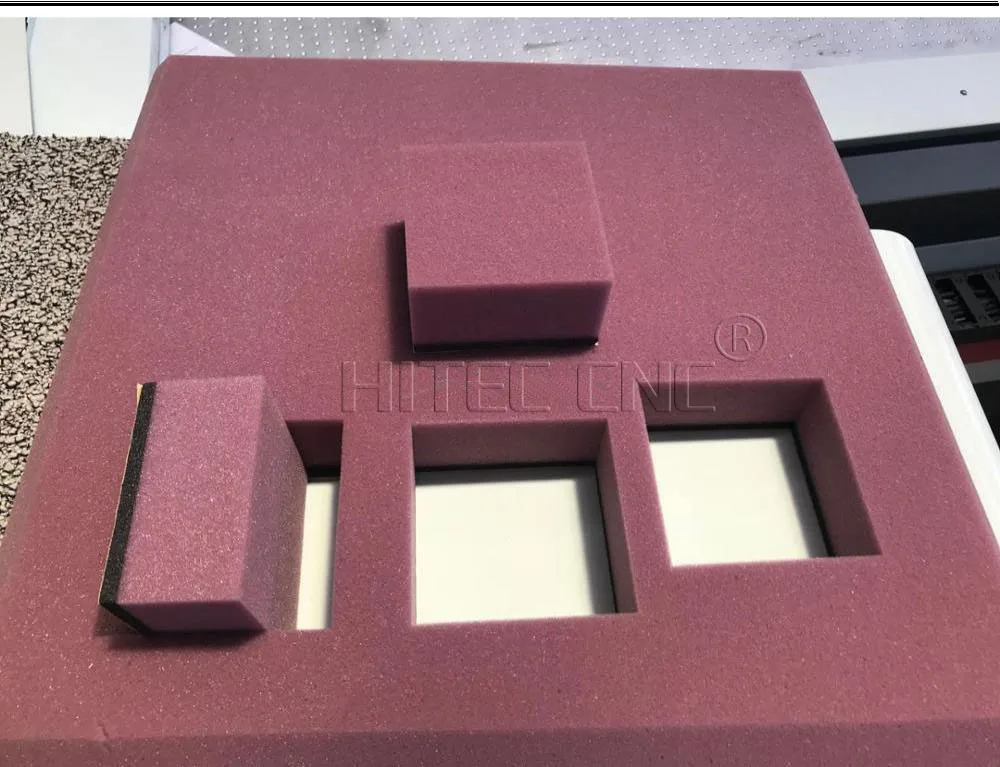

Digital Fabric Oscillating Knife Cutter Plotter Machine For Sale can process fabric,knitting vamps, non-woven, leather, rexine, cotton, felt, silk, lace, polyester, fleece , soft shell,jeans,alcantara,neoprene ,Corrugated board, cardboard, white board,gray board, sticker, PVC film,foam board, artificial leather, leather, gasket,sponge, Prepreg,acrylic, honeycomb board, fiberboard, epoxy resin board, organic glass, car mat, fiber,composite material and other soft materials, etc.

PARAMETER of oscillating knife cutter machine
Parameter/Model	HTO-1625	HTO-2030
Rated Power	12KW	14KW
Dimension	339127231235mm	389131731235mm
Max Working Size	2500*1600	3050*2050

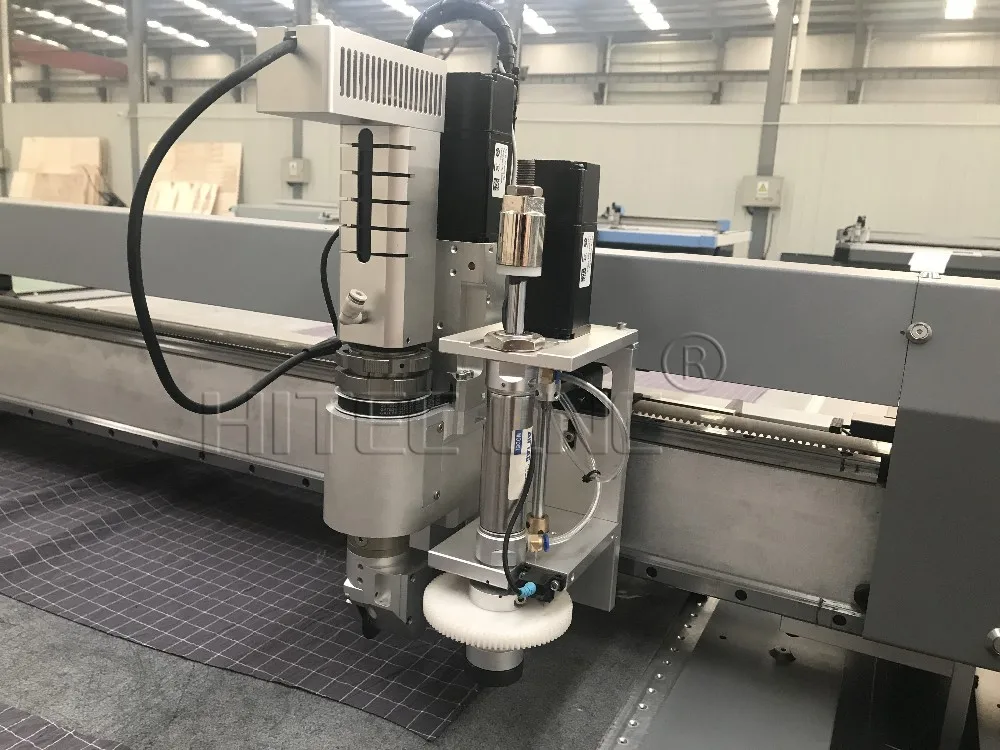

Multi-functional Cutting Head	Replaceable oscillating knife, half knife, full knife, oblique knife and creasing wheel etc.
Tools configuration	Various cutting tools, creasing wheels, pen, cross positioning laser
Safety	High sensitivity infrared induction (optional)
Moving Speed	Max. 1200mm/s
Cutting Speed	Max. 800mm/s(please set the speed according to the material)

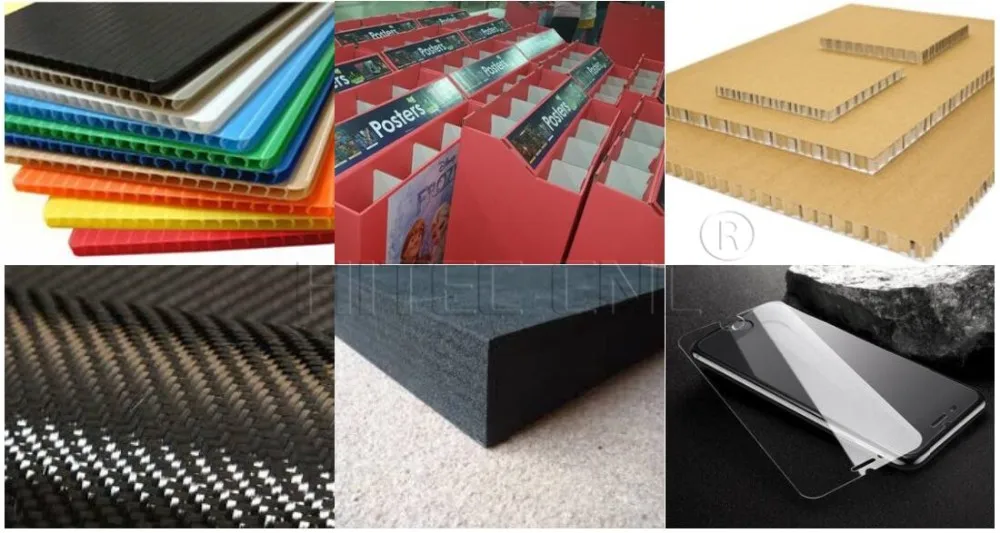

Material Applicable	Corrugated paper, non woven fabric , PVC expansion sheet, KT board, foam board, grey paperboard, cardboard, vehicle sticker, adhesive sticker etc.
Cutting Depth	Max 50mm (depends on the material)

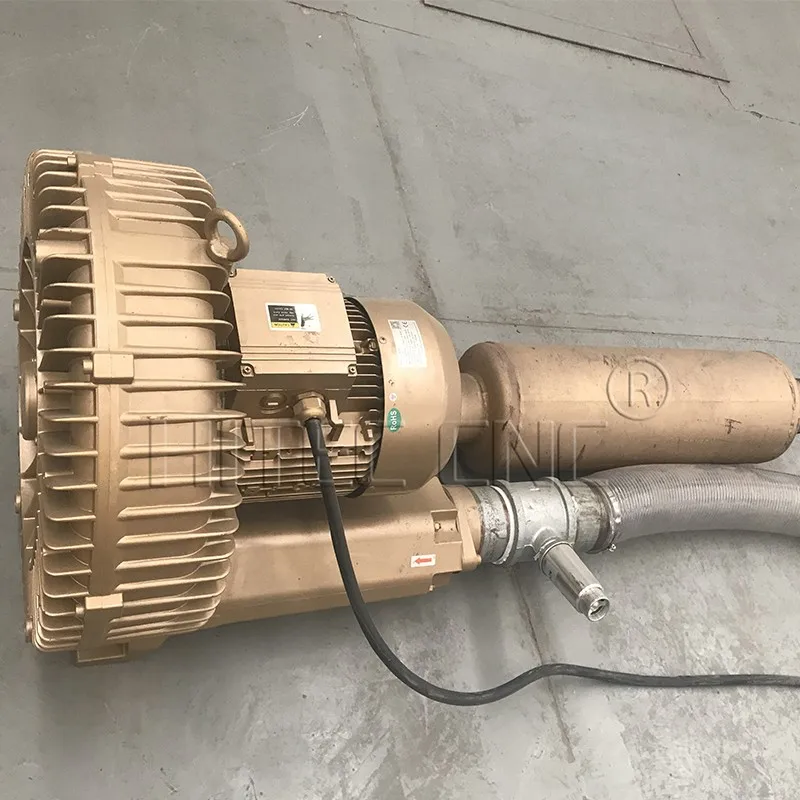

Material Fixing Method	Strong power vacuum absorption and intelligence Partition
Resetting Positioning Accuracy	Max 0.01mm
Mechanical Precision	Max 0.02mm

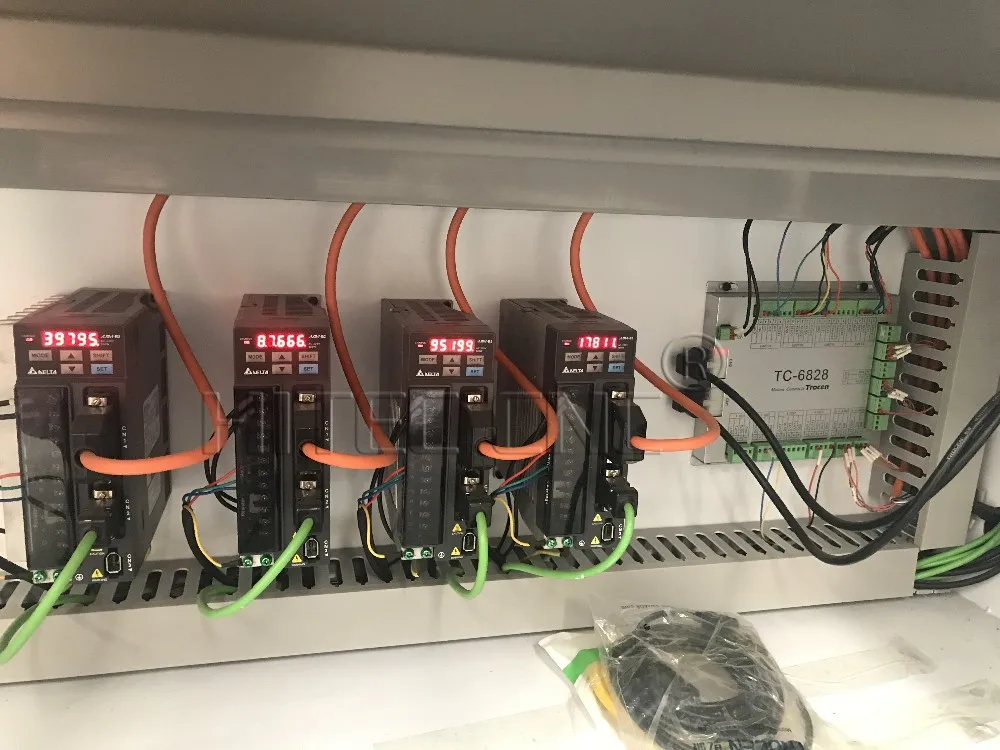

Drive System	Steel Simultaneous Belt, AC Panasonic servo motor. Linear guide rail
Control System	digital oscillation control systerm

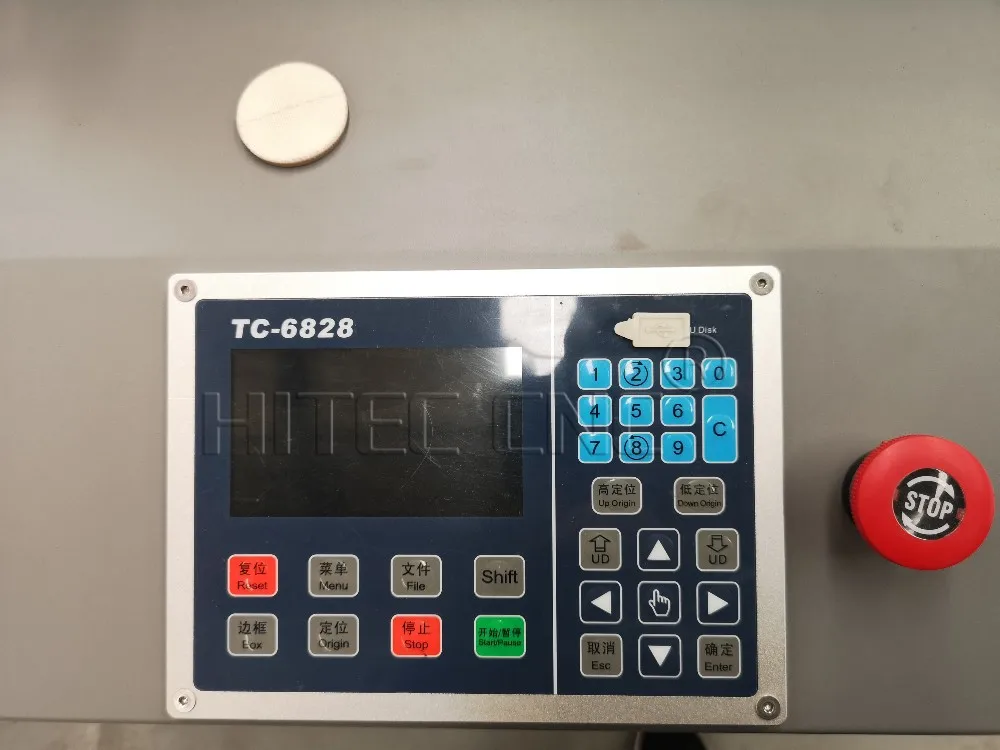

Display	English LCD touch screen
Data Transmission	Ethernet
Command	HP-GL compatible format
Buffering Capacity	Standard--4GB
Rated voltage	Customized
Hitec Cnc Option : - machine size can be customized according your request - auto feeding system - multi function cutting head - auto nesting cutting software - CCD camera visual cutting system - Projector cutting system

Features of oscillating knife cutter machine

1. Imported Taiwan square linear guide and Japanese servo motor ensure high accuracy, fast cutting speed and stable
working performance.

2. Whole machine is welded with thick square seamless steel structure and treated with high temperature, ensures
high accuracy, no deformation and super long service life

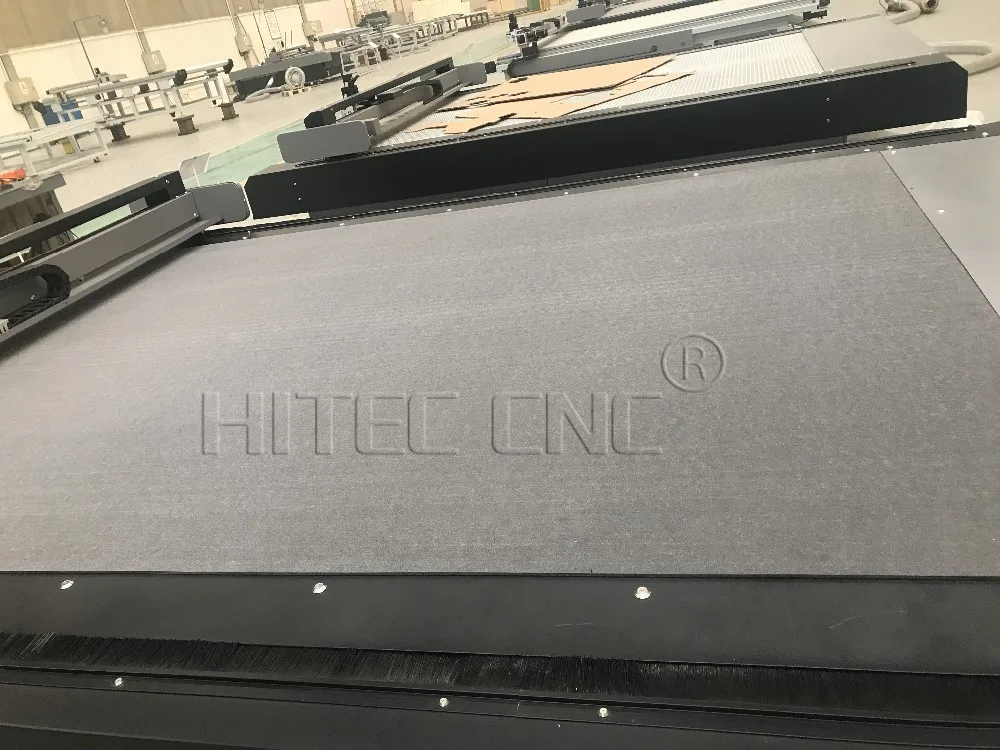

3. The whole piece aluminum platform is honeycomb structure, not easy to deform, sound-absorbing, etc.

4. Hitec digital cutting machine was designed easy to install, set-up and operate.

5. Being equipped with infrared sensor and emergency stop devices, guarantees safety.

6. Cutting by knife not laser, no air pollution , no burnt edge, cutting speed is 5-8 times faster than laser cutting machine.

Advantage of oscillating knife cutter machine

* Cutting precision

The precision of Digital Fabric Oscillating Knife Cutter Plotter Machine For Sale that every mechanical manufacturer can provide now is about ±0.2mm,there should be a complete procedures for test fiberglass cutting accuracy before delivery.Through testing, we can fully grasp the flatness of the cutting platform and the synchronization control level of the control system

* Cutting speed

After meet the demand of fiberglass cutting precision then we can talk about with the cutting speed,HITEC CNC fiberglass knife cutting machine adopt Japan Yaskawa servo motor and driver, provide optimum cutting performance and fast, accurate results.

* Automatic layout optimization

Our fiberglass fabric cutting machine operation simple, easy to understand and not complicated,the graphics library should be more flexible and AutoCAD graphics also can be used in typography.

* Easy maintenance

The machine is equipped with I/0 signals and sensors,if the some device of the fiberglass cutting cnc machine meet problem,you see the I/0 signal state on the LED screen,it is more convenience and easy to find fault and replace the parts.

* Saving consumption

Our fiberglass oscillation cutting machine with fast cutting speed anf high cutting precision,save time,save labor and save cost.machine cutting with knife blade,no burn no smoke is good to the environment protection .

* More safe for operation

Equipped with infrared security devices , can effectively protect the safety of the operator

Certifications

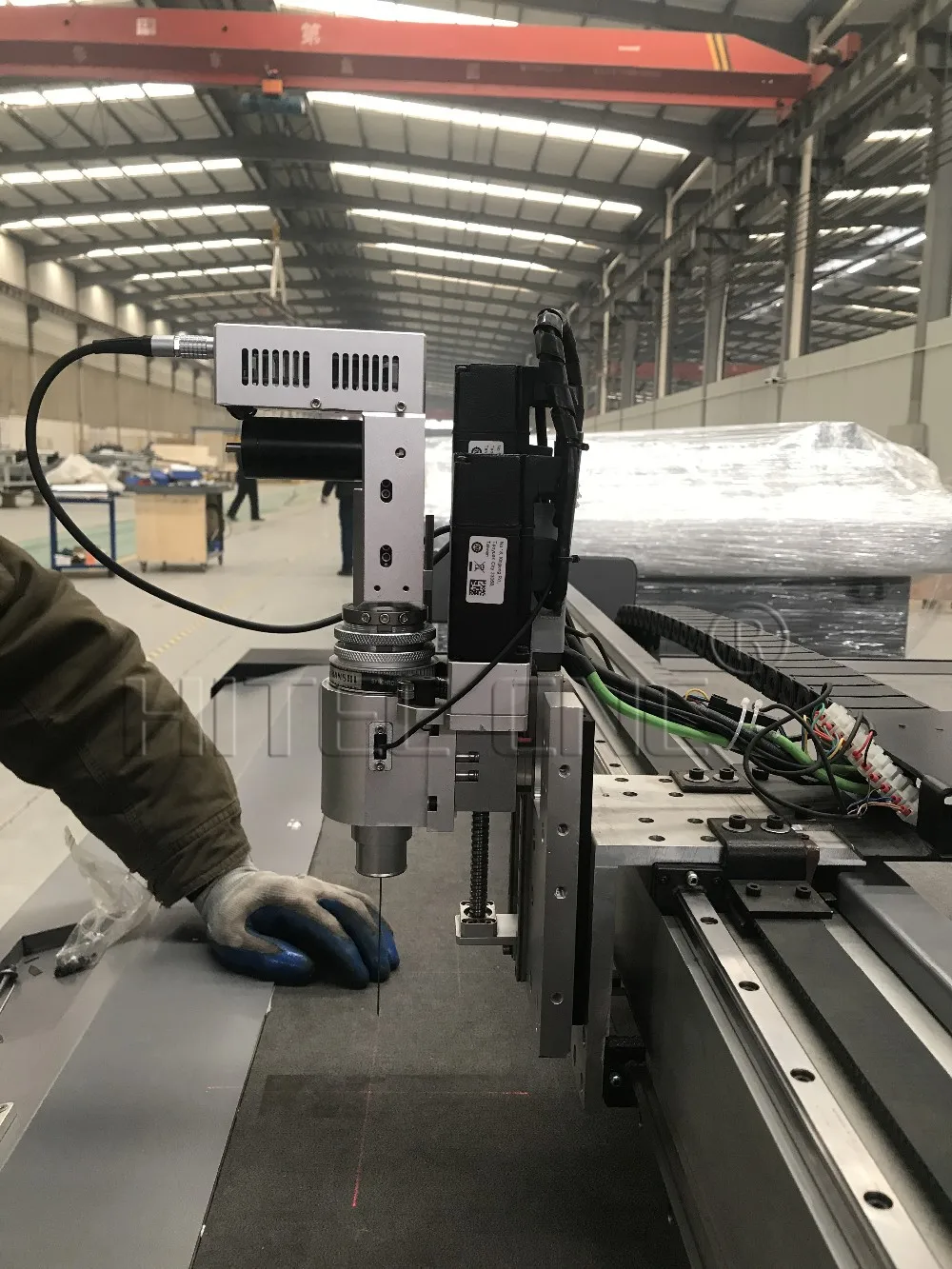

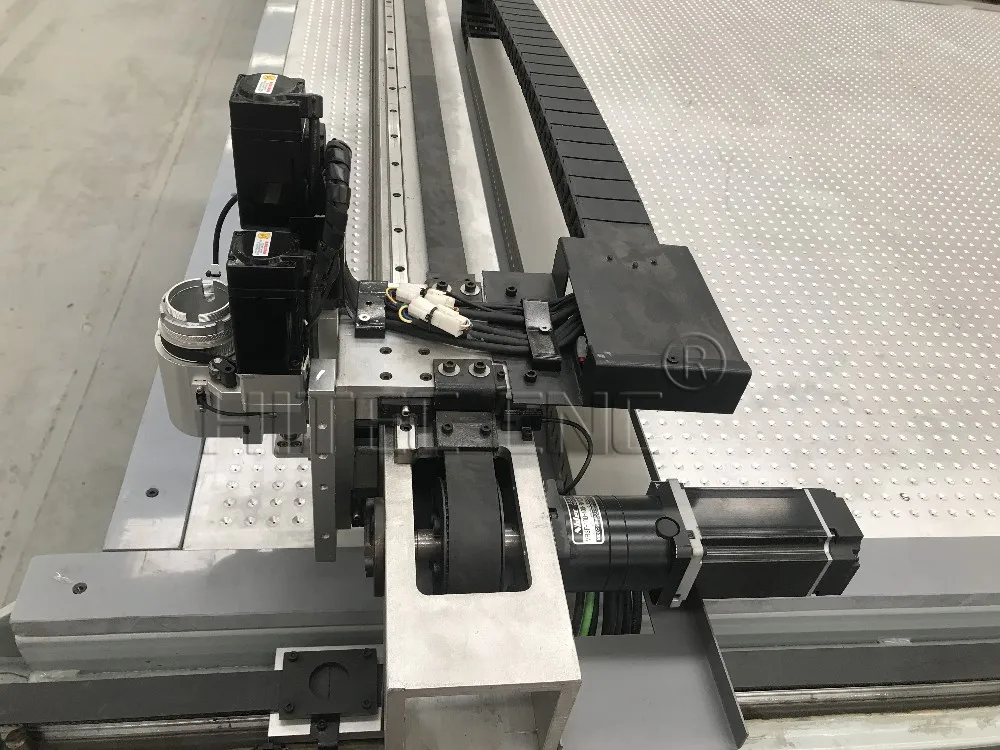

Detailed Images

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

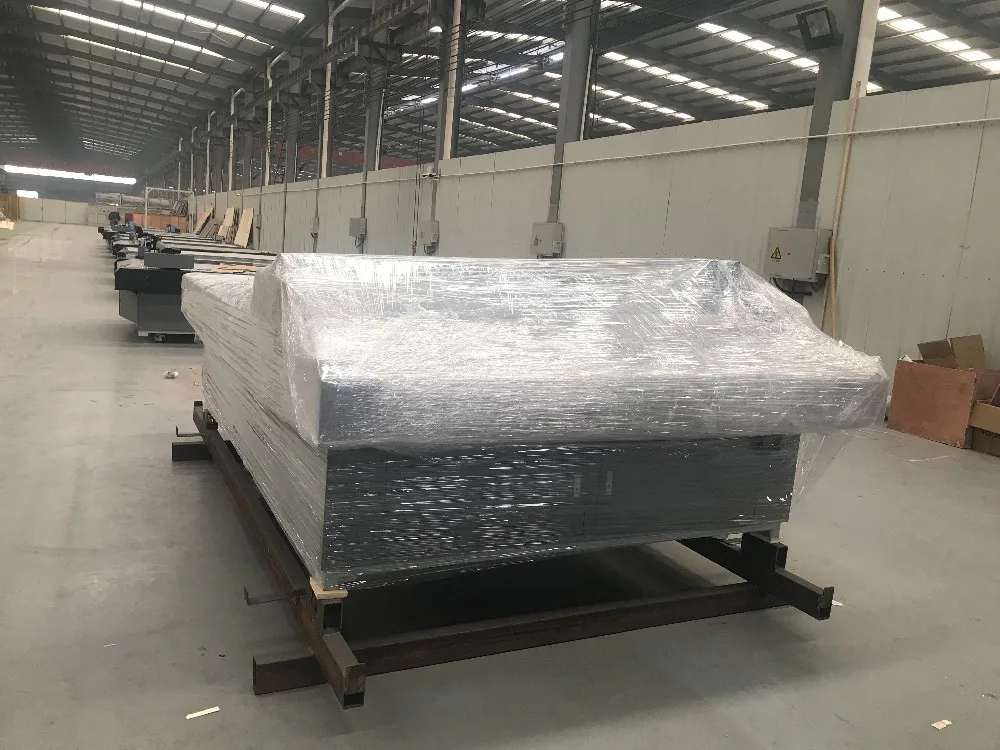

Packaging
Size	3400(L) * 2800 (W) * 1300 (D)
Weight	1200KG
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

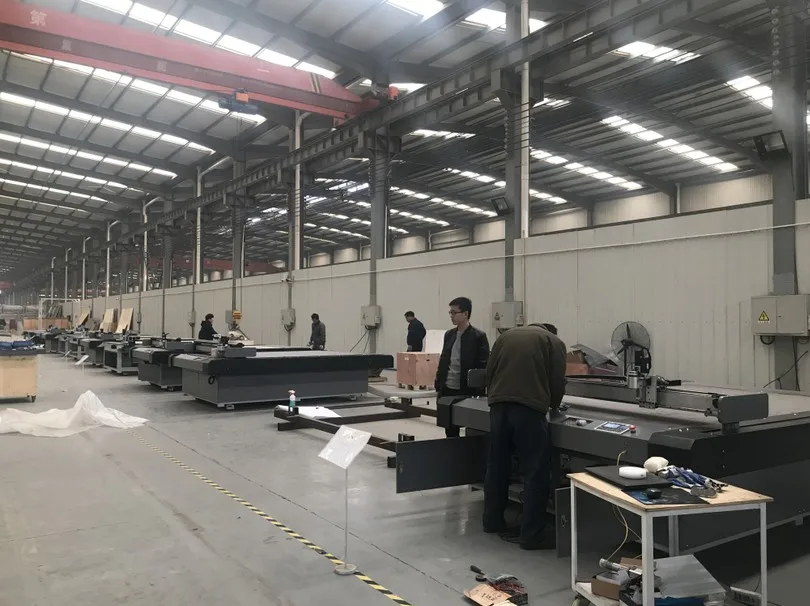

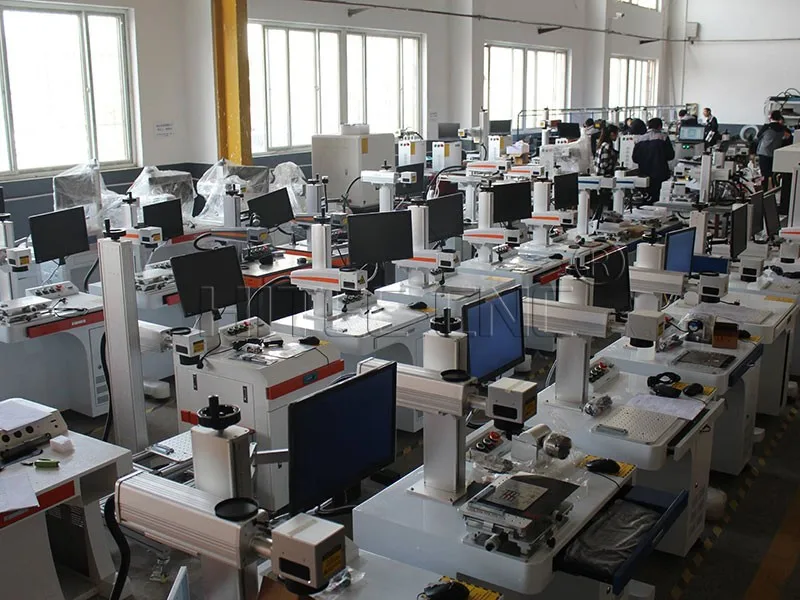

Our Company

Cnc Laser Engraving and cutting machine

Inclued :co2 laser cutting machine,metal laser cutting machine,fiber laser cutting machine,metal&nometal laser cutting machine

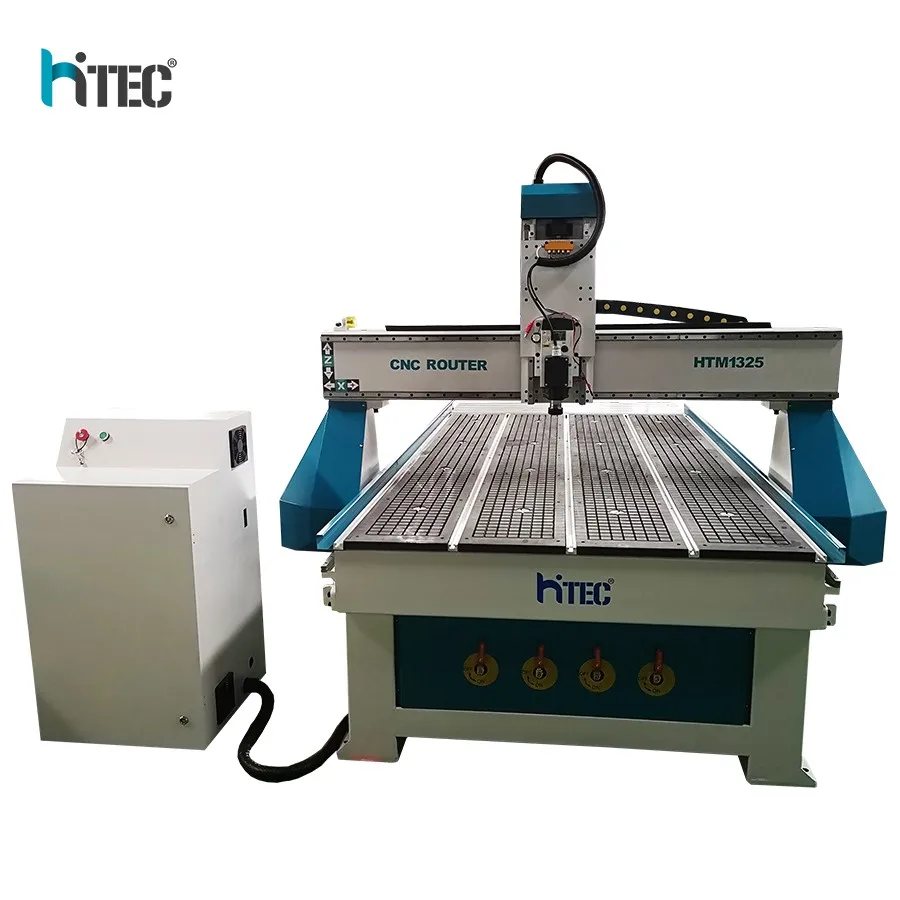

Cnc Wood Router

Inclued :2&3D cnc router,3axis atc cnc router,4axis cnc router,5axis cnc router also the hot sale advertising cnc router.

Cnc Marking Machine

Included: fiber laser marking machine,co2 laser marking machine ect.

FAQ

Q1: I need a cnc router, can you give me some suggestions?

Sure, please send us inquiry and tell us your processing materials,size and thickness, we will recommend you suitable model.

Q2: which kind of materials can be processed on this machine?

Most of nonmetal and metal materials, such as wood,MDF,aluminum,acrylic, aluminum and so on.

Q3: Are you a factory or trading company?

We are the manufacturer and we have over ten years factory experience .And we welcome you to visit us.

Q4: How long is the delivery time for this Professional manufacturer for cnc wood engraving engraving cutting cnc furniture machine?

For standard machines, it would be 12-15 days; For non-standard machines and customized machines according to client s specific requirements, it would be 20 to 25 days.

Q5: How should I pay for my order ?

You can do 30% prepayment at first, then we will start to make production. After finish production,shipping,then you can pay that 70% balance.

1325 cnc router

laser engraving machine

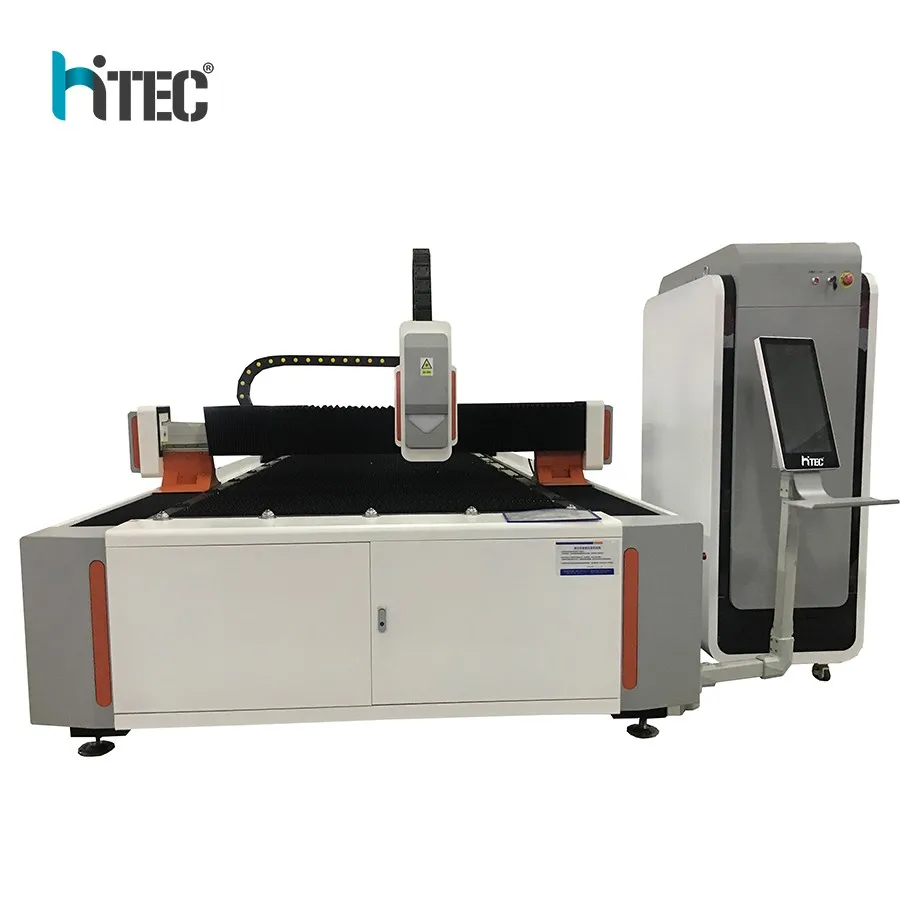

fiber laser cutting machine
