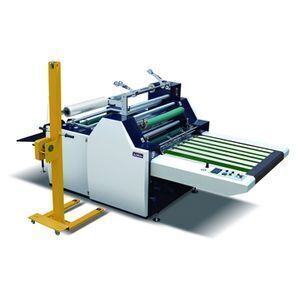

GF-920 Semi Automatic Paper thermal Laminating Machine

Supplier: Ruian Lixin Printing Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Mr. Tommy Woo
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Field installation, commissioning and training,Field maintenance and repair service;	Place of Origin:	Zhejiang China;
Type:	Paper laminating machine;	Port:	Shanghai/Ningbo;
Packaging Detail:	1.Oil Cover 2.Stretch film 3.Silver Vacuum packing 3. Strong Wooden case;	After-sales Service Provided:	Engineers available to service machinery overseas;
Brand Name:	LIXIN;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Liquid Crystal Touch Screen:	Thin paper receving roller;	Warranty:	One Year;
Certification:	CE;	Automatic Grade:	Semi-Automatic;
Condition:	New;	Supply Ability:	15 Set/Sets per Month;
Weight:	1500KG/1700KG;	Voltage:	AC380V/3PH/50HZ;
Payment Terms:	L/C,T/T,Western Union,MoneyGram,By Cash;	Dimension(LWH):	38501760(1940)1600MM;
320mm Dia.of Oil heating Roller Dia.:	Electrical Motor controls Paper Front lay;

Product Description

Product Application

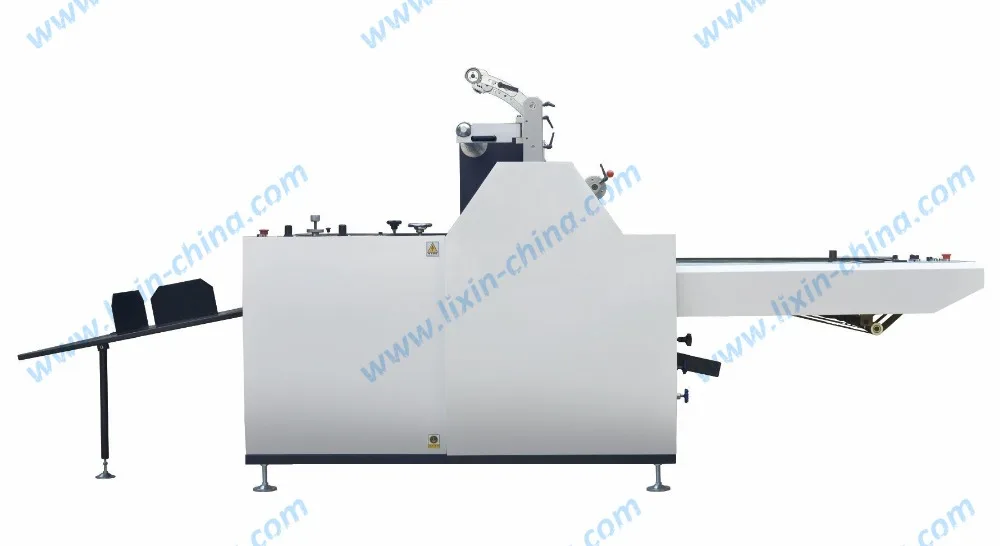

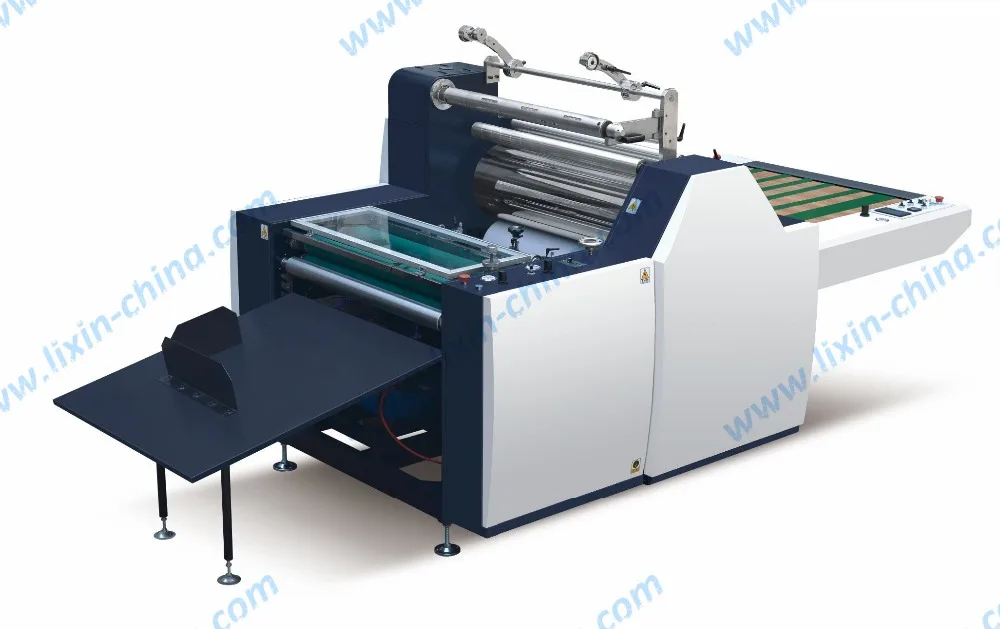

GF-920-1100 Semi Automatic Thermal bopp Film Paper Laminating Machine series of semi-auto laminator, a competitive laminating machine with high technical content, excellent quality and original appearance, is designed and manufactured elaborately upon the combination of the advanced technology of international similar products and more than 20 years of manufacturing experience. It is of compact structure, small space occupation and easy operation. All main components adopt international noted brands. The machine integrates on design the excellent performance of many different semi-automatic laminators, and is additionally equipped with corrugating delivery system, air blowing assiting system etc. to settle completely a long time of technical matter, crimping trouble of lamiated thin paper.

SPECIFICATIONS
Model	GF-920	GF-1100
Max. Laminating Width:	880mm	1080
Paper Weight	105-500g/m2	105-500g/m2
Laminating Speed	0-40m/min	0-40m/min
Laminating temperature	90℃~130℃	90℃~130℃
Laminating Pressure	10~16MPa	10~16MPa
Voltage	AC380V/3PH/50HZ	AC380V/3PH/50HZ
Gross Power	15kw	16kw
Total Weight	1500kg	1700kg
Overall Dimensions:	385017601600mm	385017601600mm

Main Features

1. Combining Film serrated perforating wheel, laminated paper perforating wheel and rotary cutter devices for different products.

2. Adopting Anti-curvature device to level laminated paper, and it won’t curve again after separation.

3. Adopting larger high precision chrome plating mirror roller (Φ320mm) with oil-heating system and heat Resisting-pressing endurable rubber roller to improve the efficiency.

4. Adopting PLC to realize paper separation and errors alert to self-protection functions etc.

5. Adopting tension pneumatic control system to release films, and the film releasing tension can also be adjusted upon requests.

6. Equipped with air blowing device for thin paper output.

7. Air expansion shaft releases film roll and positions film roll more accurately, and also makes the loading and unloading of film roll more convenient.

8. Automatic hydraulic system.

9. Man-machine PLC interface system positions paper overlap exactly, and color touch screen simplifies the machine operation.

10. Paper front lay device. (Optional)

Adopting the rotary cutter to cut the laminated paper for improving the efficiency.

11. Film load-unloading lifter. (Optional)

12. Thin paper wind roller. (Optional)

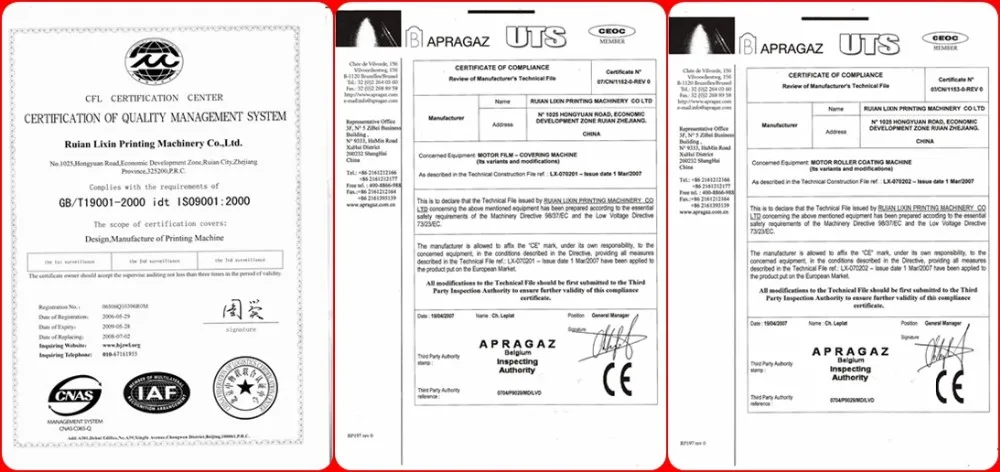

Certifications

Detailed Images

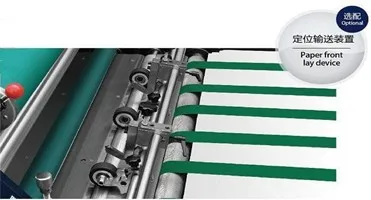

1.Paper Front Lay device

Manual feeder quickly and Control the overlap exactly

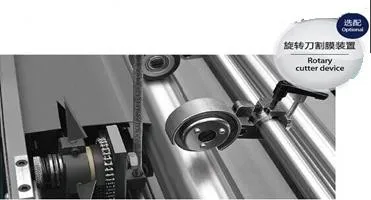

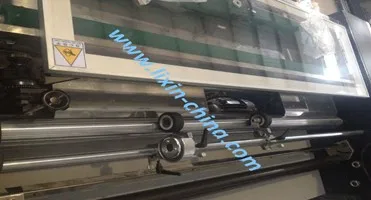

2. Rottary Knifies and Perforating Wheel

Double separating device for stable working.

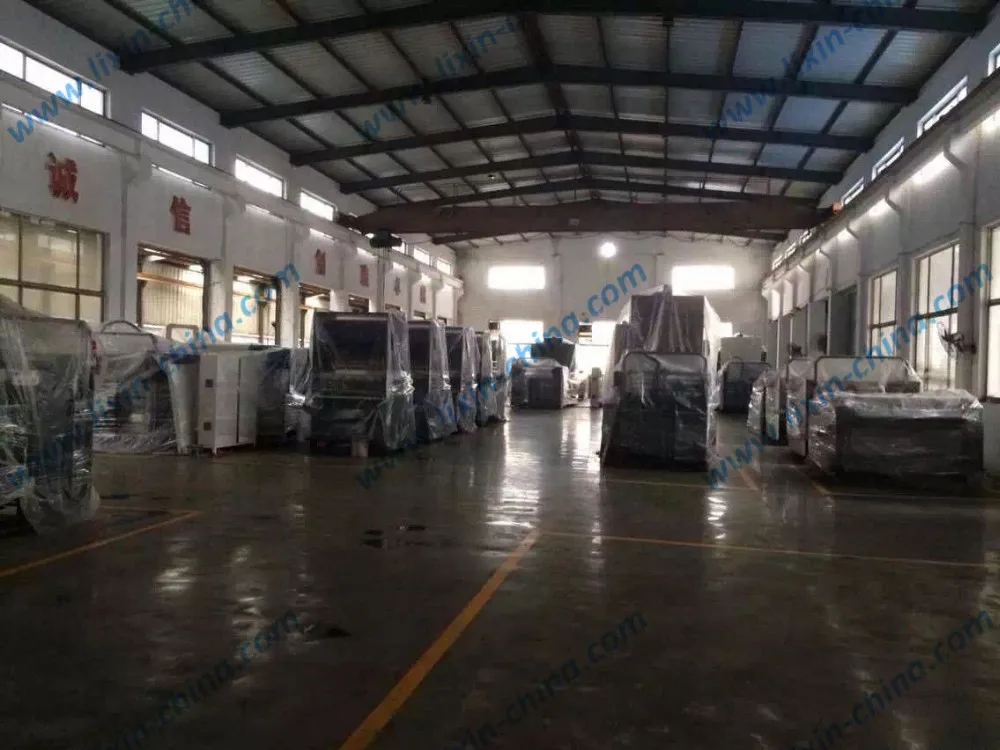

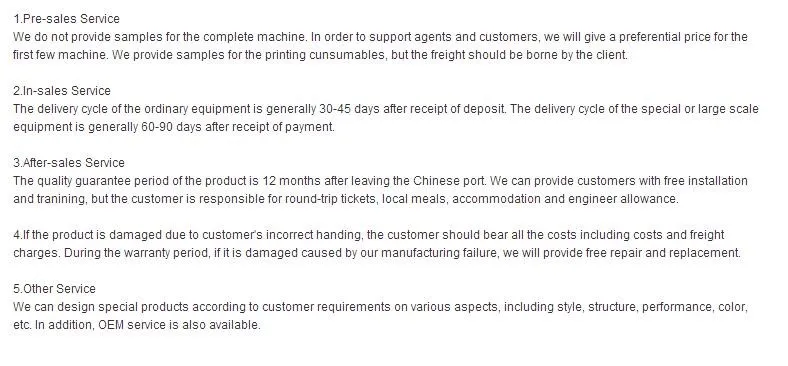

Our Service

Packing & Delivery

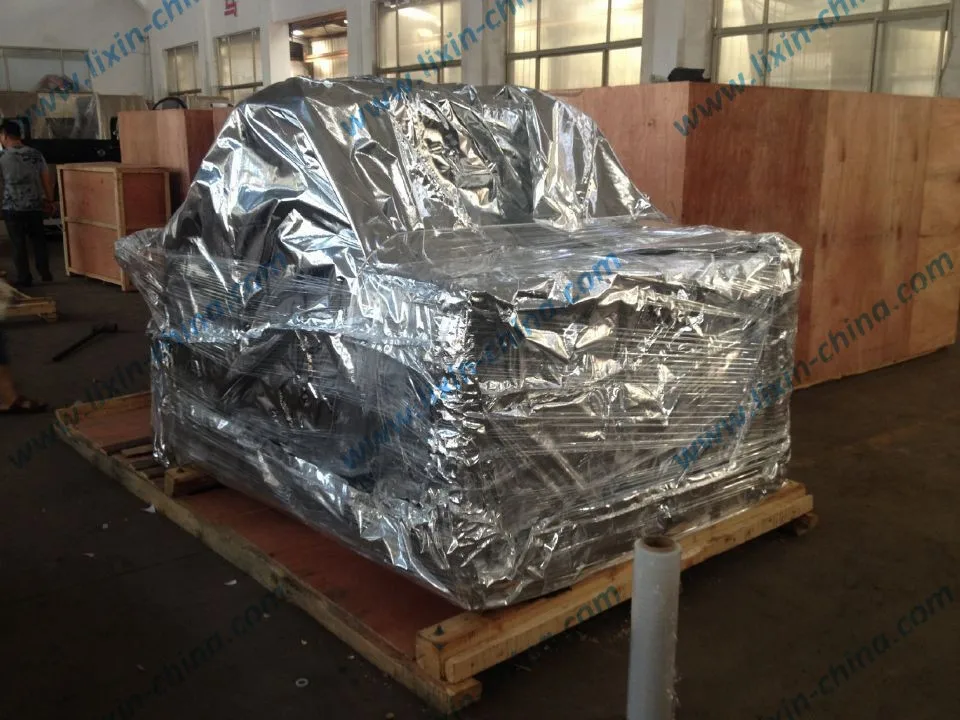

Packaging
Size	3200 (L) * 2000/2200 (W) * 1800mm (D)
Weight	1700/1900kg
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
