QSGC-1000/1200 UV Vanishing Machine

Product details
Delivery Detail:30 days;Computerized:Yes;
Voltage:380V;Packaging Detail:Export standard and Sea-worthy wooden case;
Condition:New;Model Number:QSGC-1200;
Type:UV Varnishing machine;Max working speed:60m/min;
Port:Ningbo / Shanghai;Brand Name:LIXIN;
Payment Terms:L/C,T/T,Western Union;fit paper thickness:80-600g;
Dimension(L*W*H):13500*1700*1600MM;Weight:4800KG;
Warranty:ONE YEAR;Place of Origin:Zhejiang China;
Supply Ability:10 Set/Sets per Month;Power(W):49KW;
Certification:CE Certificate;After-sales Service Provided:Engineers available to service machinery overseas;

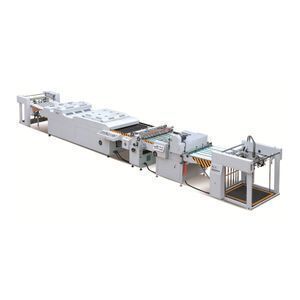

QSGC-1200 UV Vanishing Machine

QSGC model UV coating machine is a high-tech procuct with light, machine,eletricity and gas, QSGC model UV coating machinecan be used for both thick and thin paper, realizes whole-course automation and adopts belt conveying with high speed and efficiency. The machanical speed adopts variable frequency step less speed regulation and can reach maxumum speed of 60 m/min. QSGC model UV coating machine has independent space for every working station and it can be assemble bases the client request, so QSGC model UV coating machine is suitable for being used in large printing enterprise.





a)       automatic feeder

  1. Double-sheet controller. Automatic machine stop function
  2. Up and down limitation protection
  3. High reliability paper transfer sucker

b)      three rollers water powder removing

  1. apply water cycle and special rubber surface to cling the dust
  2. adjust pressure to run the powder removing

c)       UV coating unit(with air knife equipment)

  1. paper winding malfunction emergency stop and warning system.

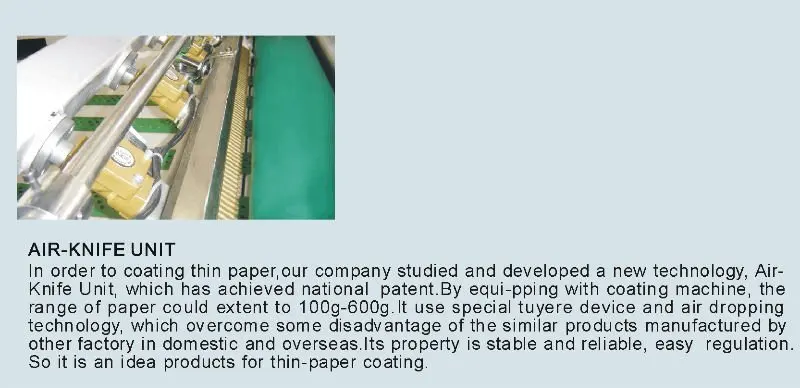

  2. According the thin paper is difficult to be coated, our factory specially research the air-knife equipment, it belongs to selection unit. It makes the range of paper can extent to 80g-600g. the air-knife unit has achieved national patent. the air-knife unit is controlled by two groups electric eyes, when the thin paper get through the coating rotary drum and pression rotary drum, thin paper is very easy to adsorb the rotary drum,and at the moment air-knife unit erupt the gases to make paper break away form the rotary drum. After that the thin paper can be delivered by the conveyor belt smoothly.
  3. Low speed inch move adjustment

d)      IR drying system

  1. automatic rectification system of transport belt
  2. automatic temperature adjustment system
  3. IR tunnel lifting mechanism by cylinder

e)       UV solidify system

  1. exhaust system control by program
  2. UV transfering net stop and automatic extinguish function. Light case automatic lift
  3. Transferring belt rectify automatically

f)        automatic delivery

  1. thin paper guiding equipment and mechanical side layer
  2. photocell sensor automatic down.



QSGC model UV coating machine

1200

1000

720

Max.width

910*1140

910*950

650*546

Min.width

406*340

406*340

406*340

Fit paper

80-60g

80-60g

80-60g

Max paper feeding speed

5000p/h

5000p/h

5000p/h

Max work speed

60m/min

60m/min

60m/min

Infrared

18kw

18kw

12.75kw

Ultraviolet

24kw

24kw

16.8kw
