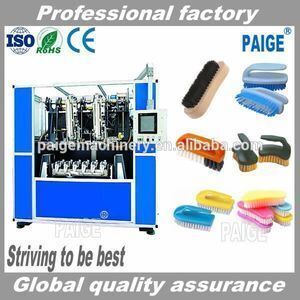

5 axis 3 drilling 2 tufting machine/brooms toilet tufting drilling machine brush making machine

Click here to contact

Product details

Certification:	ISO 9001 CE;	Power(W):	3KW;
Payment Terms:	L/C,T/T;	Brand Name:	PAIGE;
Model Number:	PG-CNC5A3H;	Dimension(LWH):	2.5M1.4M1.98M;
Packaging Detail:	Wooden Case;	Voltage:	3/380V;
Port:	Shanghai;	Supply Ability:	10 Set/Sets per Month;
Warranty:	1 Year;	Condition:	New;
Production Capacity:	900Holes/min;	After-sales Service Provided:	Overseas service center available;
Weight:	1500kg;	Automatic Grade:	Automatic;
Application:	Makng Brush;	Delivery Detail:	35days;
Place of Origin:	Jiangsu China;

Specification

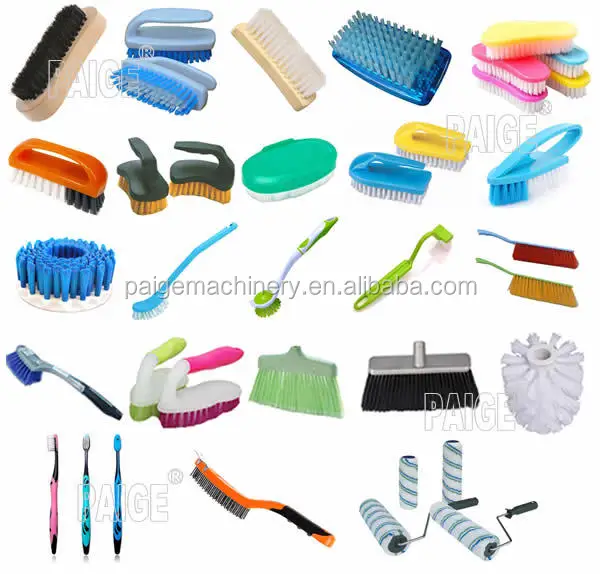

Product Sample

Technology

PG-CNC5A3H 5 Axes 3-Head Brush Drilling And Tufting Machine Feature:

Model	PG-CNC5A3H 5 Axes 3-Head Brush Drilling And Tufting Machine
NO. of axis	5-axis
Qty of heads	3 Heads,2 drilling heads and 1 tufting head.
Setting of Worktable	high-precision straight-line rail and ball screw,steady and durable.
Material of Brush Handle	Polyethylene, polystyrene, return materials, wood
Material of filaments	PP,PET,PVC,STEEL WIRE
Diameter of filaments	0.08mm-1.2mm
Application	To make varieties of toilet brushes and radial brushes
The length of filament(outside the hole)	15-110mm
Diameter of hole	3.0mm-8.0mm
Colors of Brush Filaments	double colors
Maximum Drilling and tufting Speed	450 holes/minutes
Max Speed	15000n/min
High Speed Motor	Delta High-Speed Motor
AC motor	Delta Brake Motor
Type&Brand of Driver/Motor	Delta servo motor by default, can adopt some brand motor&driver requested by users.
Adjust Speed	Frequency-conversion stepless-adjustable speed
Replaceable Fixture	FMS type. It can be easily changed to make other kinds of brushes.
Head mode	Anchor or Staple
Programme Storage	Store 2000 programme,each can imput 100 thousand processing data.
Program System	CNC system,high precision,stability and efficiency
Dimension(LWH)	2500mm×1400mm×1980mm
Gross weight	2700kgs
Power	AC three phases 380, 50Hz
Total power	3KW
Compressed Air Pressure	0.6-0.8Mpa

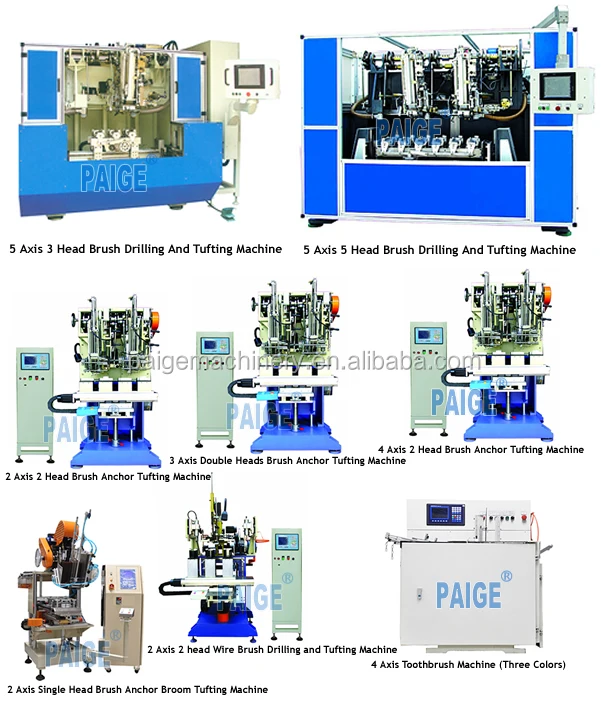

Product Show
