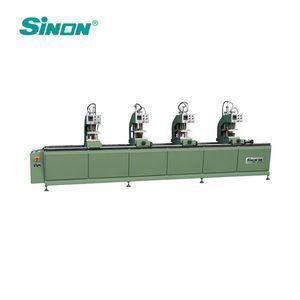

China Four Head Welding PVC UPVC Door Window Making manufacturing Machine

Supplier: Jinan Sinon CNC Machine Co., Ltd.
Region: Shandong, China
Contact: Mr Steve Song
Price: $3500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimension(LWH):	540011001700mm;	Product name:	China Four Head Welding UPVC Door Window Making Manufacturing Machine;
Warranty:	1 Year;	Welding Height:	20-120mm;
Brand Name:	SINON;	Applicable Material:	PVC,UPVC,vinyl;
Supply Ability:	30 Set/Sets per Month;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
After-sales Service Provided:	Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;	Profile:	UPVC PVC Profile;
Production Capacity:	50windows per day;	Weight:	1500kg;
Voltage:	380V;	Packaging Detail:	Wooden Package;
Port:	Qingdao;	Dimension(LWH):	540011001700mm;
Weight:	1500KG;	Welding Width:	0-120mm;
PLC:	Japan Omron;	Power(W):	4.5kw;
Application:	upvc window making machine;	Welding Range:	400-4500mm;
Certification:	CE;	Service:	Engineers available to service machinery overseas;

UPVC WINDOW MACHINE

PRODUCT CATEGORIES

GET BEST QUOTE →

Cutting Machine →

Welding Machine →

Milling Machine →

Corner Cleaning Machine →

China Four Head Welding PVC UPVC Door Window Making Manufacturing Machine

Product Description

Features

Popular machinery type with 0.2mm welding.
Various angles welding between 30 to 180 degree is available on last machine head.
Solid machinery base and structure ensure long life service with high dimension accuracy.
profile fixture ordered separately can meet various height profiles' processing requirement
Special profile fixture is easy to change, for high corner strength and later good cleaning
Each machine head can be working separately or combination.

Technical Parameter

Product Name	Four Corner welding upvc window making machine
Model	Four-head	Three-head	Two-head
Input power source	380V/50Hz		220V/50Hz
Total power	4.5Kw	3.5Kw	2.5Kw
Working air pressure	0.5~0.8MPa
Air consumption	200L/min	150 L/min	100 L/min
Height of welded profile	20-120mm 20-170mm(optional)
Width of welded profile	0-120mm
Welded range	400-4500mm	400-3500mm
Dimension	5400×1100×1650mm	440011001650mm
Weight	1500kg	1300Kg	1100Kg

Optional Models

Manual portable welding machine
Single head welding machine (normal) HJ02-120
Single head variable welding machine special for arch window SHD01-120
Four head welding machine (normal) HJ02-4500.4/4.A
Double / Four head seamless 0.2mm welding machine WHJ-3500*2
CNC four corner welding machine SHP4-CNC-180*1800*3000
Welding-Cleaning line SHQXJ01

Details Photoes

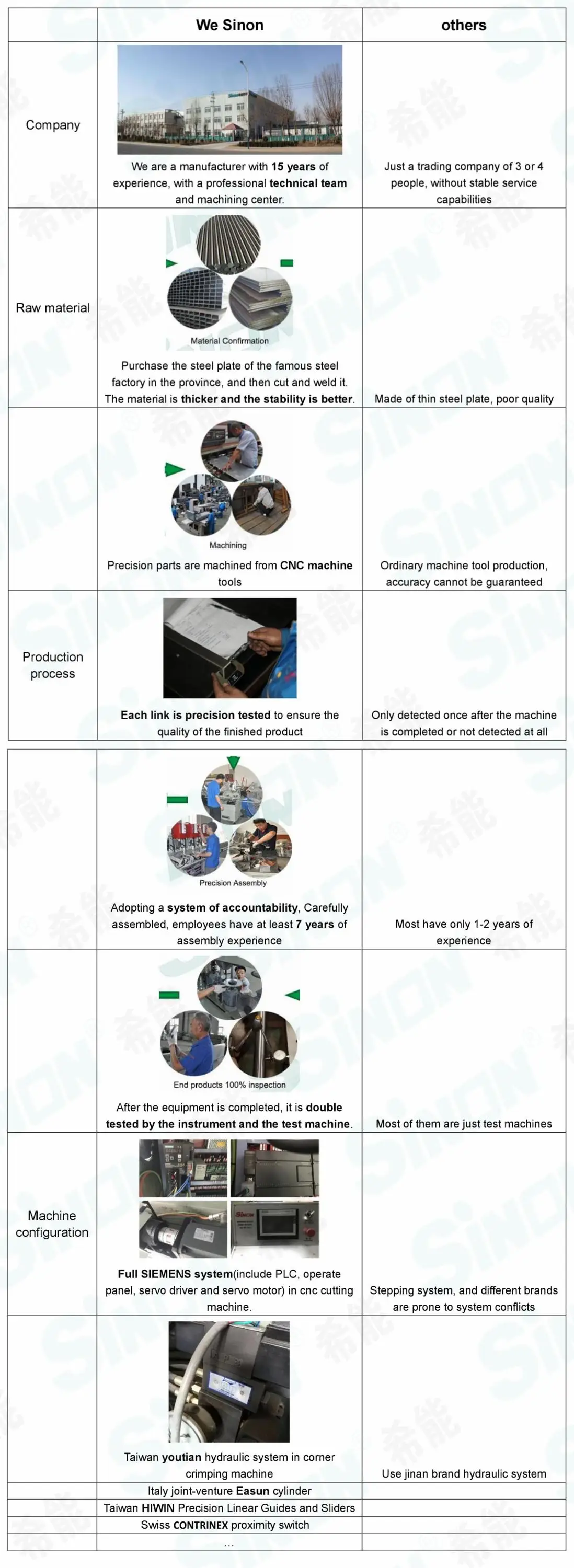

ADVANTAGE

High capacity

High standard

OEM &ODM

Professional service team

Quality has a long tradition at Sinon. Quality and innovation are the supporting pillars of our company.

From raw materials, machining, assembly, inspection, finished products to packaging, each link we strictly control, to ensure that the best quality products to customers.

Hot sales

Sinon Brand Double Head CNC Aluminum Cutting Machine

China Four Head Welding PVC UPVC Door Window Making Manufacturing Machine

cnc aluminum Drilling and Milling Machine with CE certificate

Packaging & Shipping

Sinon produce high quality machines, also pay attention to package. The machines will be packed with steel pallet and standard export wooden case.

COMPANY

About

Sinon, one of the leading companies specializing in the field of window machines required for manufacturing Aluminium and uPVC windows and doors in China.

Using the newest technologies that are discovered for the area of window and door production, Sinon constantly improves and updates the window and door manufacturing equipment and window machines designs according to market requirements.

The window machines assortment of the company includes various models of upvc window machines and aluminium window machines especially built for a smooth and reliable window manufacturing experience.

Sinon have exported to more than 40 countries and areas

History

HISTORY

Since its establishment, Sinon has been committed to the R&D and manufacturing of aluminum / PVCdoors and Windows processing equipment in the industry first proposed aluminum / PVC doors and Windows standardized production solutions and industry 4.0 intelligent machine tools solutions.Sinon is the advocate and forerunner.

2003

Set up

The company was born in a machining workshop in jinan. As the founder was a technical background, the complete set of PVC doors and Windows processing equipment was shut down within half a year. At that time, we mainly worked as OEM for import and export trading companies to win customers' trust.

2008

Develop and grow stronger

Gradually perfect into an enterprise with technology and quality as the core, and cooperate with shandong technology college, and set up a machining workshop.

2013

Expand

Sinon owned 20 mu of industrial land in the development zone of jinan lingang, and built more than 7000 square meters of plant in the same year

2015

Keep Moving

The company has successfully developed the sunlight room large section cut saw, the system door window assembly line special equipment and so on, and obtained many national technology new patent.

FAQ

FAQs

Are you trading company or manufacturer ?

We are manufacturer and trading (integration).

How long is your delivery time?

Generally it is 3-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.

If I want whole production line for alulminum window, what machines do I need?

At least 5 machines, they are

1.Double / single head cutting machine 2. End milling machine 3. Copy routing machine 4. Punching machine 5. Corner crimping machine

What can I get the price?

We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.

How does your factory do regarding quality control?

We have strict control in testing of raw material, production process and final process. Only qualified products can be sent out.

What is your terms of payment?

30% TT deposit,70% balance before shippment . Or L/C or Western Union

What is your term of delivery?

We accept EXW, FOB or CNF. You can choosethe one which is the most convenient or cost effective for you.

If I want whole production line for upvc windows,what machine do I need?

At least 7 machines, they are

1. Double / single head cuttng machine 2. Welding machine 3. V cutting / end milling machine 4. Glazing bead machine 5. Lock hole machine 6. Water slot milling machine 7. Corner cleaning machine
