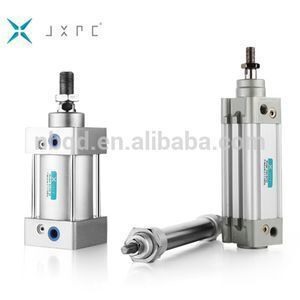

100% Tested Aluminum Standard Pneumatic Cylinder
- 5.00 >=10 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Maximum Stroke: | 100mm; | Max.Pressure: | 1.0MPa; |
| Payment Terms: | L/C,T/T,Western Union,MoneyGram; | Body Material: | Aluminum; |
| Working Medium: | Filtered Air; | Environment And Fluid Temp: | -5~+70℃; |
| Brand Name: | JXPC; | Operating Speed: | 50-800mm/s; |
| Model Number: | DNC Pneumatic Cylinder; | Supply Ability: | 5000 Set/Sets per Week Sending pneumatic cylinder samples in 7 days.; |
| Port Size: | G1/8", G1/4", G3/8", G1/2"; | Buffer: | Air Buffer (Standard); |
| Ensured Pressure Resistance: | 1.5MPa; | Standard or Nonstandard: | Standard; |
| Power: | Pneumatic; | Shaft Diameter: | 32, 40, 50, 63, 80, 100mm; |
| Packaging Detail: | For our pneumatic cylinder, 1.International standard cartons with JXPC brand 2.OEM: without any logo 3.Customized packages Plastic pallet and wooden pallet is available.; | Port: | Ningbo, Shanghai; |
| Motion Pattern: | Double Action; | Structure: | Piston Cylinder; |
| Min.Pressure: | 0.1MPa; | Place of Origin: | Zhejiang China; |
| Name: | Pneumatic Cylinder; |
Product Description
- Product Name : Air Cylinder
- Model : DNC Series
- Action Type : Double Action
- Port size: G1/8 G1/4 G3/8 G1/2
- Max Pressure : 1.0Mpa
- Material : Aluminum Alloy
| DNC Series | ||||||
| Bore(mm) | 32 | 40 | 50 | 63 | 80 | 100 |
| Motion Pattern | Double Action | |||||
| Working Medium | Filtered Air | |||||
| Guaranteed Pressure | 1.5Mpa | |||||
| Max operating pressure | 1.0Mpa | |||||
| Min operating pressure | 0.1Mpa | |||||
| Buffer | Air Buffer | |||||
| Condition Temperature | -5-70°C | |||||
| Operating Speed | 50-800mm/s | |||||
| Port Size | G1/8'' | G1/4'' | G3/8'' | G1/2'' | ||
| Standard Stroke | 25 40 50 80 100 25 160 200 250 320 400 500 | |||||
| Buffer Stroke | 20 | 22 | 32 | |||
| Stroke Range | 10-2000 | |||||
