Orally Disintegrating Film Machine / ODF Machine Products from Shanghai Aligned Machinery Manufacture & Trade Co., Ltd.

Product Details

Applicable Industries:	Manufacturing Plant;	Package Type:	Export Wooden Case;
Selling Units:	Single item;	Dimension(LWH):	270012002300mm;
After-sales Service Provided:	Engineers available to service machinery overseas;	Weight:	400kg;
Warranty:	1 Year;	Application:	pharmaceutical;
Condition:	New;	Brand Name:	Aligned;
After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;	Certification:	CE;
Material:	Stainless Steel;	Voltage:	220V;
Power(W):	16kw;	Usage:	Pharmaceutical;
Single package size:	300X200X180 cm;	Single gross weight:	2,500 KG;
Place of Origin:	Shanghai China;

Product Description

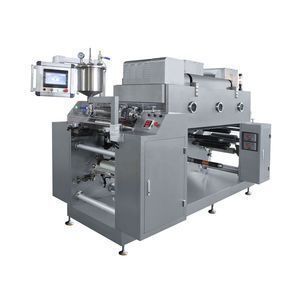

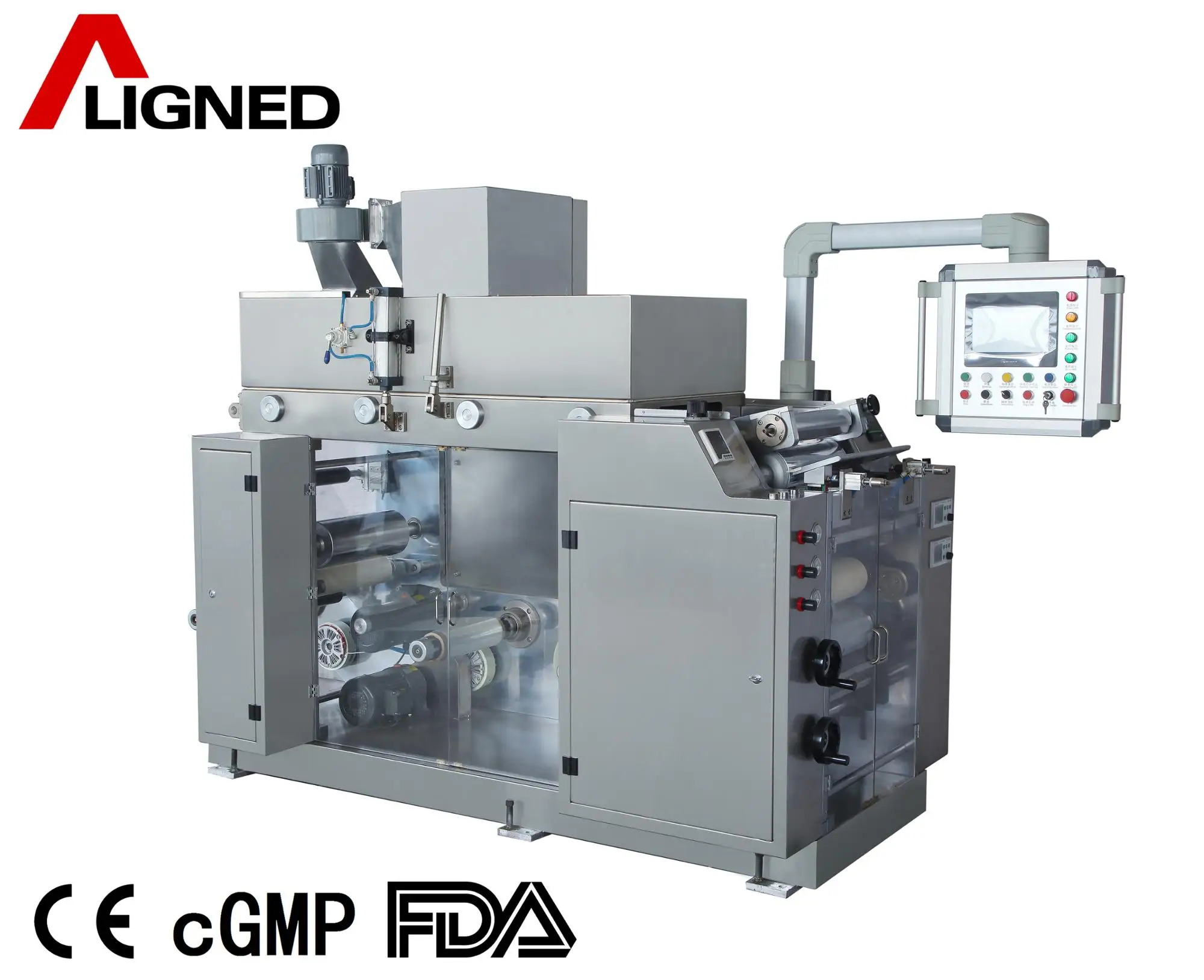

Orally Disintegrating Film Machine

The ODF Machine is specialize designed for manufacture membrane products.
The machine is applied to the production and composite of the roll-type films. And could manufacture the qualified products according to the process requirement.

Detailed

Max production width	300mm
Speed	10m/min (1~8m/min depends on technology)
Method of heat & dry	Heating by external stainless steel heater, hot air circulation in centrifugal fan
Temperature control	30~150℃±2℃
Power	16Kw
Overall dimension	270012002300mm

Detail Information

This machine is suitable for the coating composite production of paper, film, metal foil and etc. The whole power system adopts the AC variable frequency stepless speed regulation system composed of frequency converter. And the winding is manually controlled by the magnetic clutch tension.

The machine also has the functions of automatic working length recording, speed display, oven temperature automatic control and so on. These functions ensure the high efficiency of production and product quality.

All parts in contact with the material and other parts, are made of stainless steel and non-toxic materials, meet the "GMP" requirements.
