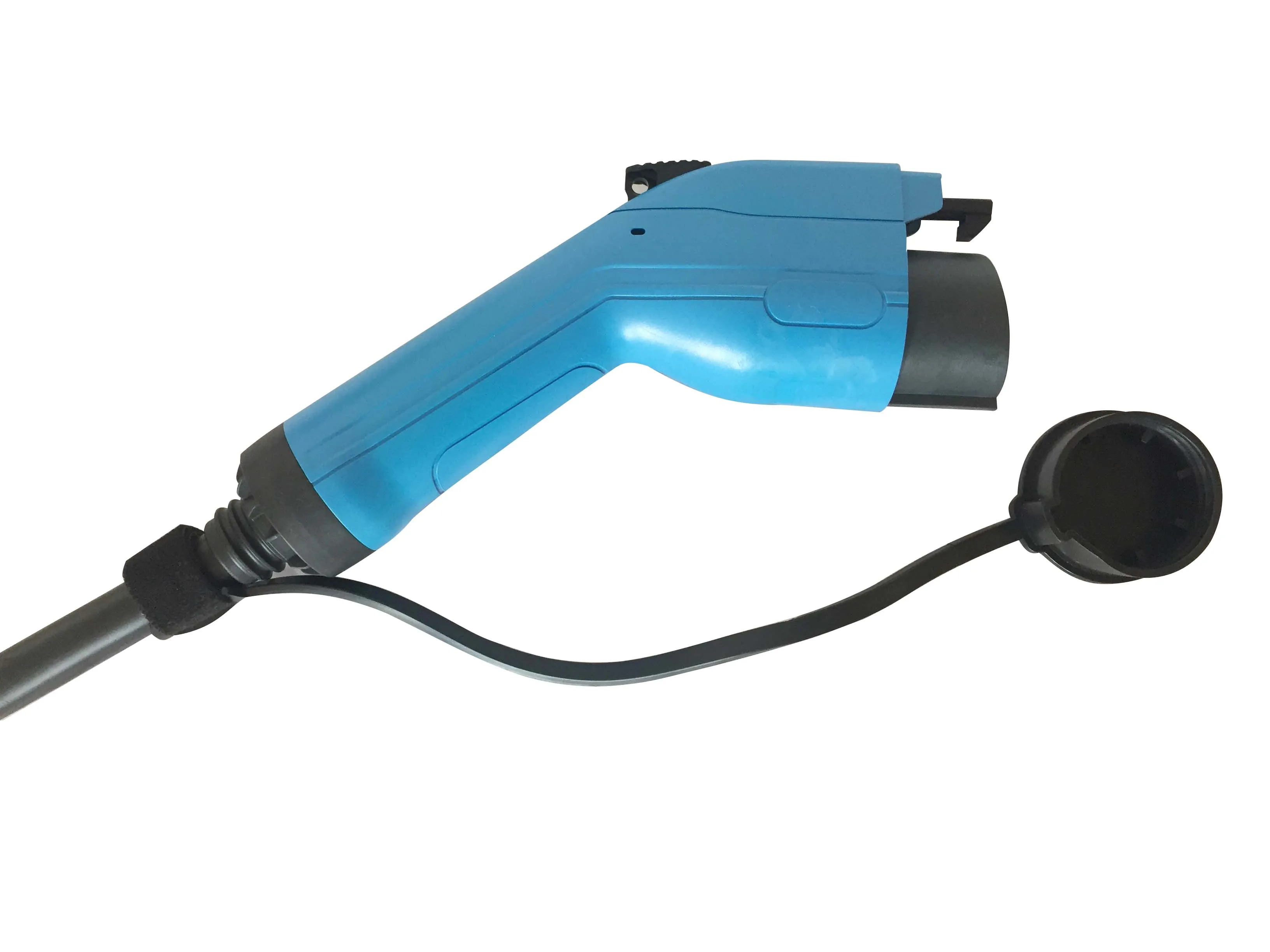

WORKERSBEE AC Mode 3 SAE J1772 EVSE Charging Connector Cable Adapter Type 1 to IEC 62196-2 Type 2 mennekes Ladekabel

  • 40.00 piece
Min. Order: 1 piece FOB PRICE
Contact Supplier View Company
Registered Supplier Direct Contact Inquiry via Message
Product Details
Supply Ability:3000 Piece/Pieces per Week;Place of Origin:Jiangsu China;
Payment Terms:T/T;Rated voltage:240V/480V AC;
Packaging Detail:Cushion Pad,Divider,Sealing;Rated current:16A/32A/40A;
Model Number:16A/ 32A/ 40A 240V / 480V;Port:Shanghai;
Brand Name:workersbee;Type:Plug;
Product Details

General Parameter


■Mechanical Functionarity
Insection Times
≥10000 Times
Impact of External Force
2t Vehicle Roll over + Drop from 2m Height
■ Electrical Functionarity
Terminal Temperature Rising
<50K
Contact Resistance
0.5 mΩ Max
■Operating Enviroment
Operating Temperature
-30°C~50°C
Withstand Pollution Level
Grade 2
Flame Retardant Level
UL94V0
Protection Level
IP55(Plug)
■Main Material
Casing
Insulation Plastic
Insulation Plastic
Copper Core + Silver Plated
■Product Feature
Cable Length
Standard:5m
Product Picture



Product Parameters
■Product Name
AC IEC 62196-2 EV Connector Cable Type 2 Female to Male
AC SAE J1772 EV Charging Connector Cable Type 1 to IEC 62196-2 Type 2
■ Application Standard
Charging Connector
IEC62196-2 Type2
SAE J1772 Type 1
IEC62196-2 Type2
■Mechanical Functionarity
Insertion Force
<80N
Impact Insection Force
>300N
■Electrical Application
Current Rate
16A/32A/40A
Voltage Rate
240VAC~480VAC
■Product Feature
Fixed Current/
Cable Spacification
16A 250V 1 Phase AC/
3×2.5mm²+2×0.5mm²
√
√
16A 480V 3 Phase AC/
5×2.5mm²+2×0.5mm²
√

32A 250V 1 Phase AC/
3×6.0mm²+2×0.5mm²
√
√
32A 480V 3 Phase AC/
5×6.0mm²+2×0.5mm²
√

40A 250V 1 Phase AC/
3×8mm²+2×0.5mm²
√
√
40A 480V 3 Phase AC/
5×8mm²+2×0.5mm²
√

Color
Black Plug
√
√
White Plug
√
√
Blue Plug
(Customized)
√
√
Black Cable
√
√
Orange Cable
(Customized)
√
√
Product Details Show
Exhibition

Power2Drive Europe


Power2Drive Europe


Power2Drive Europe

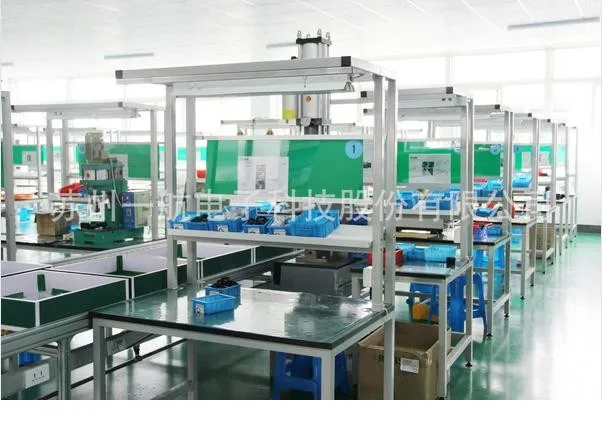

Product Processing
Certification
Main Products

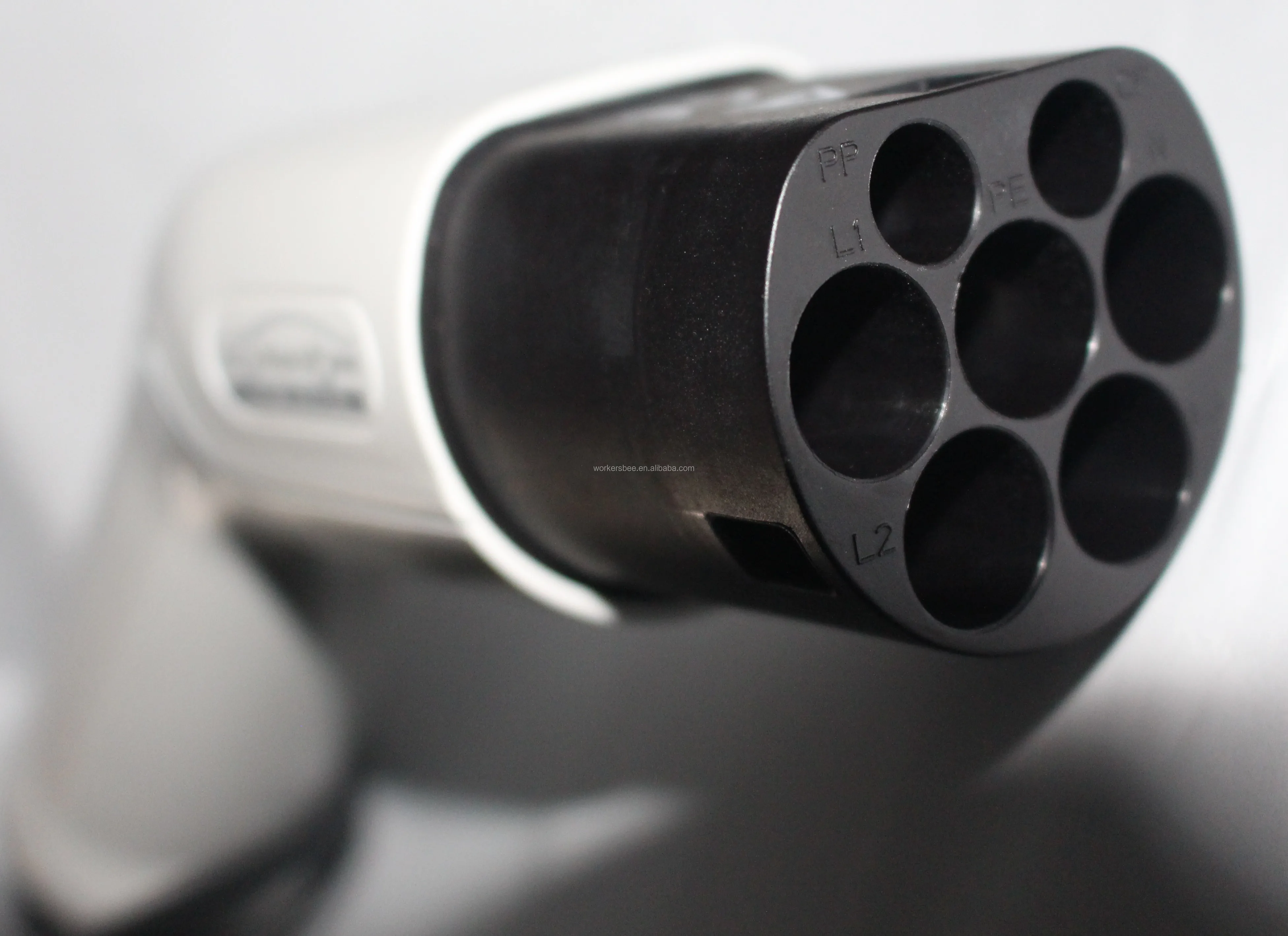

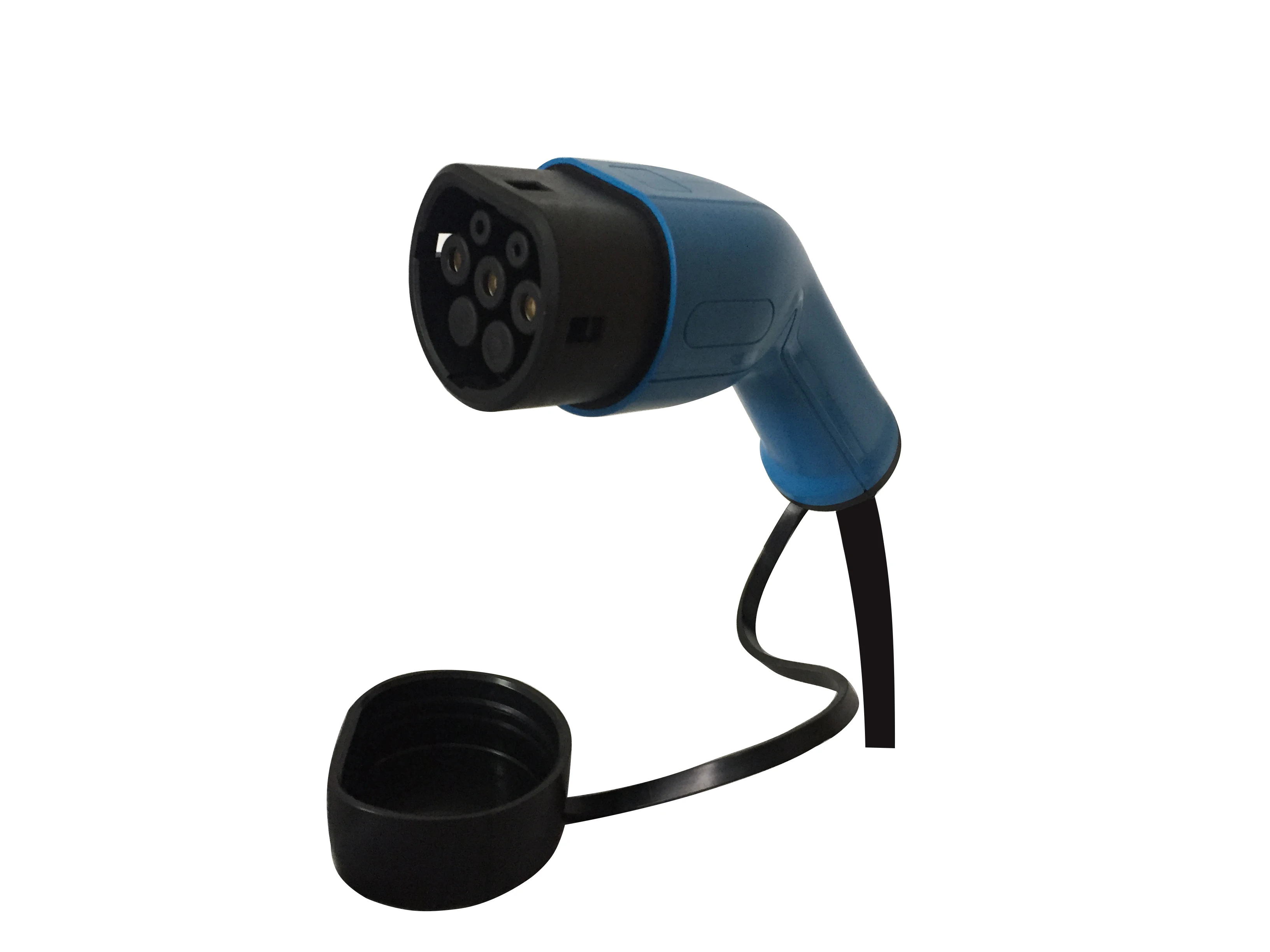

AC IEC 62196-2 Type2 EV Charging Connector Female Plug

16A/32A/40A  250V/480V
Cable Length 5m

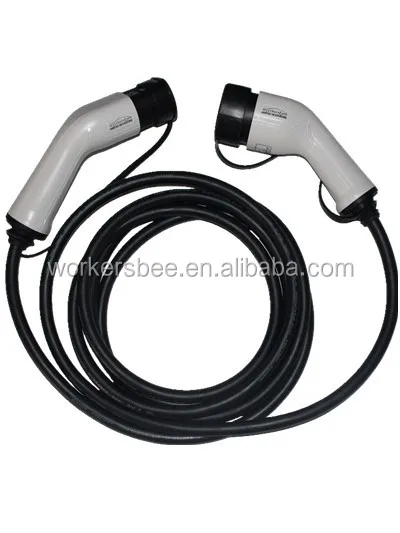

AC IEC 62196-2 EV Connector Cable Type 2 Female to Male

16A/32A/40A 1 Phase/3 Phase

AC SAE J1772 EV Charging Connector Cable Type 1 to IEC 62196-2 Type 2

16A/32A/40A

AC SAE J1772 EV Charging Connector Plug

16A/32A 120V/240V
Cable Length 5m

AC IEC 62196-2 Type2 EV Charging Connector Female Plug

16A/32A/40A  250V/480V

Cable Length 5m

AC SAE J1772  EV Charging Connector Plug

16A/32A 120V/240V
Cable Length 5m
