CNC Plasma Flame cutting controller system F2300B/F2300A

Product details
Single gross weight:5 KG;Dimension(L*W*H):18.4cm*11cm*3cm;
Place of Origin:Shandong China;Weight:3.5kg;
Package Preview:https://sc02.alicdn.com/kf/HTB1rCoEXOfrK1RjSspbq6A4pFXal.jpg_640x640.jpg;Application:cnc plasma cutting machine;
Brand Name:FLSK;Selling Units:Single item;
Applicable Industries:Building Material Shops,Machinery Repair Shops,Manufacturing Plant;Warranty:1 Year;
Condition:New;Certification:ISO9001;
Single package size:38X30X30 cm;

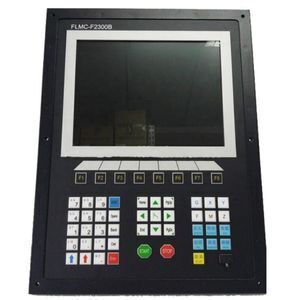

F2300B FLSK-2300B cnc plasma cutting controller

Product Description



(1) 45 categories different graphics (including grid pattern), chip part and hole part are alternative.

(2) Graphics have some operations such as Proportion, Rotate, Mirror.

(3) Graphics can be arrayed in matrix, interaction, stacked modes

(4) According to plate thickness, the cutting speed is automatically restricted by a speed limit in the corner, effectively preventing over burn.

(5) Metric system/ imperia system switch

(6) Steel plate can be adjusted according to any steel side.

(7) Coordinate system can be customized to support the two-dimensional coordinates of all eight kinds.

(8) All input and output port type and the number can be customized (normally open or normally closed)

(9) System and parameters backup, update system online

(10) Chinese / English (including Japanese, Russian, French and other languages )file system and menu can be switched only by one key.

(11) Select row and column manually.

(12) Support edge cutting and offset cutting.

(13) Automatically memorize the working situation and the last cutting point when power off.

(14) Dynamic/static illustration of the process, graphics zoom in / out, dynamically tracking cut-off point under zooming state.

(15) Support artgrave, TYPEIII, PM2000 cam software

(16) Set up different administration authority to and the corresponding password to safeguard the interests of managers.





Parts

1.Monitor: 10.4 inch 800*480, high definition 16 million colors and high brightness LCD
2.Memory: 64M SDRAM
3.Program space available for user: 256M electronic hard disk
4.System master frequency: 400MHz
5.USB: USB 1.1 front interface, at least 16GB U disk supportable
6.Keyboard: electronic PCB foil keyboard
7.Chassis: full-steel structure completely shielded which defends electromagnetic radiation, interference and static electricity





Our Services



Pre-Sales Service

1. Inquiry and consulting support.

2. Sample testing support.

3. Visit our Factory.

After-Sales Service

1. One year warranty, free maintenance throughout service time.

2. 24 hours online service, free technical support through Email, telephone video and so on.

3. Training how to install the machine, training how to use the machine.

4. Engineers available to service machinery overseas.



Model name

suitable for axis

cutting profiles

suitable machine

F2300 A/B

 2~3 axis

pipe and plate

 Gantry type; table type

f2100A/B

 2 axis

plate

 Table type ;Portable type
