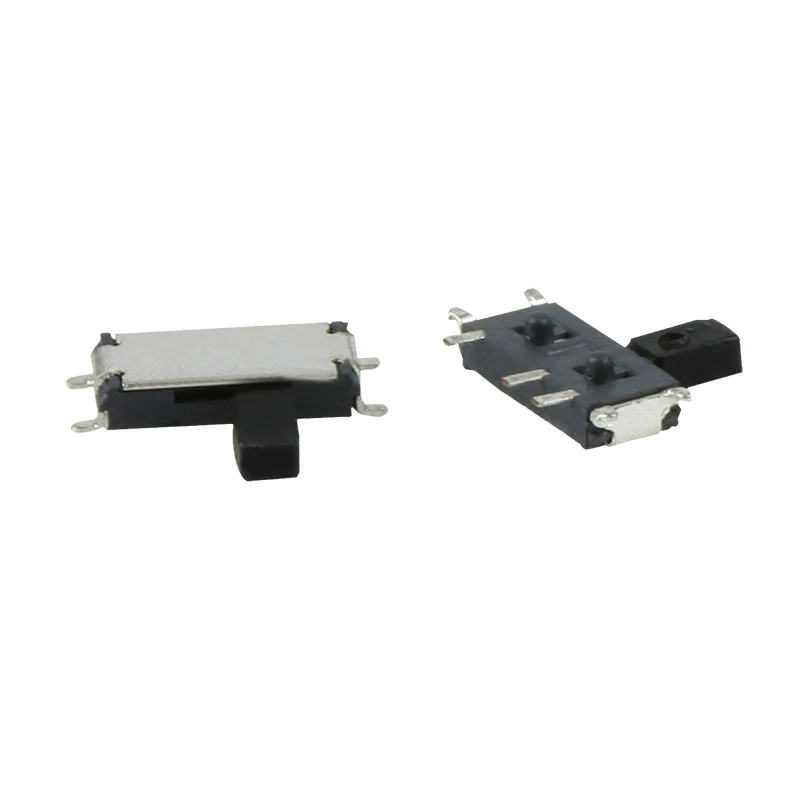

smd mini 7 pin slide switch
- 0.11 >=1000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Application: | Electric Appliances; | Terminal: | PCB; |
| Supply Ability: | 100000 Piece/Pieces per Month; | Rating: | 50mA 12VDC; |
| Packaging Detail: | reel tape; | Max. Voltage: | 12vdc; |
| Payment Terms: | T/T; | Max. Current: | 0.5; |
| Model Number: | HM-MSK-12C02; | Place of Origin: | Guangdong China; |
| Mechanical Life: | 50000; | Function: | 1P2T/1P3T//1P4T/1P6T/1P7T/2P2T/2P3T/....5P5T; |
| Port: | shenzhen; | knorb height: | can be choosed 2-12mm; |
| Brand Name: | hm; |
smd mini 7 pin slide switch
specifications
SPECIFICATION | |||
Name | Mini Slide Switch | Brand | HM |
Type | HM-MSk-12C02 | Temperature | -20°C~+70°C |
Contact Insistance | ≤0.03Ω | Insulation Inisistance | ≥100 MΩ |
Rating Load | 0.5A 30V DC | Actuating Force | 250±100G |
Withstand Voltage | AC 500V(50Hz)min | Lifing | 10000Times |
photo &demensions
