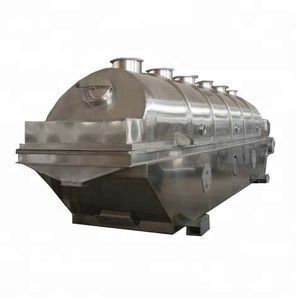

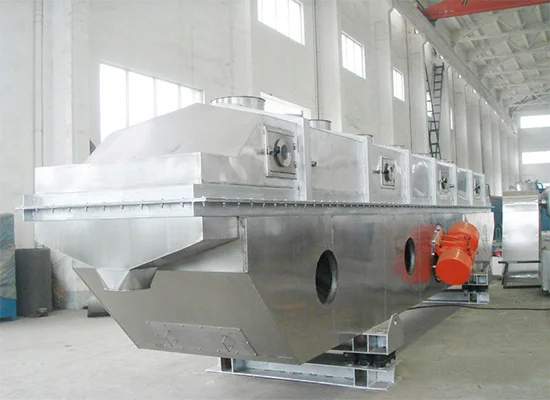

ZLG Series salt vibrating fluid bed dryer/fluid bed dryer for salt

Supplier: Changzhou Jianghe Drying Equipment Co., Ltd.
Region: Jiangsu, China
Contact: Mr. jiang sam
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Condition:	New;	Supply Ability:	5 Set/Sets per Month;
Brand Name:	JiangHe;	Dimension(LWH):	Deponds on the model;
Payment Terms:	L/C,D/A,D/P,T/T;	Warranty:	1 year;
Power(W):	1.6kw-7.4kw;	Weight:	Deponds on the model;
After-sales Service Provided:	Engineers available to service machinery overseas;	Port:	Shanghai;
Type:	Drying Oven;	Voltage:	220v-450v;
Certification:	ISO9001,CE;	Packaging Detail:	Vibrating Fluid Bed Dryer is packing with plywood cases or as customers' requirement;
Place of Origin:	Jiangsu China;

Product Details
Description:

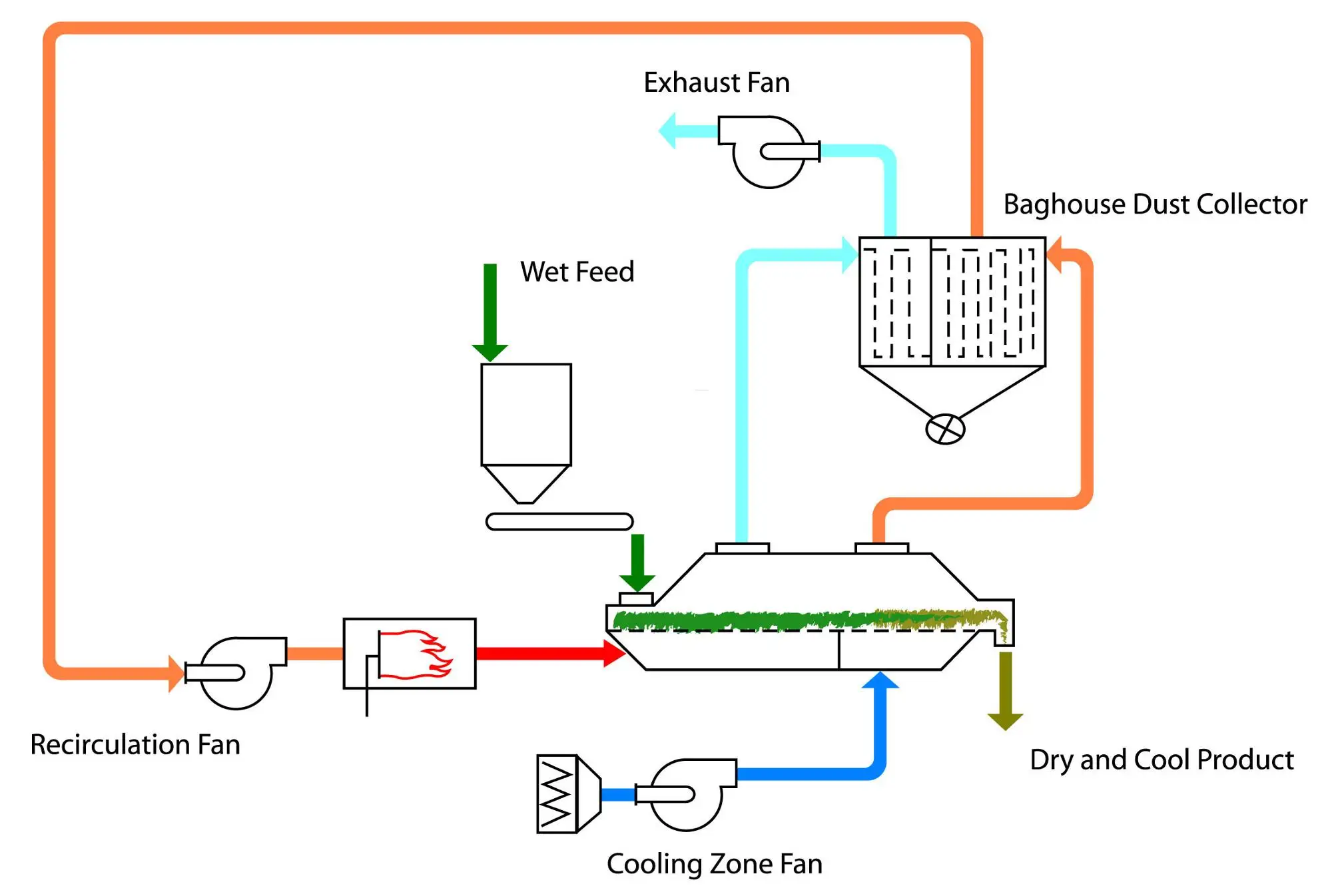

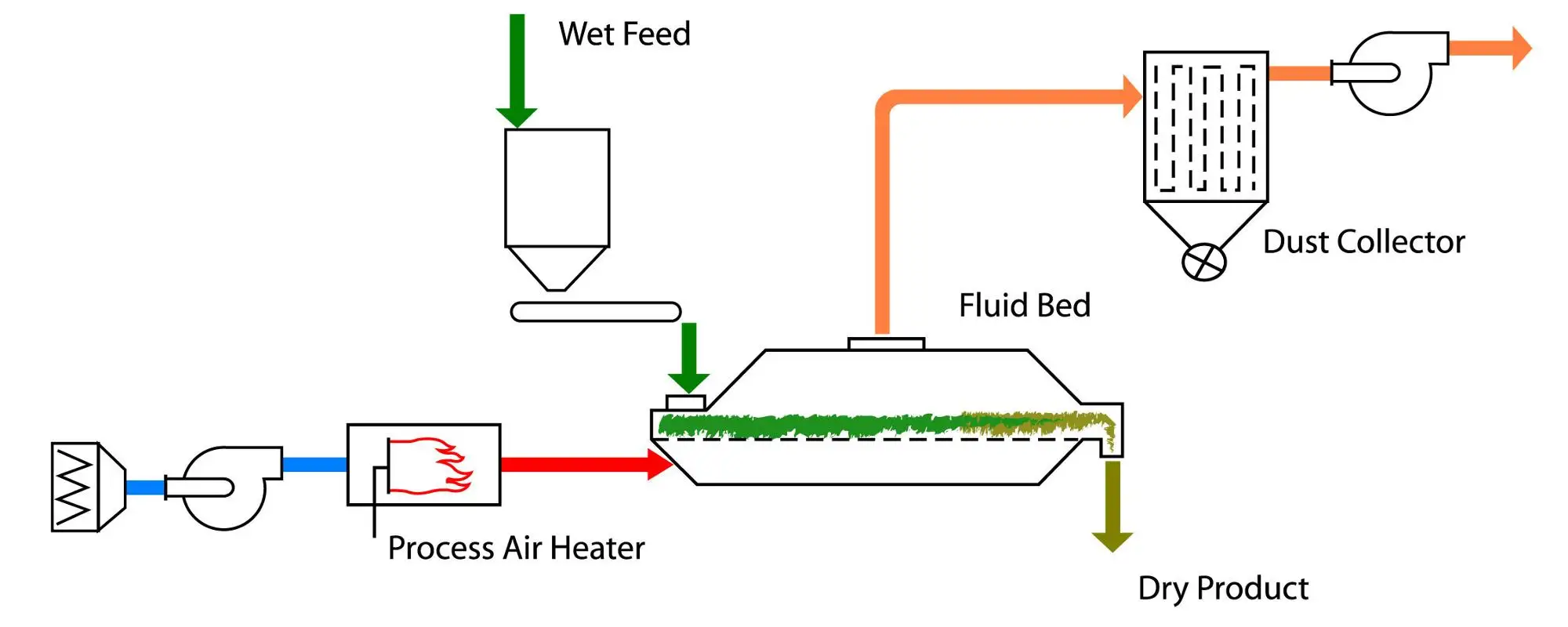

Principle

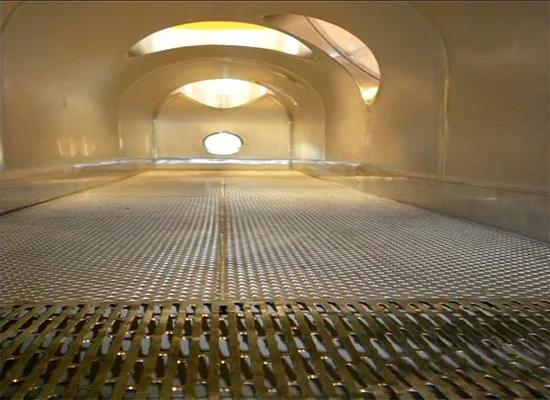

Raw material is feed into the machine from equipment inlet and move forward continuously along with the horizontal direction under vibratory power. The hot air passes through fluidized-bed and exchange with raw materials’damp, then the wet air is dusted by cyclone separator and exhausted from air outlet, the dried material is discharged through finished material outlet.

Scope of Application
Pharmacy and chemical industries: all kinds of granular tablet and granule, boric acid, borax, hydroxybenzene, malic acid, malay acid.
Foodstuff and construction industries: lees, monosodium glutamate, edible sugar, edible salt, mine residue, bean, seeds.
It can also be applied for raising material damp or cooling raw material.
Features
Raw material is heated uniformly, heat exchanging is sufficient, drying capacity is high.
Compared with ordinary drier, it can save energy up to 30%.
The vibration is driven by vibratory electric device, it has those benefits: stable operation, convenient maintenance, low noise and durable.
Fluidized state is stable, no dirty corner and broken out situation.
Easy regulation and wide suitability. Inside the machine, raw material’s thickness, moving speed and amplitude change can be adjusted.
Small damage to raw material’s surface, this equipment can be applied for drying easy broken materials; raw material’s anomaly shape can not affect drying effect, operation environment is clean.
Raw material and air cross pollution are effectually prevented by using fully sealed structure. Drying environment is very sanitary.

TECHNICAL PARAMETERS

Model	Area of fluidized- bed(m²)	Temperature of air inlet (°C)	Temperature of air outlet (°C)	Capacity to vappor	Vibration motor
Model	Area of fluidized- bed(m²)	Temperature of air inlet (°C)	Temperature of air outlet (°C)	moisture (kg/h)	Model	Power (Kw)
ZLG3×0.30	0.9	70-140	40-70	20~35	YED10-6	0.75x2
ZLG4.5×0.30	1.35	70-140	40-70	35~50	YED10-6	0.75x2
ZLG4.5×0.45	2.025	70-140	40-70	50~70	YED16-6	1.1x2
ZLG4.5×0.60	2.7	70-140	40-70	70~90	YED16-6	1.1x2
ZLG6×0.45	2.7	70-140	40-70	80~100	YED20-6	1.5x2
ZLG6×0.60	3.6	70-140	40-70	100~130	YED20-6	1.5x2
ZLG6×0.75	4.5	70-140	40-70	120~140	YED20-6	1.5x2
ZLG6×0.9	5.4	70-140	40-70	140~170	YED20-6	1.5x2
ZLG7.5×0.60	4.5	70-140	40-70	130~150	YED30-6	2.2x2
ZLG7.5×0.75	5.625	70-140	40-70	150~180	YED30-6	2.2x2
ZLG7.5×0.90	6.75	70-140	40-70	160~210	YED30-6	2.2x2
ZLG7.5×1.2	9	70-140	40-70	200~260	YED40-6	3.0x2

	A	B	C	D	E	F	Weight (kg)
ZLG3×0.30	3000	300	1000	900	450	1700	1250
ZLG4.5×0.30	4500	300	1000	900	450	1700	1560
ZLG4.5×0.45	4500	450	1150	900	525	1800	1670
ZLG4.5×0.60	4500	600	1300	900	600	1850	1910
ZLG6×0.45	6000	450	1150	900	525	1800	2100
ZLG6×0.60	6000	600	1300	900	600	1850	2410
ZLG6×0.75	6000	750	1450	900	675	1900	2340
ZLG6×0.9	6000	900	1600	900	750	2000	3160
ZLG7.5×0.60	7500	600	1500	1000	600	1950	3200
ZLG7.5×0.75	7500	750	1650	1000	675	2050	3600
ZLG7.5×0.90	7500	900	1800	1000	750	2150	4140
ZLG7.5×1.2	7500	1200	2100	1200	900	2500	5190

FAQ

Q: Can I visit your factory?

A: Yes. Many domestic and international customers visit our factory every year. Our company is near Shanghai.It only takes you about 1 hour to get Changzhou.Or we can visit you in Shanghai.

Q: What’s the quality of your products?
A:Parts of our products come with best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.

Q: What to do if the machine has a problem?
A:24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.

Q: How long is the warranty of your equipment?
A: Our warranty period is one year generally.

Q: What is your payment term?
A: Our usual payment term is: 30% TT in advance, 70% TT before shipment. Other ways can also be received after we both sides discussion and agreement.

Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port, and we will give you CIF price.
