8000N 48mm/s large force fast speed linear actuator Waterproof IP66 RS-DF
-
Supplier: Anhui Risesat Electronics Co., Ltd. -
Region: Anhui, China -
Contact: Ms Balte Z -
Price: $19.90 /piece -
Min. Order: 1 piece
| Packaging Detail: | 6pcs/ctn; | Port: | shanghai; |
| Limited switches: | Inner (1pc in each side); | Max. length: | stroke + 160mm; |
| IP Grade: | IP66; | Supply Ability: | 1000 Piece/Pieces per Week; |
| Place of Origin: | Anhui China; | Speed no load: | 48mm/s; |
| Brand Name: | RISESAT; | Payment Terms: | T/T,Western Union; |
| Load Max.: | 8000N; | Stroke length: | 50~1000mm; |
| Model Number: | RS-DF; | Voltage: | 12V/24VDC; |
8000N 48mm/s large force fast speed linear actuator Waterproof IP66 RS-DF
Feature / Benefits:
High Speed Actuator
Waterproof design
Installation hole can be adjustment
Voltage: 12V/24V DC
Push force: 8000N max
Pull force: 4000N max
Stroke: 50mm-500mm
Speed: 4-48mm/s
Protection Class: IP66
Limited Switches: built in
Low noise
Ambient temperature -25°C to +60°C

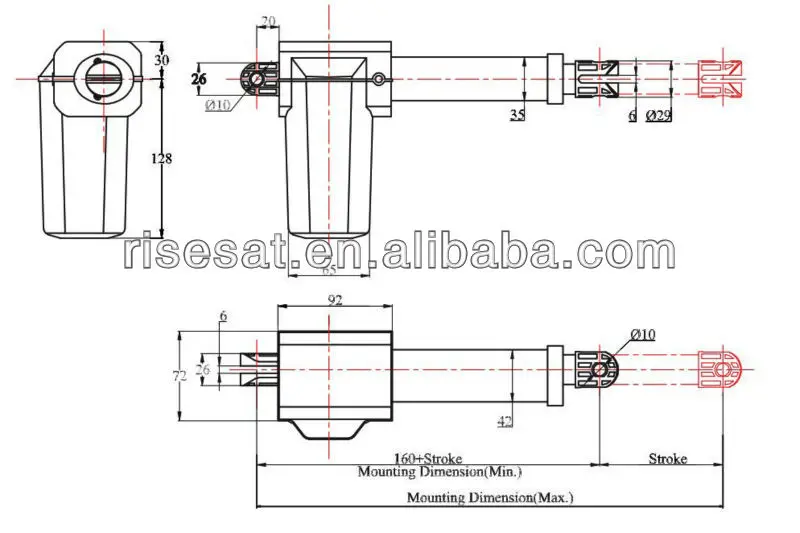

Dimension:
Basic Installation Dimension:
Actuator Stroke (mm) | 50 | 100 | 150 | 200 | 250 | 300 |
Basic Installation Stroke(mm) | 210 | 260 | 310 | 360 | 410 | 460 |
Stretch Stroke (mm) | 260 | 360 | 460 | 560 | 660 | 760 |
OUR PACKAGE:
Use Good quality thick Carton
Type | Max. Force(N) | Max. Speed(mm/s) | Stroke | Voltage | Protection | Weight | ||
push | pull | no Load | full load | |||||
RS-DF 01 | 750 | 750 | 48 | 36 | 50-500 | 12/24 | IP66 | 2.5 |
RS-DF 02 | 1000 | 1000 | 36 | 27 | 50-500 | 12/24 | IP66 | 2.5 |
RS-DF 03 | 2000 | 2000 | 18 | 13 | 50-500 | 12/24 | IP66 | 2.5 |
RS-DF 04 | 4000 | 4000 | 12 | 8.5 | 50-500 | 12/24 | IP66 | 2.5 |
RS-DF 05 | 6000 | 4000 | 6 | 4 | 50-500 | 12/24 | IP66 | 2.5 |
We can OEM, and make Customized!
We are waiting for your inquiry!
-
