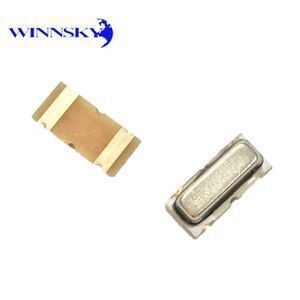

Factory Wholesale SAW Resonator NDR3208-7535-315MHz Lead-free production
-
Supplier: Shenzhen Winnsky Electronics Co., Ltd. -
Region: Guangdong, China -
Contact: Mr Bryan Huang -
Price: $0.18 / >=10 pieces -
Min. Order: 10 pieces
| Warranty: | Global 180 Days Return; | center Frequency: | 315MHz; |
| Packaging Detail: | Anti-static bag(Factory wholesale SAW resonator NDR3208-7535-315MHz Lead-free production SAMPLE FREE); | Impedance: | 50 Ohm; |
| Insertion Loss: | 1.9dB; | Supply Ability: | 1000000 Piece/Pieces per Month; |
| Package: | DCC2A; | Frequency Range: | 314.925-315.075MHz; |
| Model Number: | NDR3208; | Dimensions: | 7.5*3.5mm; |
| Port: | Shenzhen; | Tolerance from 315MHz: | ±75KHz; |
| Type: | Surface Mounting; | Name: | SAW resonator 315MHz; |
| Place of Origin: | Guangdong China; | Brand Name: | WINNSKY; |
| Payment Terms: | L/C,T/T,Western Union,MoneyGram,Paypal; |
If you have any needs, please feel free to contact us.
| Model | Center Frequency (MHZ) | Bandwidth (MHZ) | Insertion Loss | Dimension (mm) | Package |
| NDF3021 | 315 | 0.4 | 2.5 | 3.0*3.0 | QCC8B |
| NDF3025 | 315 | 1 | 1.5 | 3.8*3.8 | QCC8B |
| NDF3026 | 315 | 4.6 | 1.5 | 3.0*3.0 | DCC6C |
| NDF3044 | 315 | 14 | 8.5 | 3.8*3.8 | QCC8B |
| NDF3045 | 315 | 2 | 2.0 | 3.8*3.8 | DCC6 |
| NDF3052 | 315 | 0.8 | 2.5 | 3.0*3.0 | DCC6C |
| NDF315 | 315 | 0.8 | 3.0 | TO-39 | |
| NDF315A | 315 | 4 | 3.0 | 11.0*4.5 | F-11 |
| NDF420 | 315 | 0.8 | 3.0 | 5.0*5.0 | QCC8C |
| Model | Center frequency(MHZ) | Tolerance(KHZ) | Insertion Loss(dB) | Dimension(mm) | Package |
| NDRE043 | 315 | ±75 | 1.6 | 1.8*1.4 | |
| NDR3037 | 315 | ±75 | 1.3 | 3.8*3.8 | DCC6 |
| NDR3028 | 315 | ±75 | 1.5 | 3.0*3.0 | DCC6C |
| NDR3001 | 315 | ±75 | 1.3 | 5.0*3.5 | QCC4A |
| NDR3059 | 315 | ±75 | 2.2 | 3.8*3.8 | DCC6 |
| NDR315 | 315 | ±75 | 1.5 | TO-39 | |
| NDR315MS | 315 | ±75 | 1.6 | 11.0*4.5 | F11-SMD |
| NDR315D | 315 | ±75 | 1.5 | 11.0*4.5 | F11 |
| NDR315E | 315 | ±75 | 1.7 | 11.0*4.5 | F11 |
| NDR3208 | 315 | ±75 | 1.9 | 7.5*3.5 | QCC2A |
| R315 | 315 | ±75 | 1.0 | 8.36*3.45 | D11 |
| NDR420 | 315 | ±75 | 1.4 | 5.0*5.0 | QCC8C |
--About US
Winnsky was established 2007 in HK,focused on electronics components and modules R&D,producing,selling over 11years.
Our selling office is located in Shenzhen,China which only 20minutes driving from Bao"an International airport.
The company's R&D and production base is located in Nanjing, Jiangsu Province,Factory covers an area of 30,000 square meters, and the building area is 10,000 square meters.
The annual production capacity is approximately 200 million,and had passed ISO9001/TS16949 quality system certification.
Our products range:
A, SAW:SAW FILTER\SAW RESONATOR\DUPLEXER
B, Ferrite Circulator
C, Ferrite Isolator
D, Pyroelectric Infrared Sensor
E, Dielectric Resonator
F, IOT Antenna
G,waveguide
Dispatch goods via EMS, DHL, UPS, FEDEX, TNT or by air or sea as customer requested
--Why Choose US
1.11 Years Experience in electronic componet R&D,producing and selling
2.Certification: ISO9001,ISO14001,CTI,RoHS
3.Provide A Full Set of Reliability Lab
4.Door to Door Service
5.Global 180 Days Return
6.OEM/ODM service can be provided base on customer requesring
7.Excellent pre and after-sale service,professional engineers will always stand by to service
1.What is your general lead-time for mass and sample?
Normally 3-4weeks for mass,and same for samples.Depends on the reality situation.
2.Can you offer the free samples?
Small quantity samples can be free offered base on customer requesting.
3.What basic information we needed when ordering?
Generally the center frequency,holder or package type, resistance(ESR), frequency tolerance, frequency stability, load capacitance, operating temperature, drive power, aging, etc,or your OEM requesting.
