GH300 Series Double Eccentric HP High Performance Wafer Butterfly Valve

Supplier: Dalian Ace Flow Tech Co., Ltd.
Region: Liaoning, China
Contact: Ms Lin Yan
Price: $70.00 /set
Min. Order: 1 set

Click here to contact

Product details

Media:	Water,Oil, Gas, Steam, etc.;	Brand Name:	GV, ACEFLOW, OEM;
Standard:	ANSI DIN JIS;	Power:	Manual;
Packaging Detail:	1set per carbon box, 12sets per wooden case;	Temperature of Media:	Normal Temperature;
Operator:	Manual, Worm gear, Pneumatic, Electric;	Seat Material:	PTFE, RTFE, 304, 316, Inconel;
Port:	DALIAN, or other ports of CHINA;	Application:	General;
Place of Origin:	Liaoning China;	Payment Terms:	L/C,T/T,Western Union,Alipay;
Shaft Material:	304, 316, 630(17-4PH);	Disc Material:	CF8, CF8M, CF8+STL, CF8M+STL, 2205;
Supply Ability:	500 Set/Sets per Month;	Standard or Nonstandard:	Standard;
Connection:	Wafer, LUG, Flange;	Structure:	Double Eccentric Butterfly Valve;
Material:	Casting;	Model Number:	GH300;
Port Size:	DN50-DN1000(2"-40");	Size:	DN50-DN1000;
Body Material:	WCB, WCC, LCB, LCC, CF8, CF8M, 2205,etc.;	Structure:	Butterfly;
Rating:	Class 150, 300, 600, PN10, 16, 25, 40, 64, JIS 10K, 16K, 20K, 40K;	Pressure:	Medium Pressure;

Product Description

GH300 Series Double Eccentric HP High Performance Wafer Butterfly Valve

Product Name	GH300 Series Double Eccentric HP High Performance Wafer Butterfly Valve
Structure	Double Eccentric Butterfly Valve
Nominal Diameter	2"-40"
Connection	Wafer(standard), LUG, Flange
Applicable Fluid	Water, Steam, Chemical, petrochemicals etc
Rating	Class 150, 300, 600, PN10, 16, 25, 40, 64, JIS 10K, 16K, 20K, 40K
Temperature	-20℃~+250℃ for soft seat / -40℃~+400℃ for metal seat
Ambient Temperature	-20℃~+60℃
Body Material	WCB, WCC, LCB, LCC, CF8, CF8M, 2205,etc.
Disc Material	CF8, CF8M, CF8+STL, CF8M+STL, 2205
Disc Sealing Surface	E.N.P(Electroless Nicket Plating), Stellite
Seat Material	PTFE, RTFE, 304, 316, Inconel
Shaft Material	304, 316, 630(17-4PH)
Standard	ANSI, DIN, JIS
Operator	Manual lever, Worm gear, Pneumatic, Electric

Product Show

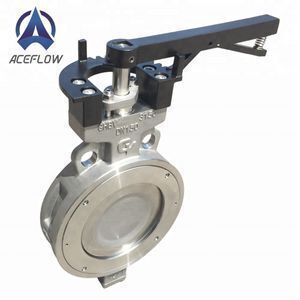

Lever Operator

Worm Gear Operator

Bracket type for Actuator

Double eccentric design ensures low operating torque and positive sealing, in thus minimizes the cost for actuator.

Product Drawing

Our Company

Factory

Workshop1

Workshop2

Production Equipments

Test Equipments

Warehouse

Office

Team1

Team2

FAQ

Q: Are you trading company or manufacturer?

A: We are factory. Our valves are 100% tested before delivery.

Q: Do you provide samples? Is it free or extra?

A: Yes, we could offer charged sample and the cost can be reduced from following batch quantity order. As our products are too heavy, sample freight will not be covered at our side.

Q: What is the MOQ?

A: For valves and flow meters, it is 1pc; for castings, it should be 10pcs at least.

Q: How long is your delivery time?

A: Generally it is 25 days. If it is not standard model, or necessary parts are not available in stock, the delivery time will be 30 days. For batch order, it is according to quantity.

Q: What is your payment terms?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

Payment>=10000USD, 100% irrevocable L/C at sight available upon request, with bank cost charged by separate.

Q: What is the warranty period?

A: Generally speaking, it is 1 year after the shipment date.
