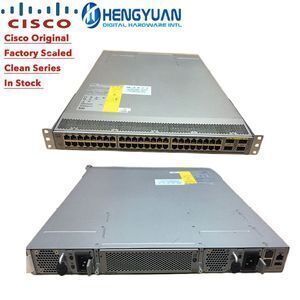

Cisco Nexus 3172TQ Layer 3 Switch N3K-C3172TQ-XL for Wholesale Price

Product details
Products Status:Stock;Ports:48 x 10GBase-T + 6 x QSFP+;
Dimensions (W x D x H):17.3 in x 19.9 in x 1.7 in;Warranty:1 Year;
Description:Cisco Nexus 3172TQ, 48 x 10GT & 6 QSFP+ ports, extended memory;Switch Capacity:960 Gbps;
Condition:NIB Original;Transmission Rate:10/100/1000Mbps;
Place of Origin:California United States;Device Type:Switch - 72 ports - L3 - managed;
Part No:N3K-C3172TQ-XL;Supply Ability:300 Piece/Pieces per Week N3K-C3172TQ-XL;
Communication Mode:Full-Duplex & Half-Duplex;Certification:CE RoHS FCC;
Packaging Detail:Cisco original package within a big carton.;Model Number:N3K-C3172TQ-XL;
Port:Beijing;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal;
Brand Name:Cisco;Function:LACP,POE,QoS,SNMP,Stackable,VLAN Support;
Manufacturer:Cisco Systems.inc;Ports:≥ 48;
Weight:22.05lbs;Brand:Cisco;

             Cisco Nexus 3172TQ Layer 3 Switch N3K-C3172TQ-XL for Wholesale Price

Advantage

N3K-C3172TQ-XL 100% Original Sealed.

Product Overview

The Cisco Nexus 3172TQ switch is a dense, high-performance Layer 2 and 3 10 and 40-Gbps switch that is a member of the Cisco Nexus 3100 switches. The Nexus 3100 switch is the Cisco Nexus 3000 series switches and offers improved port density, scalability, and features compared to the first-generation switches. It supports both forward and reverse airflow schemes with AC and DC power inputs. The Cisco Nexus 3172TQ is well suited for data centers that require a cost-effective, power-efficient line-rate Layer 2 and 3 top-of-rack (ToR) switch.Cisco Nexus 3172TQ is a 10GBASE-T switch with 48 10GBASE-T ports and 6 Quad SFP+ (QSFP+) ports. This switch is well suited for customers who want to reuse existing copper cabling while migrating from 1-Gbps to 10-Gbps servers.


ProductN3K-C3172TQ-XL
Product DescriptionNexus 3172TQ. 48 x 10GT & 6 QSFP+ ports. extended memory
Service CategoryN/A
Global Price in USD$26075.00
Quantity MinN/A
Quantity MaxN/A
DurationN/A
OrderabilityBOTH
Item IdentifierProduct
Service ProgramN/A
Category Base Discount NameCORE
 Technical Specifications
General
Device Type
Switch - 72 ports - L3 - managed
Enclosure Type
Rack-mountable 1U
Subtype
10 Gigabit Ethernet
Ports
48 x 10GBase-T + 6 x QSFP+
Performance
Switching capacity: 1.4 Tbps
Capacity
Virtual interfaces (VLANs): 4096 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ Rapid Spanning Tree Protocol instances: 512 ¦ ACL entries (egress): 1000 ¦ ACL entries (ingress): 4000 ¦ QoS hardware queues per port: 8
MAC Address Table Size
288K entries
Jumbo Frame Support
9216 bytes
Routing Protocol
RIP-2, BGP, EIGRP, HSRP, VRRP, OSPFv2, PIM-SM, GRE, OSPFv3, PIM-SSM, MSDP, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), BGP for IPv6
Remote Management Protocol
SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI, SCP
Encryption Algorithm
AES
Authentication Method
RADIUS, TACACS+, MS-CHAP, Secure Shell v.2 (SSH2)
Features
VLAN support, Syslog support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Weighted Random Early Detection (WRED), sFlow, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, EIGRP Stub Routing, Equal-Cost Multipath (ECMP), Bidirectional Forwarding Detection (BFD), STP Root Guard, Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), LLDP support, Link Aggregation Control Protocol (LACP), Hot Standby Router Protocol (HSRP) support, redundant hot swappable fans, 12MB packet buffer, STP PortFast, Class of Service (CoS), Automated Attendant (IVR), Multicast Source Discovery Protocol (MSDP), Virtual PortChannel (vPC) technology, DiffServ Code Point (DSCP) support, In-Service Software Upgrade (ISSU), ARP inspection, Control plane protection (CoPP), Secure Copy (SCP)
Compliant Standards
IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3ba
RAM
8 GB
Expansion / Connectivity
Interfaces
48 x 10GBase-T RJ-45 ¦ 6 x 40Gbit LAN QSFP+ ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x serial (RS-232) management ¦ 1 x USB
Power
Power Device
Internal power supply - hot-plug
Installed Qty
0 (installed) / 2 (max)
Power Redundancy
Optional
Power Consumption Operational
440 Watt
Miscellaneous
Included Accessories
Accessory kit
Compliant Standards
CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1 Second Edition, RoHS, GB 4943, CAN/CSA C22.2 No. 60950-1, Directive 2004/108/EC, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Class A, KN24, CNS 13438(95) Class A, KN22 Class A, EN 300386, ASHRAE, AS/NZS CISPR22:2006 Class A, EN61000-3-2, EN61000-3-3, FCC CFR47 Part 15 A
Software / System Requirements
Software Included
Cisco NX-OS Layer 3 Base Services
Dimensions & Weight
Width
17.3 in
Depth
19.9 in
Height
1.7 in
Weight
22.05 lbs
Manufacturer Warranty
Service & Support
Limited warranty - advance hardware replacement - 1 year - response time: 10 days
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
104 °F
Humidity Range Operating
10 - 85% (non-condensing)
Min Storage Temperature
-40 °F
Max Storage Temperature
158 °F
Humidity Range Storage
5 - 95% (non-condensing)
