Professional rice husk charcoal briquette machine

Product details
Warranty:1 Year;Supply Ability:10 Set/Sets per Month;
Dimension(L*W*H):1.67*0.68*1.55m;Power:15kw,22kw;
Type:Briquette Machines;Motor Type:AC Motor;
color:as you like;Power(W):15kw;
Capacity:120-200 kg/h;MOQ:1 set;
raw material:sawdust,rice husk,biomass powder;Payment Terms:L/C,T/T,Western Union;
Condition:New;Briquette shape:Round Square Hexagon;
Production Capacity:90%;material:iron;
Inlet particle size:≤5mm;Place of Origin:Henan China;
Type:IV;Packaging Detail:woodbox;
Dimension:1.67*0.68*1.55m;After-sales Service Provided:Engineers available to service machinery overseas;
Port:Qingdao,Tianjin,main port;Brand Name:Sanjin;
Certification:CE ISO;





1.introduction



wood charcoal bricket machine has been awarded 2 patents( patent number:200530100650.5,250020031212.2) showing the features of high capacity, low energy consumption, compact and durable.many performance data shuch as capacity,wood briquettes density,electricity consumption and wearable degree has reached advanced level. this machine can be used as charcoal powder briquette machine by replacement of some spare parts.



2.usage and features



wood charcoal bricket machine can be used in producing high quality wood charcoal stick with sawdust, wood chipes, branches, crop stalks, sugarcane residue, coffee husk, paddy straw, sunflower stalk, cotton stalks, bamboo dust, palm husk, soybeans husk, tea waste, etc.



It's equipped with automatic temperature control system and designed to produce high density wood briquette from biomass.



The product of this machine can be used to heat boiler, fireplace, etc for warm in house.



Specification:

Type

Power

Capacity

Inlet particle Size

Dimension

IV

15KW

140-200kg/h

≤5mm

1.65X0.66X1.55m

ZBJ-500

22KW

500kg/h

≤5mm

1.9X0.6X1.6m



Model

80

Capacity

300kg/h

Motor power

18.5kw

Net weight

700kg

Overall size

1900*600*1800mm

Diameter of briquette

80mm



Note: The capacity is based on the material with the moisture not more than 12%.



Raw material:

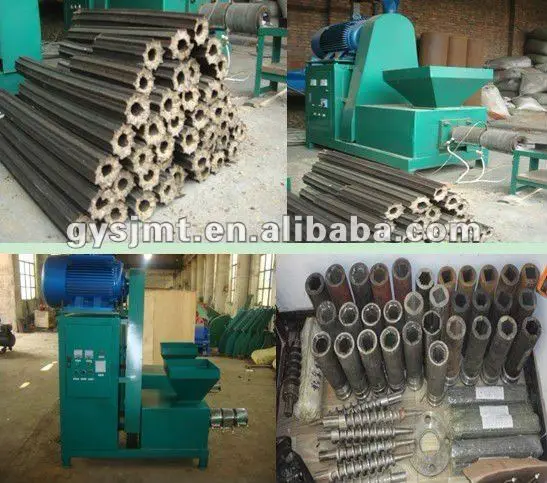

Charcoal briquette press machine:
