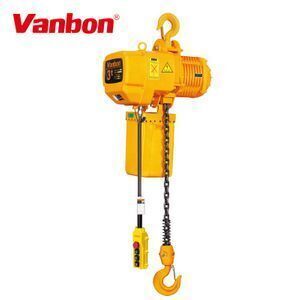

3 ton kito type chain hoist, 3 ton hook type electric chain hoist
- 770.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| After-sales Service Provided: | Overseas third-party support available; | Brand Name: | Vanbon/OEM; |
| Control Method: | Pendent Control; | Lift Speed: | 5.4 m/min; |
| Sling Type: | Chain; | CE: | GR2107010466CM; |
| Color: | Customised; | Power Source: | Electric; |
| Net Weight: | 122kg; | Standard Lifting Height: | 3m; |
| Package Preview: | https://sc01.alicdn.com/kf/HTB1AF0Vb7xz61VjSZFtq6yDSVXaQ.jpg_640x640.jpg; | Place of Origin: | Shanghai China; |
| After-sales Service Provided: | Video technical support; | Certification: | ISO9001/CE/SGS; |
| Chain: | FEC G80chain; | Single gross weight: | 122 KG; |
| Warranty: | 1 year; | business: | hoist manufacturer hoist factory; |
| Package Type: | plywood cases; | Selling Units: | Single item; |
| Single package size: | 68X43X66 cm; | Voltage: | 200-460V; |
| Applicable Industries: | Construction works ; | Usage: | Construction Hoist; |
| Condition: | New; | Hook: | Heat Treatment; |
| Type | WBH-00501SF | WBH-01001SF | WBH-01501SF | WBH-02001SF | WBH-02501SF | WBH-03001SF | |
| Capacity(t) | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | |
| Standard Lifting Height(m) | 3 | ||||||
| Lifting Speed(m/min) | 6.8 | 6.6 | 8.8 | 6.6 | 5.4 | 5.4 | |
| Lifting Motor | Power(kw) | 0.75 | 1.5 | 3.0 | 3.0 | 3.0 | 3.0 |
| Rotation Speed(r/min) | 1440 | ||||||
| Phases | 3 | ||||||
| Voltage(v) | 200-440 | ||||||
| Frequency(Hz) | 50 | ||||||
| Chain Turns | 1 | ||||||
| Chain Specificaion | Ø6.3 | Ø7.1 | Ø10.0 | Ø10.0 | Ø11.2 | Ø11.2 | |
| Test Load(t) | 0.625 | 1.25 | 1.875 | 2.5 | 3.125 | 3.75 | |
| Weight(kg) | 47 | 61 | 108 | 115 | 116 | 122 | |
| Weight Added with 1m Higher(kg) | 0.81 | 1.1 | 2.3 | 2.3 | 2.8 | 2.8 | |
