TUV-CE/EMC Approved 15hp Gasoline Enginie Pro Wood Chipper Shredder Wood Chipper Machine, Wood Chipping Machine

Supplier: Weifang Austter Industry And Trade Co., Ltd.
Region: Shandong, China
Contact: Mr Niel Lee
Price: $640.00 / >=5 pieces
Min. Order: 5 pieces

Click here to contact

Product details

Use:	Chipping Wood;	Single gross weight:	200 KG;
Wheel size:	16*8.0-7;	Power Type:	Gasoline;
Brand Name:	AUSTTER;	Package Preview:	https://sc01.alicdn.com/kf/HTB1Cp_sJWSWBuNjSsrbq6y0mVXaP.jpg_640x640.jpg;
Operate height:	1.15m;	Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Farms,Home Use,Retail,Construction works ;
Power:	Gasoline motor;	Type:	Wood Chipper;
After-sales Service Provided:	Overseas service center available;	Single package size:	90X78X123 cm;
Selling Units:	Single item;	Warranty:	1 Year;
Chip type:	Rotor type;	Weight:	200kg;
Color:	Customized;	Assembly:	90% assembled;
Condition:	New;	Feeding type:	Gravity feeding;
Frame type:	Integrated;	Place of Origin:	Shandong China;
Certification:	CE-MD/EMC;	Dimension(LWH):	2.5x0.85x1.5m;
Safety Device:	Emergency stop bar;	User Manual:	Included;
Package Type:	Plywood case. 20" ft container can load 18 pcs 40"HQ container can load 78 pcs, or 48 pcs GS1500 and 60 pcs GS650, or 42 pcs GS1500 and 72 pcs GS650.;

Product Description

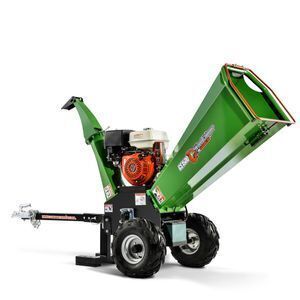

GS1500 WOOD CHIPPER

The Austter SG1500 is a self-feeding gasoline engine powered wood chipper that features a large 12" x 6" infeed opening and can handle material up to 5" in diameter. Weighing in at 408 lbs. This drum style chipper is equipped with a professional grade 15hp gasoline engine that boasts 15HP and 21.00 ft./lbs. of torque. Optional electric start is also available as an upgrade. The material is fed into a sloped infeed bin and fed into the 10" diameter 53 lb. chipper drum that acts as a power feed assist system pulling the branches in at up to 50' per/min. Although the chipper weighs over 400 pounds it is perfectly balanced and can be easily moved t othe work site by tipping it back and pushing it around with the included handles. A trailer tongue is also included for attaching to an ATV or utility vehicle for transport as well.

Specifications

_Model	_{GS1500 Wood Chipper}	_{GS650 Wood Chipper}
_Power	_{15hp gas engine}	_{6.5hp gas engine}
_{Electric start option}	_Yes	_Non
_Clutch	_{Centrifugal clutch}	_{Centrifugal clutch}
_{In-feed opening}	_{12" x 6"}	_{6" x 5"}
_{Chipping diameter}	_{5" (120mm)}	_{3" (80mm)}
_{Fly knives}	_{2 pieces}	_{2 pieces}
_{Fixed knive}	_{1 piece}	_{1 piece}
_{Removable tow hitch}	_{2" ball}	_Non
_{Safety deveice}	_{Emergency stop lever}	_{Emergency stop lever}
_Tires	_16*8.0-7	_4.10/3.50-4
_{Operate height}	_1150mm	_925mm

Featurs

- Self feeding gravity assisted feed in-feed system

- 360 degree swivel discharge chute

- Laser cut steel construction

- 7/32" thick steel chipper drum housing

- Easy knife access

- Adjustable fixed knive (to achieve proper knife gap)

- Safety stop bar

- 2- heavy duty main shaft bearings

Detailed Images

Drum housing

Name: Drum housing

Brand: Ausgger

Original: Austter

7/32" thick steel, laser cut steel construction

Fly knives

Name: Fly knives
Brand: Austter
Original: Austter
Designed for extreme duty-there is no better material that can be used for superior performance than our through hardened, heat treated, high chromium, high carbon, A-8 tool steel knives..

Limit switch

Name: Limit Switch
Brand: Austter
Original: China
It is a switch fitting on the in-feed bin and connected with emergency stop bar, comply with EU safety standards.

Manual tube

Name: Manual tube
Brand: Austter
Original: China
Professional manual holder.

Centrifugal clutch

Brand: Austter

Original: China

Centrifugal clutch is a overload safety protection device on wood chipper.

Tow hitch

Brand: Austter

Original: China

European, Australia, American and New Zealand style for option.

Match 2" hitch ball.

Factory & Workshop

Pre-Sales Service

* Product and operation training.

* Relevant user manual and label customizing.

* Relevant market analysis.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* Worldwide distribution of vulnerable parts.

Packing & Delivery

GS1500 Packing
Size	900 (L) * 780 (W) * 1230 (H)
Weight	200 KGS
Packaging Details	The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. 20" ft container can load 18 pcs 40"HQ container can load 78 pcs

GS650 Packing
Size	880 (L) * 565 (W) * 850 (H)
Weight	100 KGS
Packaging Details	The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. 20" ft container can load 48 pcs 40"HQ container can load 156 pcs
