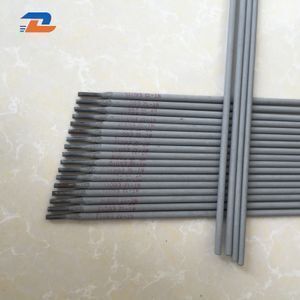

Welding Electrode J421 AWS E6013 /Carbon Steel Welding Rods

Supplier: Hebei Lueding Import & Export Trading Co., Ltd.
Region: Hebei, China
Contact: zhang Joan
Price: $450.00 / >=5 pieces
Min. Order: 5 pieces

Click here to contact

Product details

Supply Ability:	50 Ton/Tons per Day Welding Electrode J421 AWS E6013 Carbon Steel Welding Rods;	Operating Temperature:	-30℃-40℃;
Sample:	Sample Fee;	Packaging Detail:	Welding Electrode J421 AWS E6013 Carbon Steel Welding Rods 1) 2.5mm x 300mm, 2.5kg / inner box + plastic bag, 8boxes / carton 2) 3.2mm x 350mm, 5kg / inner box + plastic bag, 4boxes / carton 3) 4.0mm x 400mm, 5kg / inner box + plastic bag, 4boxes / carton;
Brand Name:	OEM;	Material:	Cast Iron;
Usages:	welding in all steel position;	Length:	350mm;
Delivery Detail:	within 7days after order confirmation;	Model Number:	AWS E6013;
Diameter:	2.0mm 2.5mm 3.2mm 4.0mm 5.0mm;	Port:	Xingang port;
Application:	Low Carbon Steel Structure;	Certification:	ISO9001:2008;
Trade Term:	FOB CIF CFR EXW;	Keyword:	MT-12 welding electrode 3.2mm;
Advantage:	small spatter, no smell,easy arc, easy slag remove;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Cash;
Type:	Rutile Welding Electrode E6013;	Color:	grey/black/white/green/red/yellow;
Operating Current:	40-230A;	Welding Current:	40-230A;
PACKING:	20kg/carton;	Product Name:	Welding Electrode J421 AWS E6013;
Place of Origin:	Hebei China (Mainland);

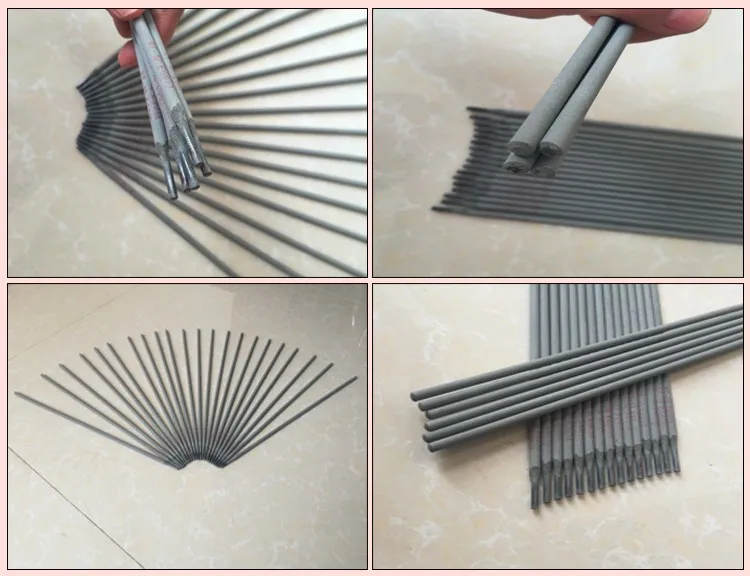

Welding Electrode J421 AWS E6013 /Carbon Steel Welding Rods

Product Description

Welding electrode AWS E6013 : Used for welding in all position, it has excellent weldability and is suitable for welding low carbon steel light-gauge sheet or light structrues where beautiful bead apperance is requested. such as vehicles,building and mechinery etc.

Advantages:

1. Stable arc, less splash
2. Shaped good appearance
3. Easy for removal of slag layer
4. Easy for striking arc and restriking arc.
5. Operable with low amperages on sheet metal
6. Slag control accommodates vertical down welding

Product Name	Welding Electrode J421 AWS E6013 /Carbon Steel Welding Rods
Material	Low carbon
Color	grey/black/white/green/red/yellow
Standard	ISO, CNCA,SONCAP
Model	E6013 E7018
Diameter	2.5mm 3.2mm 4.0mm
Packing	20kg per carton
Advantages	Small spatter, no smell,easy arc, easy slag remove

Type	Typical mechanical properties of deposited metal				Typical chemical composition of deposited metal
Type	Tensile Strength MPa	Yield points%	Elongationδ5%	AkV (J)	C	Mn	S	P	Si	Cr	Ni
STANDARD	≥420	≥330	≥17	_	≤0.12	0.3_0.6	≤0.035	≤0.04	≤0.35	_	_

Main information
Power:AC,DC/electrode negative or positive
Standard(mm)		Current Range(A)
Diameter	Length	Downward Welding	vertical up welding
2	250	30-50	20-40
2.5	300	60-100	50-90
3.2	350	100-140	90-120
4	400	140-190	120-170
5	400	190-250	140-210
