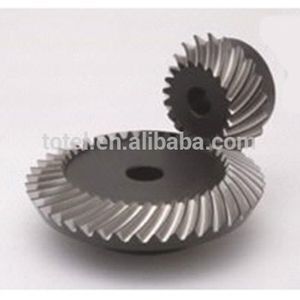

Ground Spiral Bevel Gears

Supplier: Ningbo Totel Imp. & Exp. Co., Ltd.
Region: Zhejiang, China
Contact: Mr Wei Lu
Price: $20.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Port:	shanghai ,ningbo;	Processing:	machine;
Shape:	Bevel;	Delivery Detail:	20 days;
Payment Terms:	L/C,T/T,Western Union;	Tooth Profile:	Helical Gear;
Standard or Nonstandard:	Standard;	Place of Origin:	Zhejiang China (Mainland);
Supply Ability:	10000 Piece/Pieces per Month;	Brand Name:	ZHTC;
Packaging Detail:	wooden cases,cartons;	Pressure Angle:	20 Degree;
Material:	Steel;	Model Number:	TTGG series;
Direction:	Right Hand;

Qualiry Ground Spiral Bevel Gears

1.Technical Details

Specifications
Precision grade	JIS B 1704 :1978 grade 2
Gear teeth	Gleason
Pressure angle	20°
Helix angle	35°
Material	S45C
Heat treatment	Teeth induction hardened
Tooth hardness	50~60 HRC

2.Dimensions

Model	Gear ratio	Module	No. of teeth	Diraction of spiral	Shape	Bore	Hub dia.	Pitch dia.	Outside Dia.	Mounting distance	Total lemgth	crown to back length

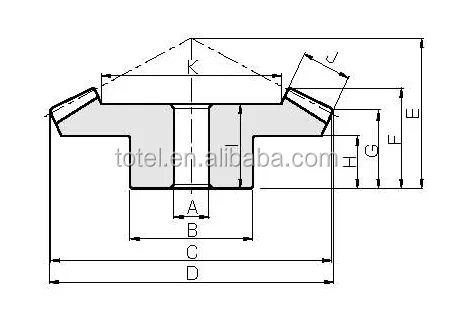

Model	Gear ratio	Module	No. of teeth	Diraction of spiral	Shape	AH7	B	C	D	E	F	G
TBGG2-3020R	1.5	m2	30	R	B4	12	35	60	61.06	40	26.60	21.20
TBGG2-2030L		m2	20	L	B3	10	30	40	43.55	45	24.91	16.18
TBGG2.5-3020R		m2.5	30	R	B4	15	45	75	77.09	50	33.86	26.56
TBGG2.5-2030L		m2.5	20	L	B3	12	40	50	54.43	55	30.88	18.98
TBGG3-3020R		m3	30	R	B4	16	50	90	92.21	50	35.34	26.66
TBGG3-2030L		m3	20	L	B3	16	40	60	65.58	70	40.17	26.86
TBGG4-3020R		m4	30	R	B4	20	70	120	122.85	75	47.48	37.14
TBGG4-2030L		m4	20	L	B3	20	60	80	87.34	90	48.17	32.45
TBGG2-4020R	2	m2	40	R	B4	12	40	80	80.99	40	32.26	25.99
TBGG2-2040L		m2	20	L	B3	12	32	40	40.10	60	34.04	21.02
TBGG2.5-4020R		m2.5	40	R	B4	15	50	100	101.27	55	39.65	31.27
TBGG2.5-2040L		m2.5	20	L	B3	12	40	50	55.21	75	43.61	26.30
TBGG3-4020R		m3	40	R	B4	20	60	120	121.48	65	45.76	36.48
TBGG3-2040L		m3	20	L	B3	16	50	60	66.06	90	50.63	31.52
TBGG4-4020R		m4	40	R	B4	20	70	160	162.07	80	53.69	42.07
TBGG4-2040L		m4	20	L	B3	20	60	80	88.55	120	66.24	42.12
TBGG2-4515R	3	m2	45	R	B4	12	40	90	96.67	40	30.29	26.01
TBGG2-1545L		m2	15	L	B3	10	24	30	34.78	60	29.66	15.80
TBGG2.5-4515R		m2.5	45	R	B4	15	50	112.7	113.32	50	28.25	32.47
TBGG2.5-1545L		m2.5	15	L	B3	12	30	37.5	43.36	75	38.27	19.73
TBGG3-4515R		m3	45	R	B4	20	60	135	135.99	55	40.59	33.98
TBGG3-1545L		m3	15	L	B3	15	38	45	52.08	90	44.98	23.68

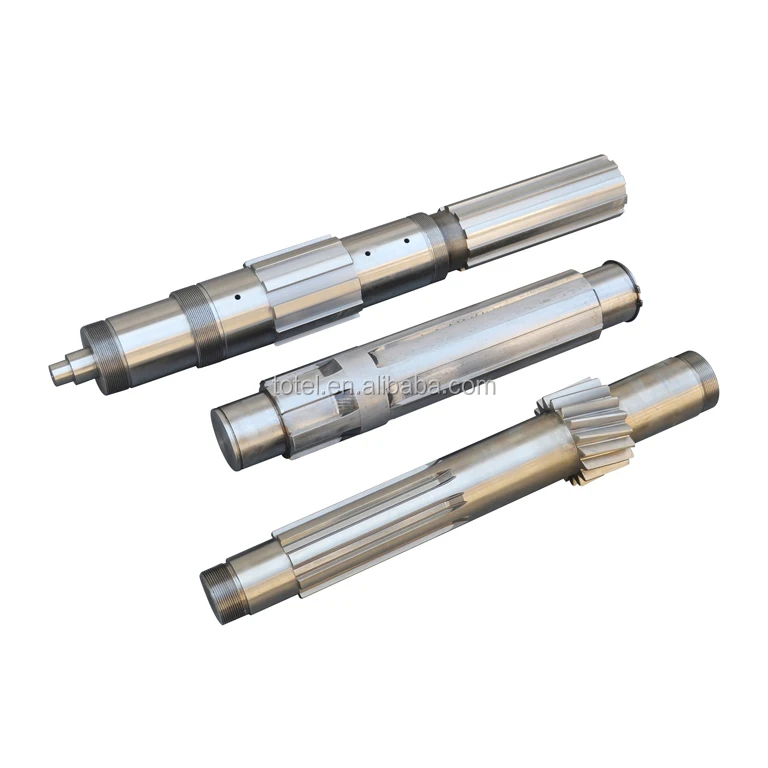

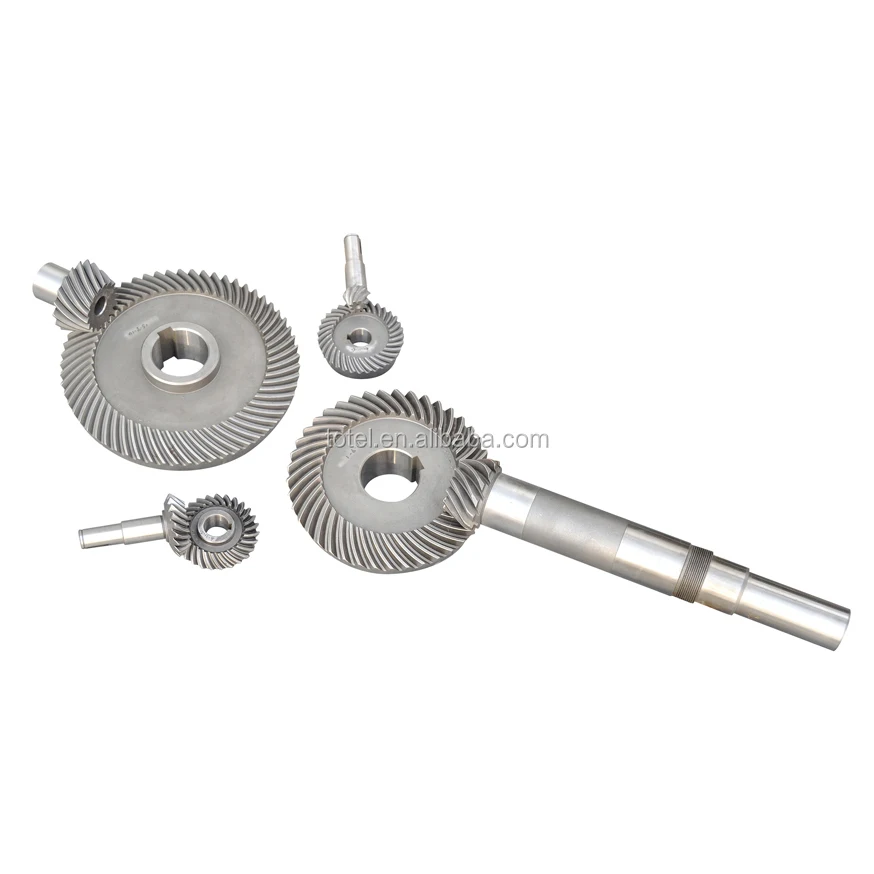

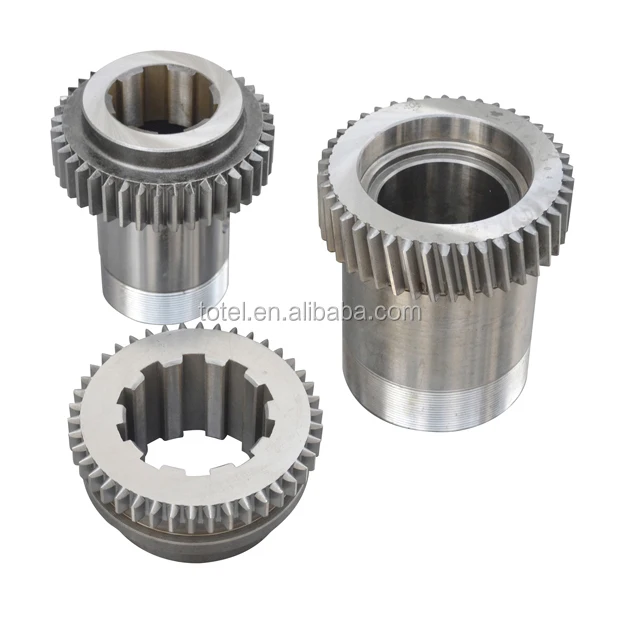

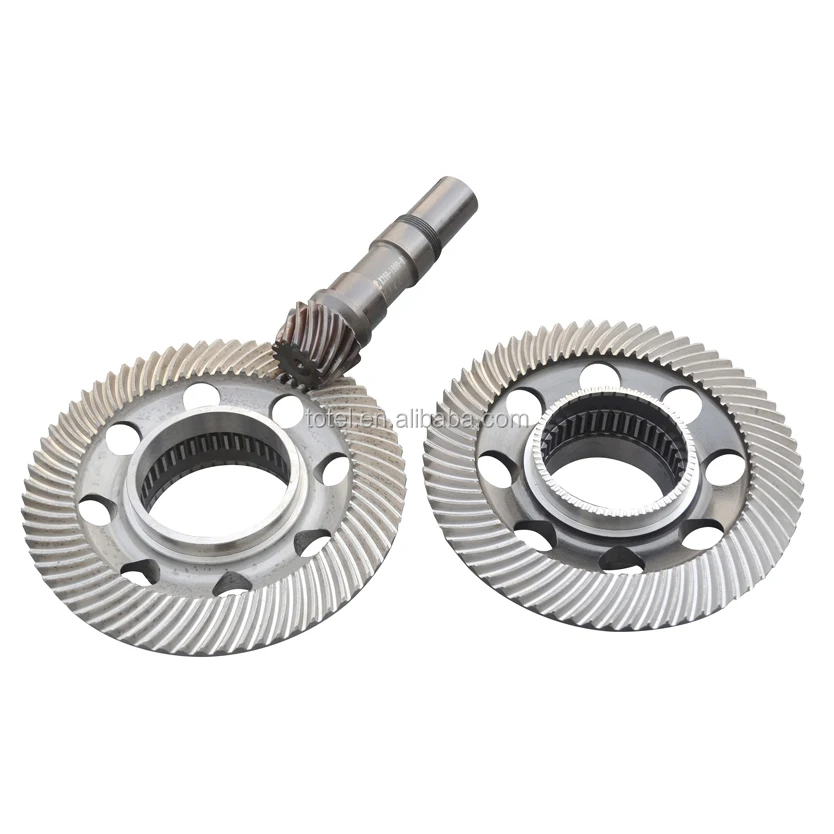

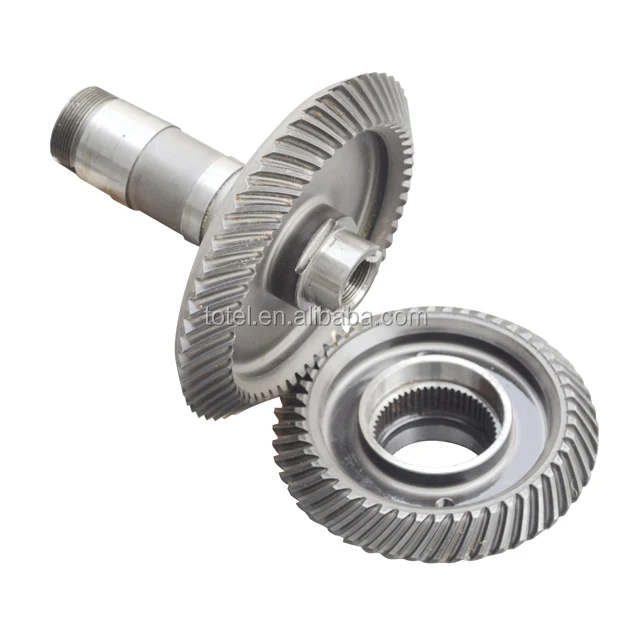

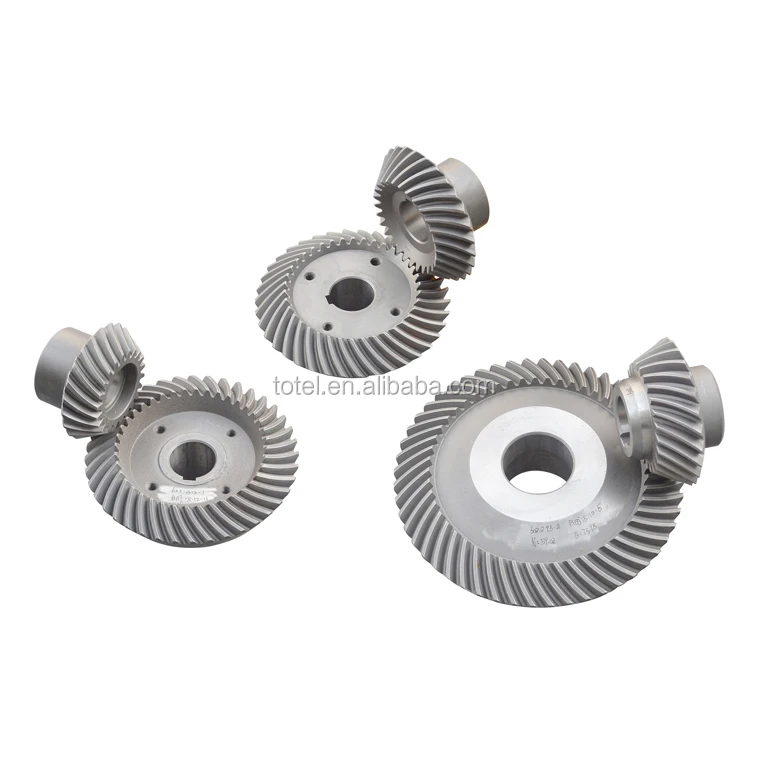

3.Photo of part products

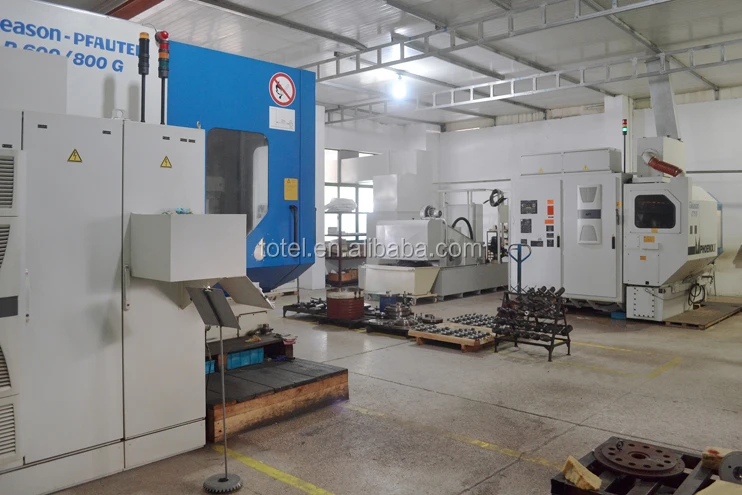

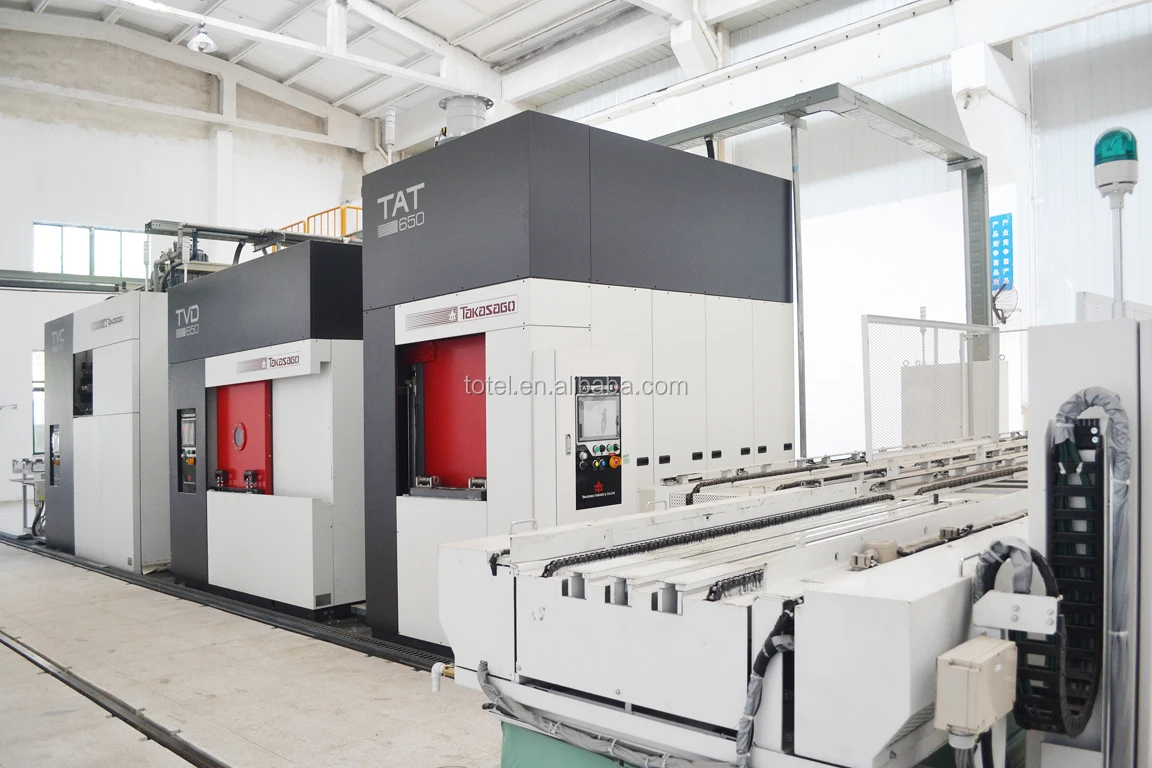

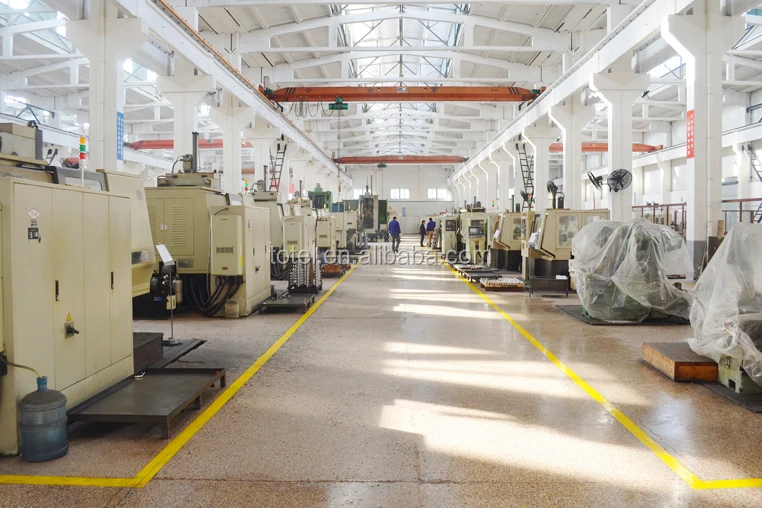

3.Equipment and workshop

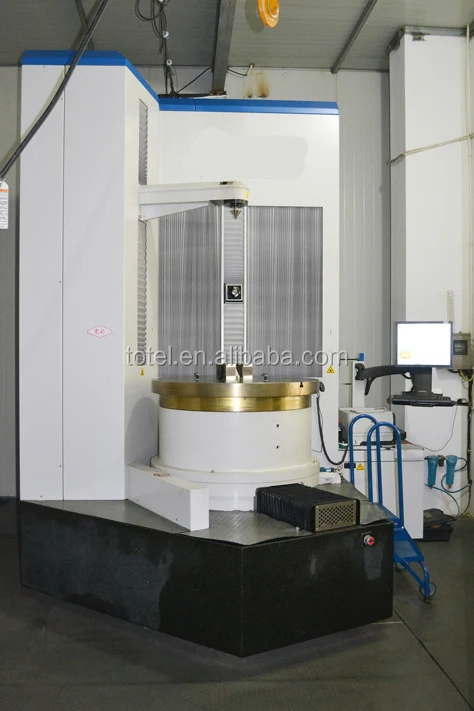

Gear Grinding Machine

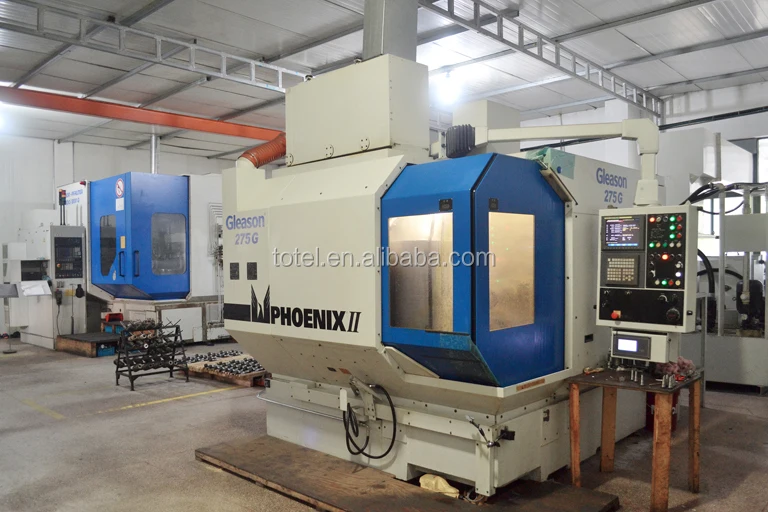

CNC Machine

Testing Center

Heat Treatment Equipment

VIEW MORE
