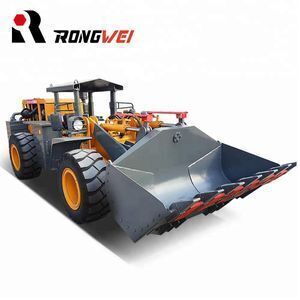

heavy construction mining equipment 2 ton small wheel loader tunnel loading machinery

Product details
Supply Ability:300 Set/Sets per Month;Certification:SGS/CE;
Product name:ZL928 underground wheel loader;Power:85KW;
Tyre:15/70-18 or 1000-20;Port:Qingdao;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,trade assurance;Condition:New;
Place of Origin:Shandong China;Delivery Detail:within 15 days after confirming the deposit;
dumping height:1700mm;Rated load:2000Kg;
After-sales Service Provided:Overseas third-party support available;Brand Name:Rongwei;
gearbox:280;Packaging Detail:Nude in container with triangle wood & 10mm wire one set/20GP two sets/40HQ;
Engine:Yuchai 4102 turbo engine;overall demision:5540*1700*1890mm;
Model Number:ZL928;Color:Customized;

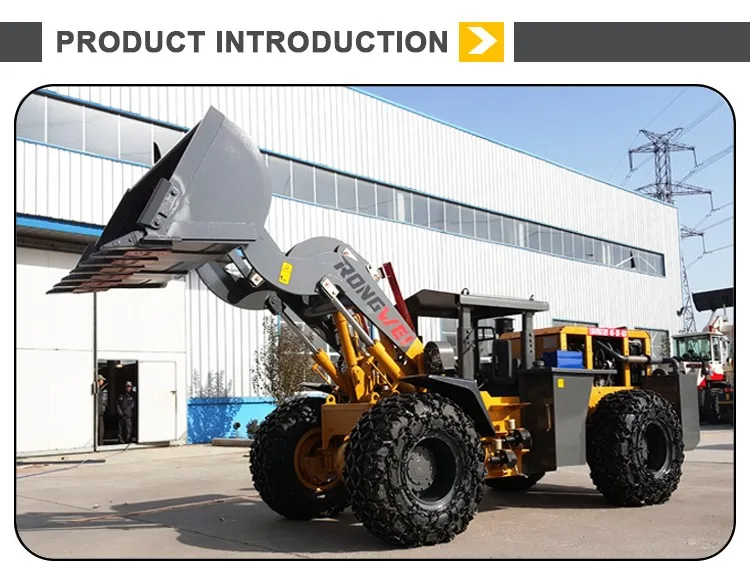

Product Description

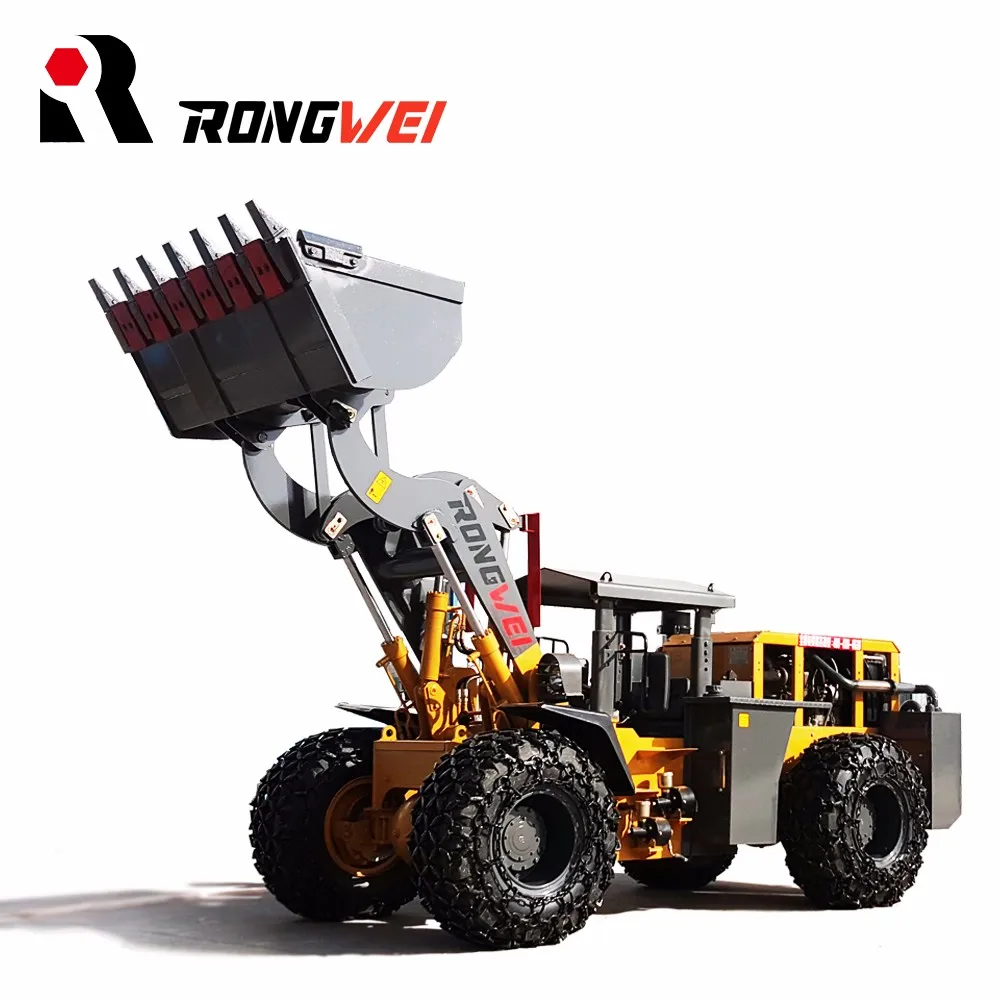

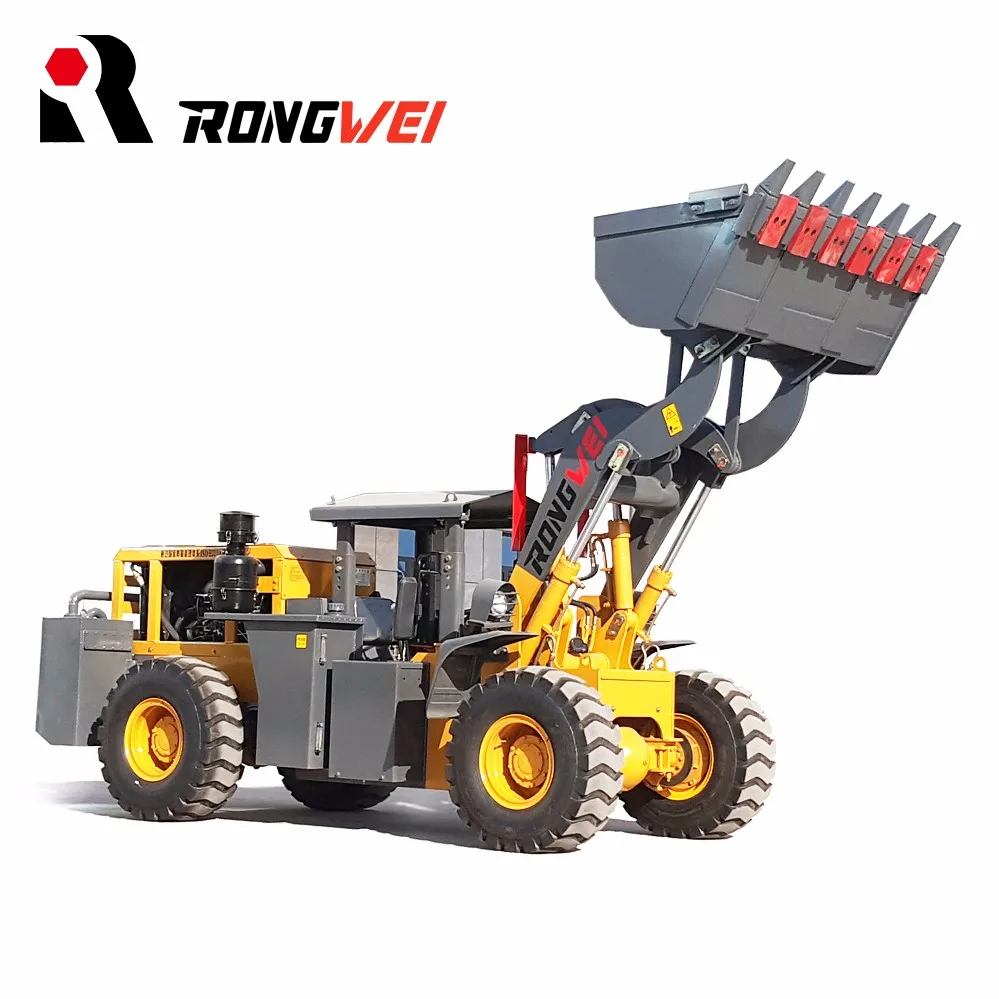

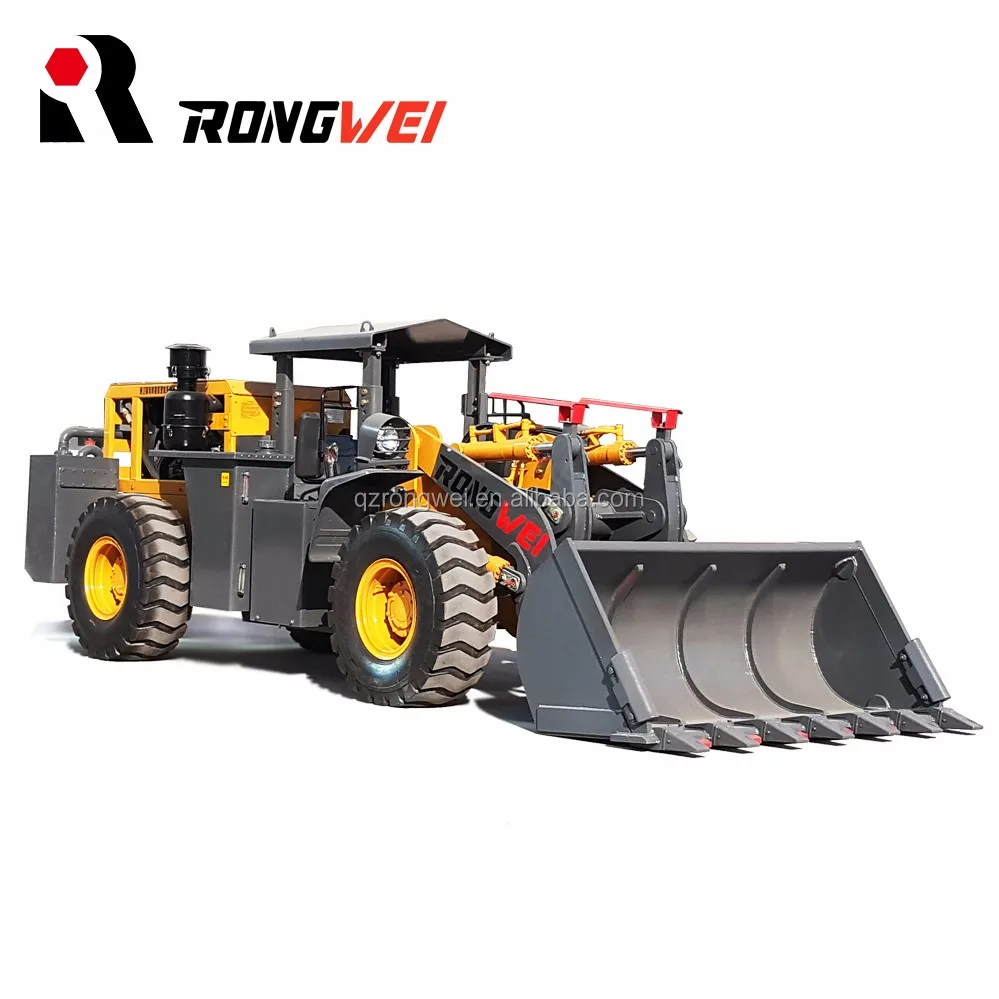

Main specification and characters of Rongwei ZL928 underground wheel loader

1. The ultra-low classis and the open driving vision offer comfortable, safe, reliable driving experiences in ultra-low mines.

2.The large steering angle makes it suitable for flexible operation in narrow mine tunnels

3.Big light more safe.

4. Power shift gear-box, good reliability easy to maintain

5. Large capacity battery. continuous lighting work for 4 hours.

6. Higher efficiency. loading with raw coal up to 120 Cubic meter in one hour.

7. Integrated torque converter transmission.The smaller and more compact structure, small occupied space.
8. Specifically tailored for the mine operation counter-shaft power-shift gearbox, YJ280 torque converter.
9. Air over hydraulic break system
10.New design layout of the Hood.Increase counterweight in the front.

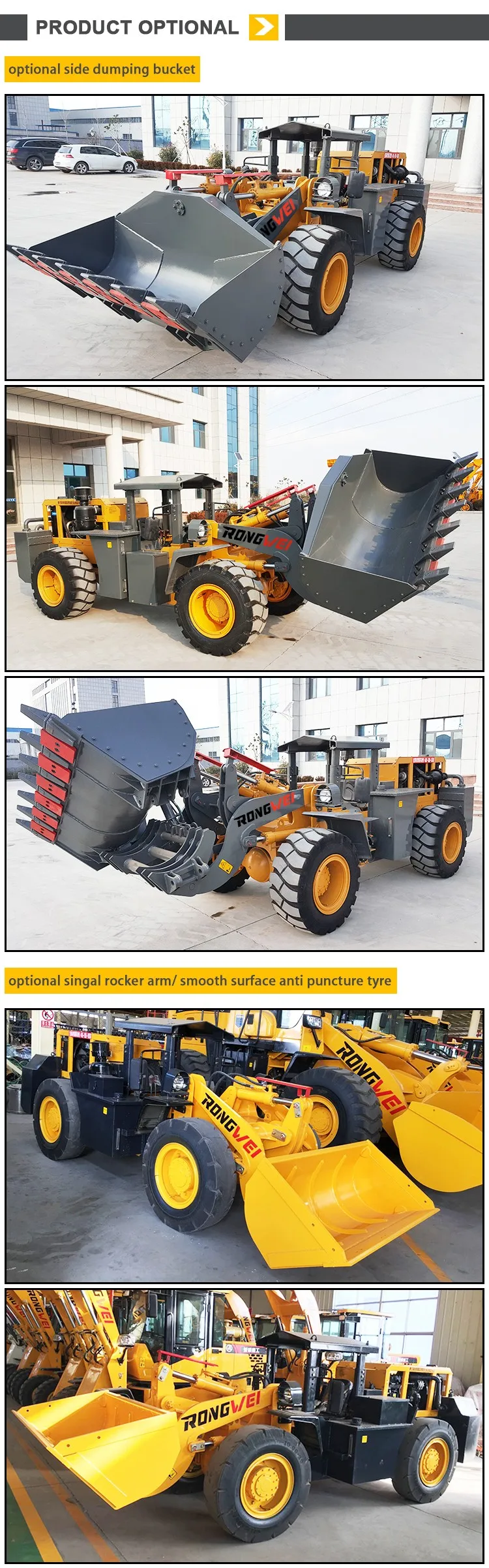

11.Optional: Wheel protection chains;Smooth anti puncture narrow tire.
Side dump bucket;Narrow bucket without teeth.

SPECIFICATIONS OF ZL928 UNDERGROUND WHEEL LOADER






Performance
Rated load
2000kg
Overall weight
5800kg
Rated bucket capacity
1m3
Maximum tractive force
97KN
Maximum breakout force
≥98KN
Maximum grade ability
35℃
Maximum dump height
1700mm
Maximum dump reach
900m
Overall dimension (L*W*H)
5540×1700×1890mm
Minimum turning radius
3750mm




Engine
Model
Yuchai 4102 turbo engine
Type
In-line,arrangement,water cooling, four-stroke
No. of cylinder-bore/stroke
4-102×115mm
Rated power
85kw--2400r/min
Maximum torque
280N.m
Min fuel-consume ratio
≤225g/kw.h


Transmission system
Torque converter
280
Gearbox mode
Power shift normally engaged straight gear
Gear shift
2 forward shift  2reverse shift
Maximum speed
35km/h



Drive axles
model
underground  heavy drive axle
Decelerating mode
planetary reduction,grade 1
Wheel base (mm)
2150mm
Wheel tread
1400mm
Minimum ground clearance
300mm



hydraulic system
System working pressure
16MPa
bucket lifting time
≤3.5
bucket falling time
≤3
Total time for a single working cycle
≤8
Function of leveling automatically
yes

Brake system
Service brake
air over hydraulic disc brake on 4 wheels
Parking brake
manual parking brake


Tyre
Type specification
15/70-18 or 1000-20
Front tyre pressure
0.4Mpa
Rear tyre pressure
0.35Mpa

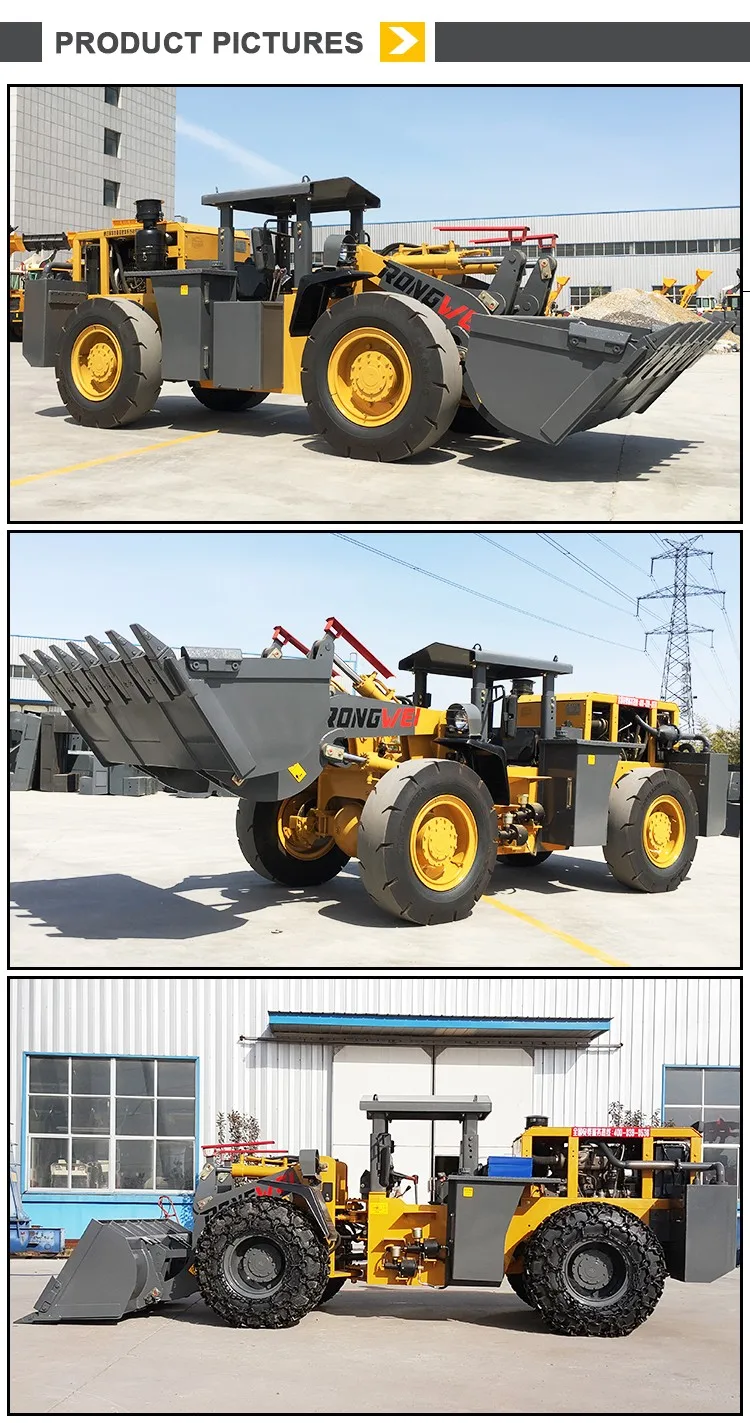

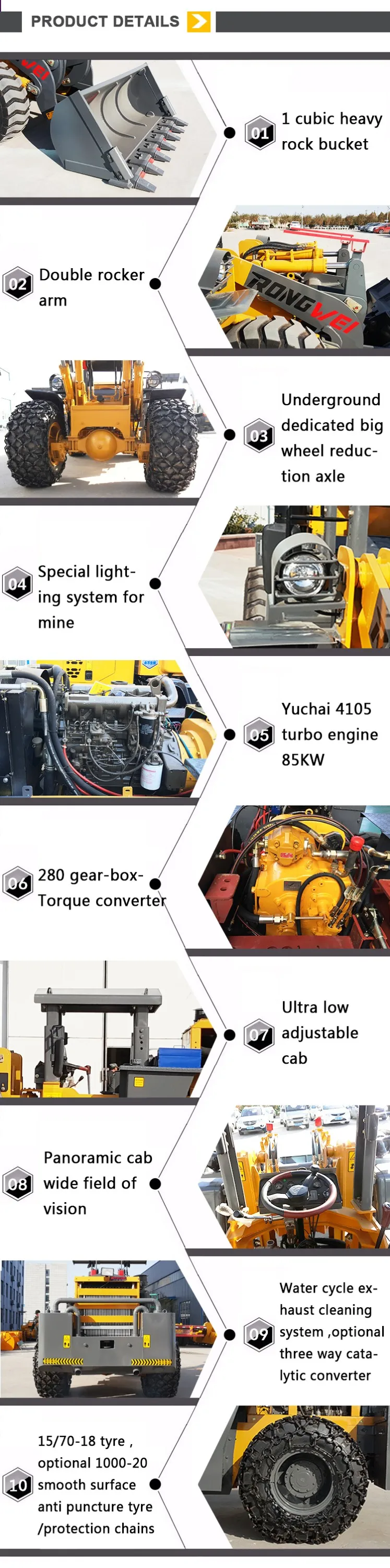

Detailed Images
Certifications

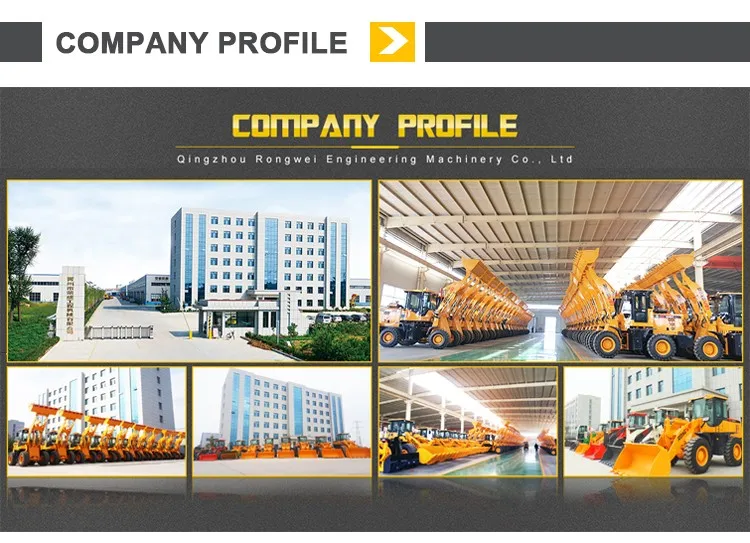

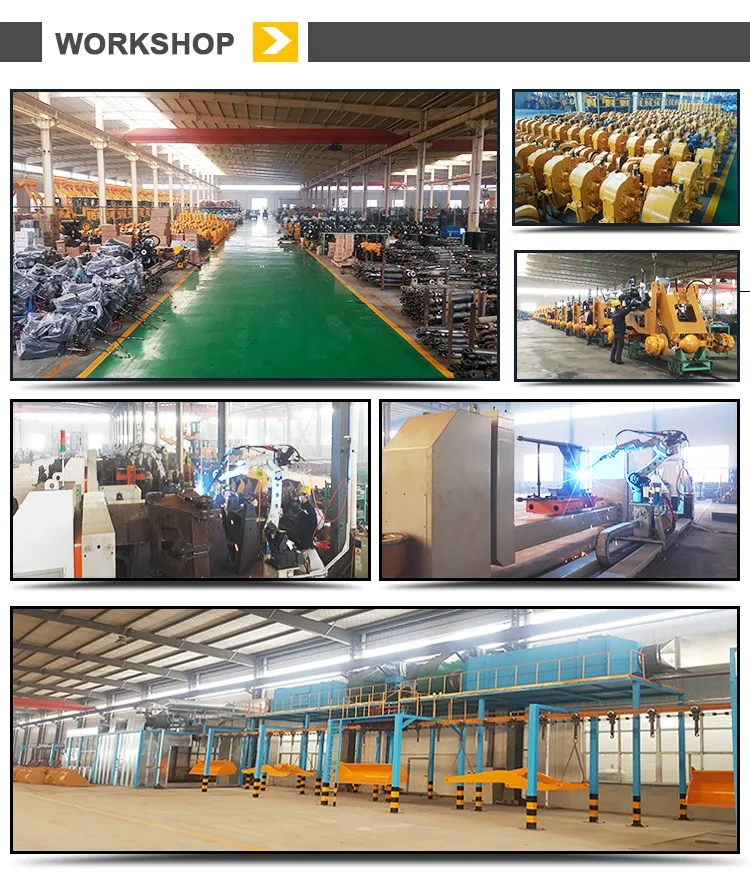

Our Company

Established in 2008, Qingzhou Rongwei Engineering Machinery Co., Ltd has be a professional manufacturer and export that is concerned with design, development and production of verity of wheel loaders from 1 ton to 5 ton capacity. Our factory located in Qingzhou, Weifang, Shandong province, with convenient transportation access. All of our products comply with international quality standards and has Approved Ce Certification and SGS certification. Rongwei verity of wheel loaders has got good reputation among our domestic and foreign customers.
Rongwei brand wheel loader is multi-functional, with more than 30 durable, safe and effective attachments design for different kinds of job. We are looking forward to provide you the most comprehensive field solution and the most perfect products and service in the most critical time.
Welcome your inquiry and visit.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

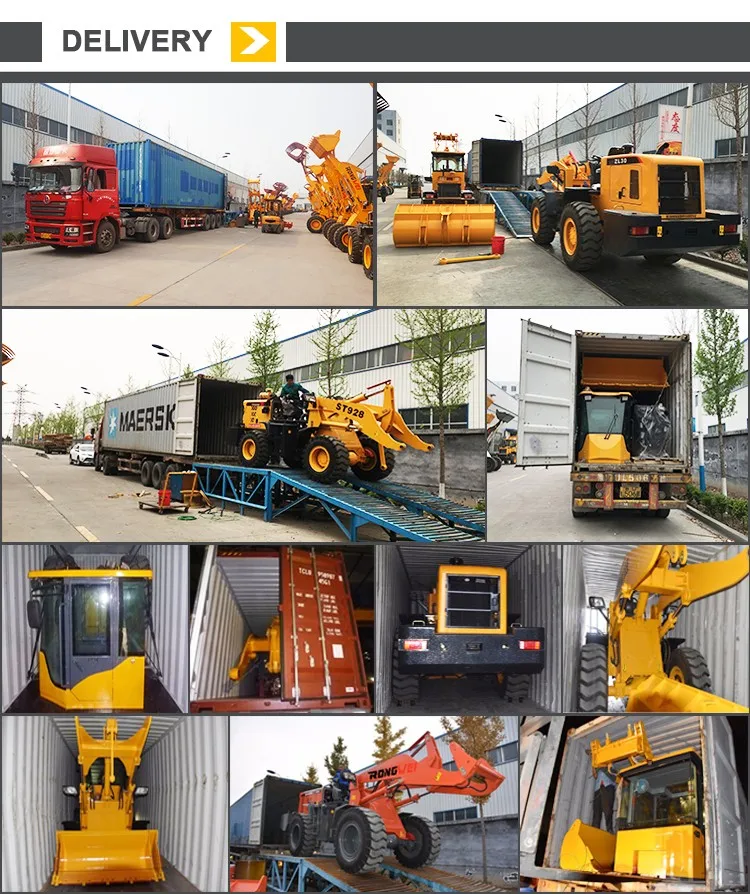

Packing & Delivery

one set loading in 20GP container

two sets loading in 40HQ container

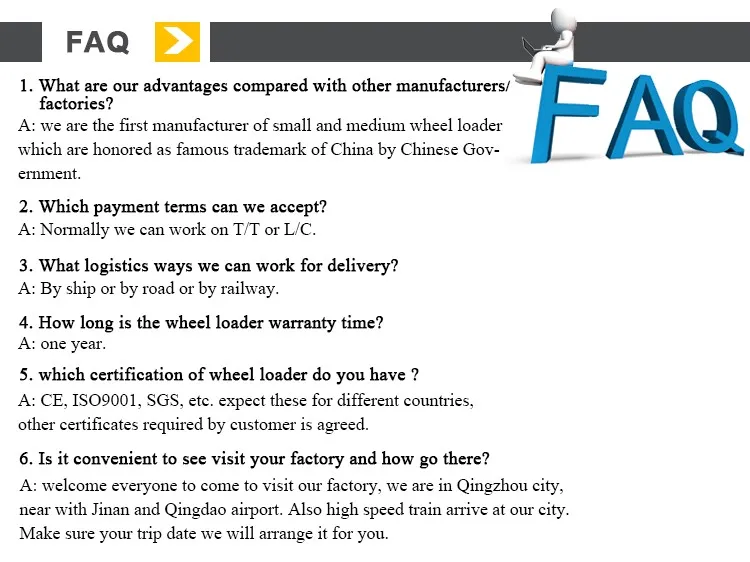

FAQ
