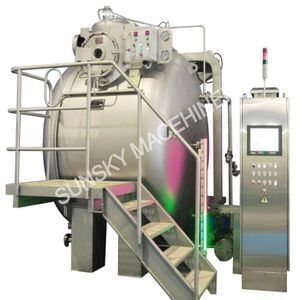

Low Liquor Ratio/Low Power Consumption/Low Maintenance Cost High-Temperature Overflow Fabric Dyeing Machine

OH series low liquor ratio,low power consumption,low maintenance cost,high-temperature high pressure overflow fabric dyeing machine is suitable for the scouring/bleaching/dyeing/washing of all types of knitted and woven fabrics :Cotton,Modal,Viscose,Tencel,Rayon,Wool,Acrylic,Lyocell,Nylon,Polyester blended and lycra blended,etc.

 Machine is designed and manufactured in accordance with pressure vessel standards GB 150, with maximum working temperature of 140 degrees and maximum working pressure of 0.36 Mpa. All parts in touch with dye liquor is made of corrosion-resistant stainless steel S31603 (316L) material. With a specially-designed nozzle structure, it enables the fabrics in loose and expanded conditions during the dyeing process. It has an excellent performance in dyeing tight and heavy fabrics and can eliminate the crease mark problem,which is usually seen in other dyeing machines. Meanwhile, the machine has two ropes loading capability.

1.  Low Liquor Ratio; 1:3.5~4.5 (100% cotton maximum in 1:4.5)

2. Operating Speed: 450M per minute
3. Maximum working temperature: 140'C
4. Maximum working pressure: 0.36Mpa
5. Temperature heating rate: 5'C per minute on average from 25 to 100'C, 2.50C per minute on average from 100 – 130'C (Pressure of dry saturated vapor: 0.7Mpa)
6. Temperature cooling rate: 3'C per minute on average from 130 to 100'C, 2'C per minute on average from 100 to 85'C (Cooling water pressure: 0.3Mpa, 25'C).

Sunsky is an experienced machinery manufacturer since 2004,it's located in Wuxi,JiangSu Province,China(50mins by train from Shanghai).We're focusing on dyeing and finishing machines for various textiles.After a decade of innovations and development, Sunsky becomes an expert in the field of textile dyeing machines, including normal temperature dyeing machine, high temperature dyeing machine, pre-treatment and after-treatment machines. We make designs according our customer's requirement, continuously improve our techniques, optimize designs and also take the issue of environment into consideration. Sunsky dyeing machine has been well received by domestic and foreign customers.On the basis of 10years professional manufacturing experience,we have successfully developed a new generation of liquor ratio 1:3.5~4.5, energy saving type OH/UH,and 1:2.8~3.5 yarn dyeing machine model SS241H.

Packaging of Electrical Control Panel:

• Your any inquiries will be replied within 12 hours.
• We offer you professional services in fluent English.
• Quality: we have QC on each process in production.
• We will give the right schedule and quality machine.
• Without man-made faults,the warranty is 18months after commissioning,spare parts can be replaced within 3months since the delivery of dyeing machine.
• Engineers available to service machinery overseas,commissioning and technical support,etc.
• Our factory is located in Wuxi,JiangSu(50mins by train from Shanghai)
• To contact us by email Dyeing(a)sunsky-machine.com Wechat:Cpa588
