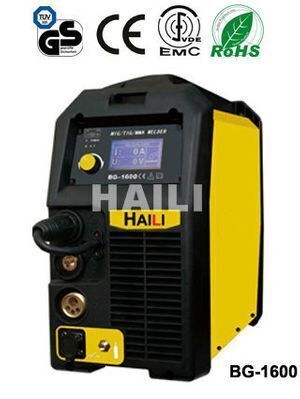

Inverter Dc IGBT MCU MIG/TIG/MMA 3 In 1 MIG Welding Machine(BG-1600)
- 50.00 >=100 pieces
| OEM: | Available; | Rated Duty Cycle: | 60%; |
| Model Number: | BG-1600; | Pilot Arc Current: | 22A; |
| Accessories: | MIG Torch,TIG Torch,Electrode Holder,Earth Clamp,Welding Mask,Brush; | Brand Name: | HAILI; |
| Packaging Detail: | Carton; | Certification: | CE/GS/EMC; |
| Port: | NINGBO/SHANGHAI; | Payment Terms: | T/T,Western Union; |
| Supply Ability: | 10,000 Piece/Pieces per Month; | Place of Origin: | Hunan China (Mainland); |
| Pulse Frequency: | 50/60Hz; | Condition: | New; |
| Usage: | weld mild steel, alloy steel and steel; | Dimensions: | 44*21*41cm; |
| Color: | Any color according to client; | Delivery Detail: | 15-30Days; |
| Arc Current: | 10-160A; | Inveter technique: | IGBT; |
Inverter IGBT MCU MIG/TIG/MMA 3 In 1 Welder
Features:
1.Adopt IGBT & advanced PWM inverter technology,
2.High performance 32bit MCU and LCD display
3.DC MIG,LIFT TIG,MMA functions
4.ARC force,hot start can be adjusted in the manual welding
5.Current dropping and gas aspirated time can be adjusted in the argon arc welding
6.Selective modules:EMC,VRD (Add different function module,the parameter will change)
7.Synergic HOME function antomatically manages ideal voltage while only adjusting
wire feed speed.
8.Compact,light weight,portable.Compatible Power Generator
9.Intelligent portection:Over-voltage,low-voltage,over-current.over-heat.
APPLICATION:
1.Application to automobile manufacturing,engineering machiniery,shipbuilding industry,
Aviation and agricultural machinery ,etc
2.Apply to general carbon steel,excellent carbon steel,low alloy steel,conducting butt welding,
Lap welding and fillet welding of all space position.
3.Apply to :Φ0.8-1.2mm welding wire,fixed location welding,various kinds of thin thickness of the common parts, frame and auto industry.
Technical specification:
Model:BG-1600
Welding Function | MIG TIG, MMA | Rated input current(A) | 22 16.4 26.4 | No load voltage(V) | 56 |
Input Voltage(V) | 220/230/240 | Rated input power(KW) | 3.9 2.9 4.7 | Current range(A) | 5-160 |
Duty cycle(25°C 10min) | 160A 60% 150A 80% 100A 100% | Duty cycle(40°C 10min) | 160A 40% 125A 60% 100A 100% | Insulation class | F |
Dimensions (L*W*H mm) | 440*215*405 | Net weight(kg) | 13 | Protection class | IP23S |
