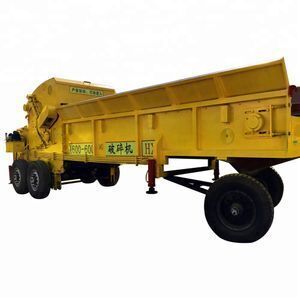

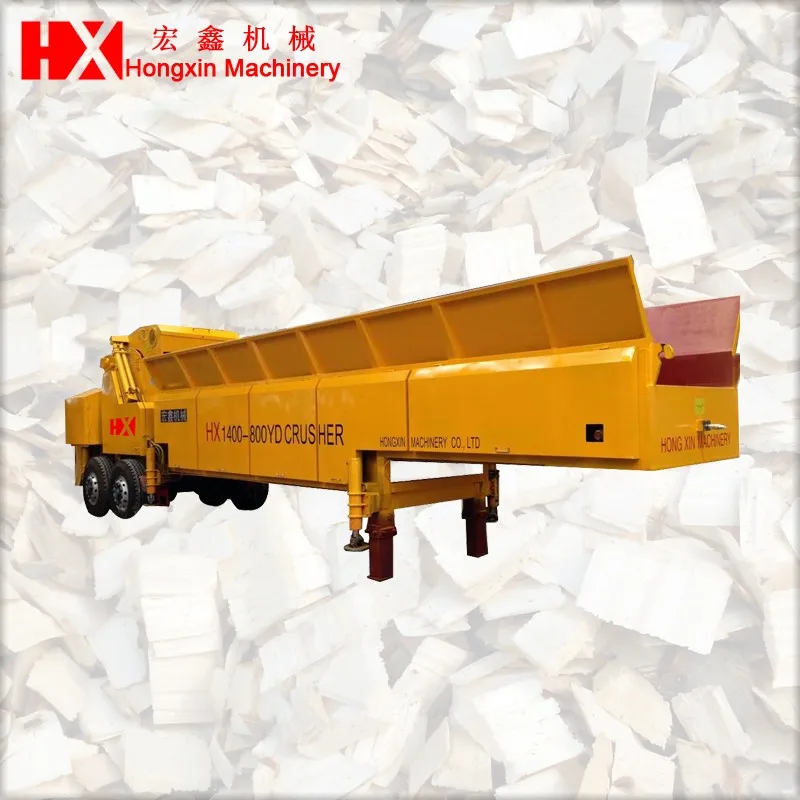

drum wood chipper in biomass power plant

Supplier: Shandong Hongxin Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr shawn geng
Price: $77500.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

After-sales Service Provided:	Engineers available to service machinery overseas;	Aperture Size:	Optional;
Packaging Detail:	1x40'FR for drum wood chipper 1x20'GP for drum wood chipper;	Feeding motor power:	11+7.5kw;
Screen size:	60-100mm;	Payment Terms:	L/C,T/T;
Place of Origin:	Shandong China;	Weight:	27000kgs;
Mill Granularity:	30-120mm;	Rotor diameter:	800-1100;
Number of Cutter:	4;	Supply Ability:	10 Unit/Units per Month drum wood chipper;
Delivery Detail:	30days after payment;	Hydraulic motor:	4kw;
Dimension(LWH):	12000x3000x3600mm;	Condition:	New;
Name:	drum wood chipper;	Inlet Diameter:	1260-1400;
Purpose:	change biomass material into small wood chips;	Rotation speed:	900rpm;
Spindle Speed:	950rpm;	Main motor power:	200-250kw;
Length of Cutter:	600-800;	Model:	HX1400-8500, 700, 800;
Cutter Diameter:	800-1300;	Model Number:	HX1260-500-1400-800;
Discharging motor power:	11+5.5kw;	Port:	Qingdao;
Certification:	CE ISO;	Brand Name:	HX;


Application

Feedstock

Output

Specification

Name	drum wood chipper
Model	HX1400-500	HX1400-700	HX1400-800
rotor diamter (mm)	800	960	1100
cutter quantity (piece)	2 or 24	2 or 24	2 or 24
power (kw)	feeding 11+7.5	feeding 11+7.5	feeding 11+7.5
	main 200	main 250	main 250
	discharge 7.5+4	discharge 7.5+5.5	discharge 11+5.5
	hydraulic 4	hydraulic 4	hydraulic 4
input conveyor (mm)	4	6	6
output conveyor (mm)	10	10	10
input size (mm)	1400-500	1400-700	1400-800
capacity (TPH)	15-20	20-25	20-30
weight (ton)	20	22	24
dimension (m)	7.3 x 2.6 x 2.6	9.6 x 2.6 x 3.1	9.9 x 3 x 3.3

Detailed Images

Name: feeding conveyor

Feature:

link-joint type

matrial is high manganese steel

long service life

Name: Screen
Feature:
high strength steel,
stereoscopic welded,
more durable

Name: Blade
Feature:
material is H13,

interchangeable,

easy for change,

long serive life

Name: hammer
Feature
material is alloy YT15,

long service life

easy for change

Name: Control cabinet

Feature

high frequency control

easy oepration

high safety

Name: Hydraulic system

Function

easy for checking and replacing of cutter, screen,etc

adjust feeding roller to adopt wide range raw material

Packing & Delivery

1x40'FR + 1x20'GP

Video center

Video link

http://biomassvideo.com

http://id.tudou.com/snowhappiness

Working site

About us

Manufacturing Equipments

Partners

......

Certifications

Inuqiry Tips

When send us inquiry, please try to tell us the following information:
1) What is the raw material?
2) Dimension of raw material?
3) Moisture of raw material?
3) Output wood chips size?
4) Production capacity per hour?
5) Fixed type or mobile type?
6) Is power electric motor or diesel engine?

This will help us to offer you a suitable model.
