Smart Electronics~Best Price Membrane Switches, Membrane Keypads and led membrane graphic overlay

Product details
Dimension:According to customer's demand,OEM service;Place of Origin:Guangdong China;
Character:Best service + best price+best quality;Keypad Button Material:Other;
Model Number:membrane switch;membrane switch:membrane switch,keypad,membrane keypad,keypad switch,switch panel etc;
Color:Pantone and real color matching system.;Application:Home Appliance,electronic equipment;
Brand Name:Smart;Rear Adhesive:3M467,3M468,3M9448 ect;
material:PET,PC. In experience we suggest that PET is the better choice;Supply Ability:30000 Meter/Meters per Month membrane switch;
Packaging Detail:vacuum package;Port:ShenZhen;
Payment Terms:T/T,Western Union,paypal;
Membrane Switch



Membrane keypad/switch applications:


1.Medical Equipment


2.Telecommunications apparatus


3.Telephone systems


4.Household appliances


5.Security systems


6.Point of sale apparatus
7.Industrial controls


8.Access control systems


Membrane Switch technologies that include:


  • Tactile & Non-tactile, Metal Dome & Polydome
  • Polymer-thick Film, Polyimide, or FR4 substrates
  • LED, EL, and Fiber backlighting
  • AMP, Nicomatic, FCI connector systems
  • Harsh & Rugged Environmental solutions


Our Advantageous features of Membrane Switches :



1.Inherent moisture resistance,durability ,HeatSeal Reliability

2.Ease of cleaning & sanitizing, good sealed performance so that Provide Harsh & Rugged Environmental  solutions

3.Lower cost

4.Ease of customizing,Reduced space&weight, stable structure

5.Ability to integrate graphics including logos


Membrane Tactile Keypad




As your design


Pantone and RALcolor matching system

Rear Adhesive

3M467,3M468,3M9448,LES300 ect


1)with metal dome,

2)Key:embossed or flat

3)screen printing

4)with clear or transparent window

5)glossy surface or matte surface

6)Standard Tolerances:+/- 0.10inch(+/-0.25mm)

Best service + best price+best quality




Membrane Switch


Polyester or Polycarbonate

Artwork Format

CorelDraw, Adobe Illustrator AI or EPS, AutoCAD Dwg or DXF

Tactile Feel

Is determined by the thickness of the overlayer. Normally between 0.06” -0.08".

Color Verification

Pantone Matching System;The Munsell Color System;Color Samples

Conductive Trace

Silver or Copper


EMI/ESD/RFI can be employed.


Stainless Steel or Mylar

Actuation Force

Depend on customer's requirement. Normally between 30-600 grams.


Depend on customer's requirement. Normally between 0.010" - 0.020".

Life Cycle

5 Million Cycles(up to)

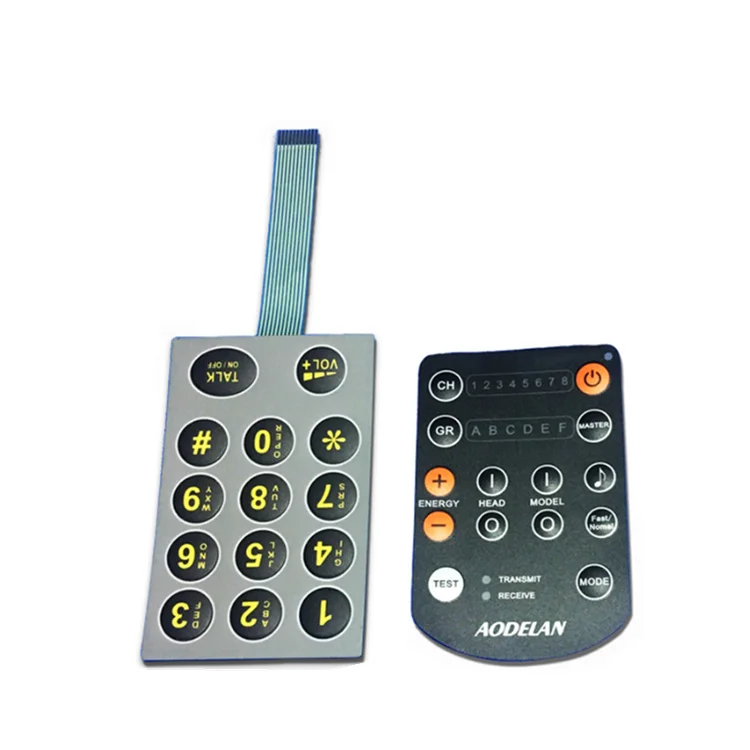

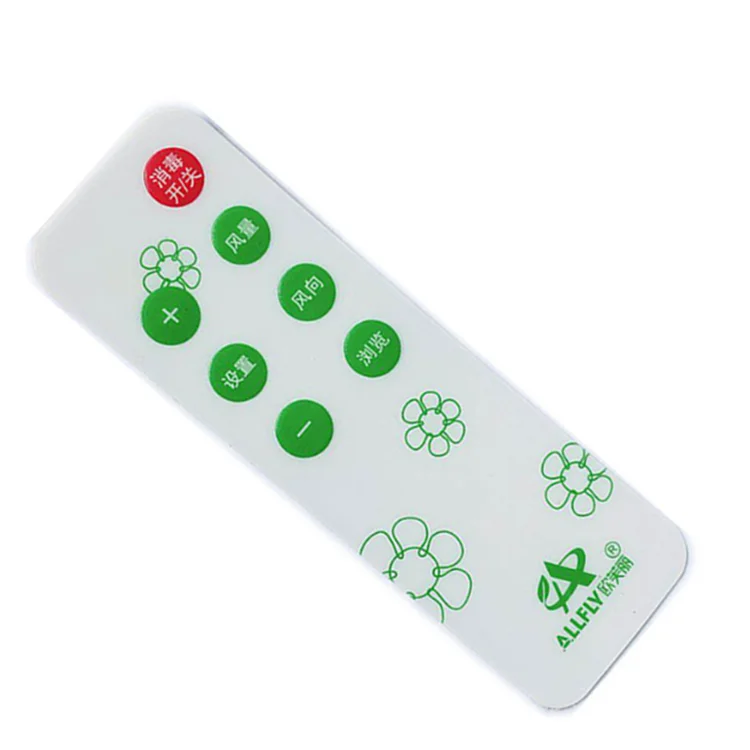

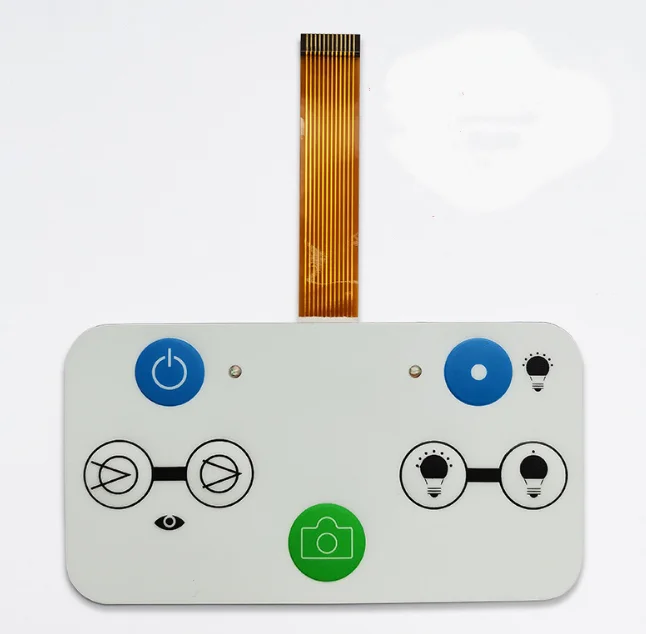

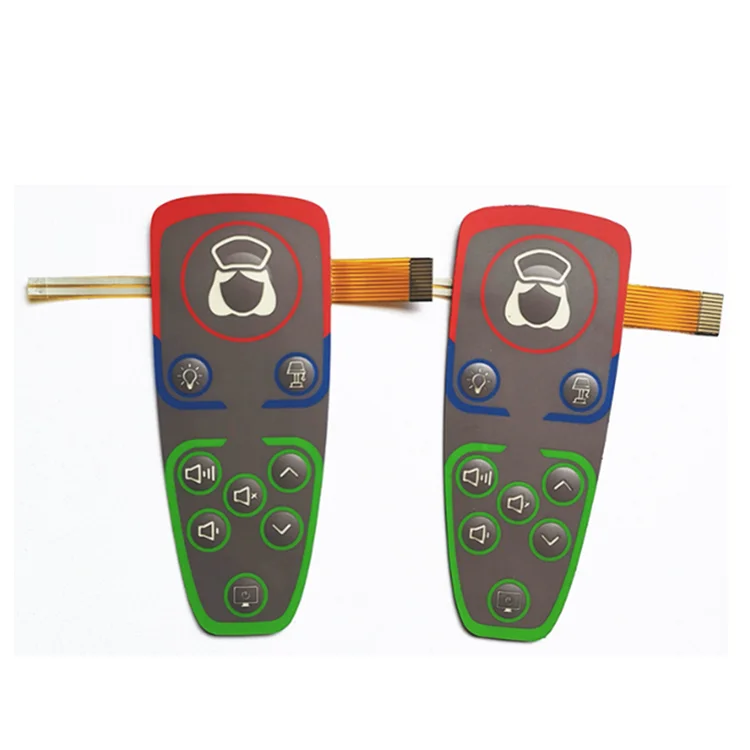

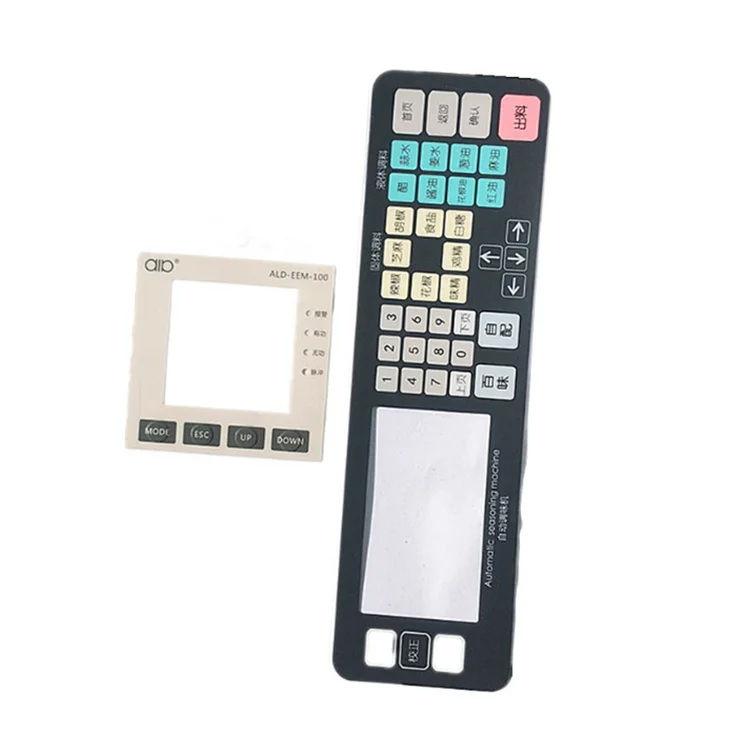

These pictures are just for reference. Please send your CAD / CDR / Corel Draw file to us for customization
