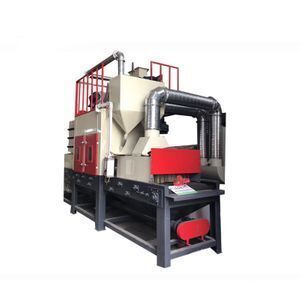

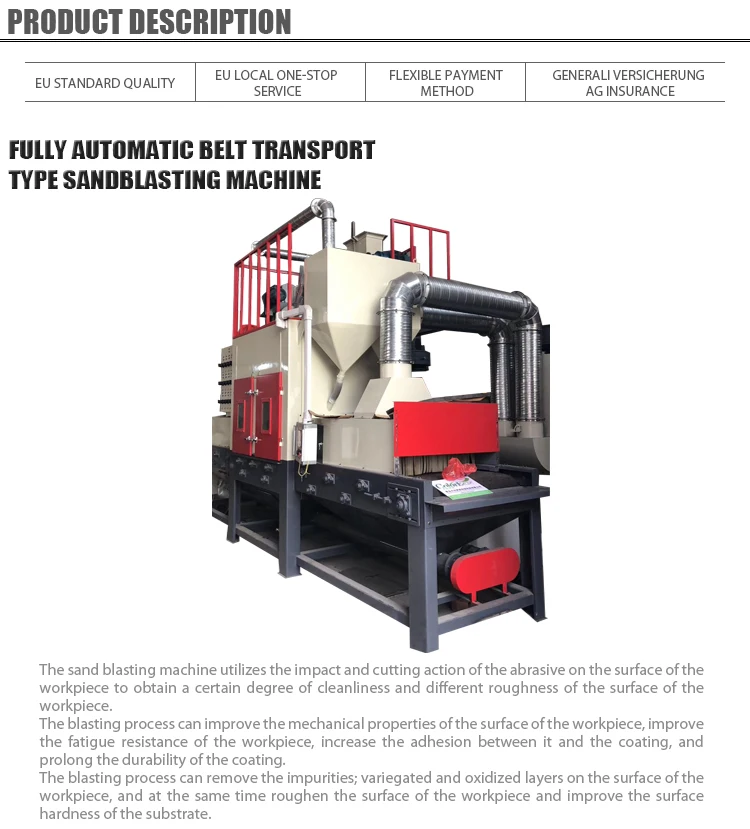

Fully automatic Belt transport type sandblasting machine Suitable for flat, disc and other shaped workpieces

Reference model

Effective Blasting area width

Effective Blasting area height

Conveyor speed Adjustable Frequency

Overall Length

CLE-B900

900mm

300mm

0-3m/min

5000mm

CLE-B1200

1200mm

300mm

0-3m/min

5000mm

CLE-B1500

1500mm

300mm

0-3m/min

5000mm

CLE-B1700

1700mm

300mm

0-3m/min

7000mm

Tips: Whole machine can be customized, please contact us to customize your machine.

Specifications

No

Items

Configuration

Qty

Unit

Function

1

Main Machine

1600×1300×1900

3mmQ235 Steel Plate Made

1

PCS

Provide Sandblast Area

2

Convey Rack

1450×1150×10503mmQ235 Steel Plate Made

2

Sets

Both Side of Convey Belt Locate Right Direction and Bring Workpiece From Belt to Blasting Cabin

3

Lifting Device

Lifting Tank, Dustpan Belt, Belt Wheel, Screw Axle, Driving Axle. Roller, Seal Ring, Discharge Nozzle, Desander

2.2kw Swing Motor

1

Set

Recycle Abrasive (material)

4

Spray Gun

φ8 Boron Carbide

12

Sets

Sandblasting to Workpiece

5

Swing Device

Connecting Rod Swing Structure, 0.75kw Gear Reduce Speed Motor

1

Set

Distance Removable, Position Adjustable for Sandblasting

6

Backing-Sand Hopper

Filter Screen

3

Sets

Filtering. Anti-Blocking

7

Workpiece Convey Device

Belt Convey Type 0.75kwGear Reduce Speed Motor

1

Set

Workpiece Go to Blasting Cabin Automatically

8

Impulse Filter Drum Dust Remover

MCYT325×100×6

1

Set

Remove Dust

10

Exhaust Blower

4-72-4-5.5KW

1

Set

Remove Dust

Model CLE-B900. Please contact us for other models or customizations.
