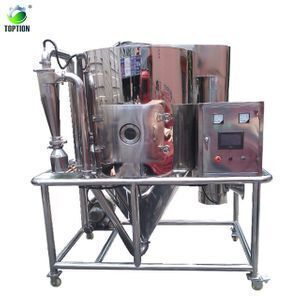

industrial spray dryer Blood meal Spray Dryer 5L Centrifugal Rotary Atomizer Spray Drying machine price with CE & ISO

Product details
After-sales Service Provided:No overseas service provided;Temperature range of Inlet air:30°C -300°C;
Condition:New;drying time:1h~1.5h;
Voltage:380V;Stainless steel tank diameter:800mm;
Service:Customized;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal; Trade Assurance;
Type:Rotary Drying Equipment;Speed of squirt pump:5000ml/batch;
Certification:CE ISO;Supply Ability:3000 Unit/Units per Year industrial spray dryer Blood meal Spray Dryer;
Brand Name:TOPTION;Dried powder restoring rate (%):≥95;
Spray direction:downwards co-current;Product name:Centrifuge Rotary Atomizer Spray Drying machine;
Precision of temperature:± 1 °C;Warranty:one year;
Packaging Detail:industrial spray dryer Blood meal Spray Dryer : in standard safe wooden exporting package or based on your special requirement;Port:Shanghai/ Shenzhen;
Delivery Detail:Shipped in 5 days after payment;Place of Origin:Shaanxi China;
Power(W):10kw;Dimension(L*W*H):1700*1100*1150mm;
Temperature range of outlet air:30°C -140°C;Model Number:TP-S50 5L spray dryer;
Weight:300kg;

industrial spray dryer Blood meal Spray Dryer 5L Centrifugal Rotary Atomizer Spray Drying machine price with CE & ISO




Hot tags: spray dryer/ spray dryer price/lab spray dryer/ mini spray dryer/ price for spray dryer/
spray dryer machine/ used spray dryer for sale/ industrial spray dryer/ milk powder spray dryer
used laboratory spray dryer/ precio para spray dryer/ used spray dryer/ used spray dryer/ mini spray dryer price
niro spray dryer/ spray dryer lab/ vacuum spray dryer/ milk spray dryer/ laboratory spray dryer price

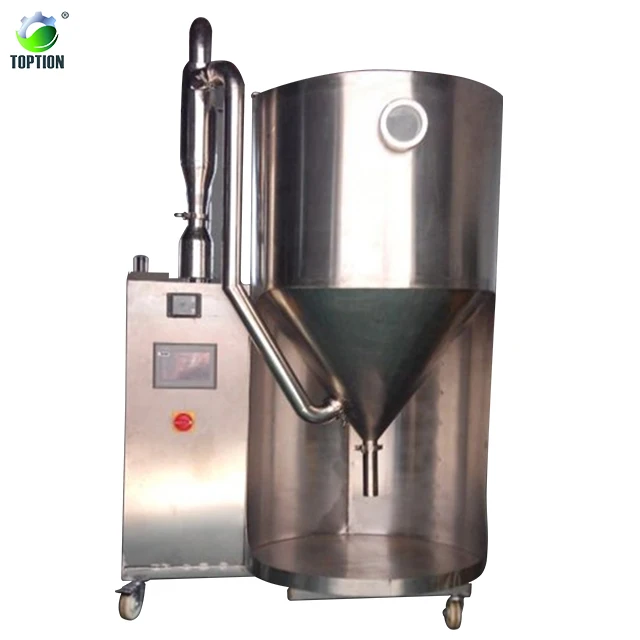

Centrifugal Rotary Atomizer Spray Dryer

industrial spray dryer  Blood meal Spray Dryer



1. Technical parameters  centrifugal rotary atomizer spray dryer price:



Max capacity: 5000ml/batch



Temperature range of Inlet air: 30°C -300°C



Temperature range of outlet air: 30°C -140°C



Precision of temperature: ± 1 °C



Dryer time: 1.0-1.5 S



Speed of squirt pump: 5000ml/batch



Spray direction: downwards co-current



Total power: 10KW   380V



Stainless steel tank diameter: 800mm



Dried powder restoring rate (%): ≥95



Atomizer speed: 40000rpm



Dimension: 1700*1100*1150mm







2. Introduction of Innovative TOPTION centrifugal rotary atomizer spray dryer price  :



Laboratory table top spray dryer is the latest type of TOPTION which adopts advanced international technology and spare parts.



TOPTION Laboratory Spray Dryer assembles many of new design, for example, small size for free moving, combining air compressor and electrical heater inside the cabinet, glass spray and cyclone separator for inspecting. All the data and functions are controlled by PLC.



3. Application Innovative TOPTION centrifugal rotary atomizer spray dryer price :



     Spray dryer can be used in a wide range where the production of a free-flowing powder sample is required. This technique has processed materials in the following areas successfully



     Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs, Food Stuffs, Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgan and many others.



     Most solutions and supernsions can be spray dried providing that the resulting product has the characteristics of material.



     It is popular in fields of Food, biology, material, pharmacy, university, and R&D institute, etc. especially for processing temperature-sensitive material , for e.g., powder, because material only touch air for a brief moment so that heat couldn't destroy the component of material.



4. Working Principle



The air are filtered and heated ,then into the distributor on the top of the dryer, spiral hot air evenly go into drying chamber .



Liquid through the high-speed centrifugal atomizer on the top of the tower , then (rotation)spray into very fine mist droplets,contact with hot air and dried into the finished product in a very short time . Dried product are continuously produced from the bottom of the drying tower and the cyclone , the exhaust are vented by fan .



4.Features  centrifugal rotary atomizer spray dryer



At a high speed of drying, after the spraying of the material liquid, the surface area of the material will be increased greatly. In the hot-air flow, 95%~98% of water can be evaporated at a moment. The time of completing the drying needs only several seconds.



This is especially suitable for drying the heat sensitive materials. Its final products own the good uniformity, mobility, dissolving capacity. And the final products are high in their purity and good in their quality. The production procedures are simple and the operation and control are easy. The liquid with the moisture contents 40~60% (for special materials, the contents may reach 90%.) can be dried into the powder or particle products once a time. After the drying, there is no need for smashing and sorting, so as to reduce the operation procedures in the production and to enhance the product purity. The product particle diameters, looseness and water contents can be adjusted through changing the operation condition in a certain scope. It is very convenient to carry out the control and management.



5. Main Characters  centrifugal rotary atomizer spray dryer:



1. High efficient jet imported.



2. LCD touch screen displays temperature, airflow, air pressure, pump speed and jet cleaner frequency.



3. Auto controlling: one touch on/off, once processing parameters are set, peristaltic pump will be auto started; screen displays animation of the whole process of experiment.



4. Manual controlling is available, be able to adjust technical parameters during the process of experiment.



5. With jet cleaner (stylet), its frequency can be automatically adjusted.



6. Power off thermal-protection, push off button and the equipment will stop at once, except draught fan, make sure equipment won’t be burned out by incorrect operation (Forcibly shut fan).



7. Build in oil-free air compressor. The sound is low than 60db, and following the GMP standards.



8. Use PID controller, the accuracy of heating temperature is around±1°C.



9. A filter has been equipped to the inlet unit to prevent the sample from contamination.



10. The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber to avoid secondary pollution. To make sure the process conducted steady and smoothly.



11. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.



12. Automatic jet cleaner (stylet) prevents the jet from becoming blocked and variably controlled.



13. Innovative tower wall purging device, improves the material recycling rate.





related products



Packaging & Shipping

Packaging

-Plywood or carton packaging;
-Both neutral and customized packaging can be available.
Shippment

-We can ship the goods to you by International Express such as DHL, TNT, EMS, FedEX and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.



Certifications

 ISO9001:2008 & CE quality certification, products' quality management system, for every delivery instrument, we have professional quality manager team to cheak, then sign product certification and warranty card. Protect your research and business safe.



Our Services

1. TOPTION Instruments provides ONE YEAR WARRANTY for the products described here.

2. The warranty covers part and manufacturing defects. In the case of a part or manufacturing defect, the device shall be repaired or replaced free of charge under the terms of the warranty.
3. Beyond the warranty period, product problems can also be solved by our company, but charge component cost and maintenance cost properly.
4. TOPTION Instruments shall not assume liability for any damages incurred as a result of improper handling.
5. If you encounter problems when using our products, please contact us by telephone or e-mail, we will be ready to provide consulting, maintenance and other services immediately.
