1-20T/H Capacity Grinding Wood Chips To Sawdust Machine

Supplier: Henan Richi Machinery Co., Ltd.
Region: Henan, China
Contact: Ms RICHI GROUP
Price: $250.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	QINGDAO;	Condition:	New;
Warranty:	free in one year ,free permanent technical support;	Dimension(LWH):	208010001650 mm;
Color:	Green,white and blue, or as your requsted;	Packaging Detail:	Wooden or metal case according to specific size of each saw grinding machine , we twine thick plastic coating for each machine ; tight the equipment in the truck without space to ensure no rubbing during the transportation.;
Power:	11-15KW;	Power(W):	30 KW;
Delivery Detail:	Shipped in 30 days after payment;	Output:	1-2t/h sawdust grinding machine;
Cutter diameter:	500mm;	Place of Origin:	Henan China;
Raw material:	sawdust,wood, wood logs, straw, etc;	Weight:	120KG;
Certification:	CE, ISO;	Brand Name:	Richi;
Voltage:	220V, 380V, Customized;	Supply Ability:	300 Set/Sets per Month grinding wood chips to sawdust machine;
Inlet Diameter:	30-250mm;	Model Number:	R-500 grinding wood chips to sawdust machine;
Spare part:	blade;	After-sales Service Provided:	Engineers available to service machinery overseas;
Blade number:	4;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union;
Fina size:	3-5mm;	Product name:	grinding wood chips to sawdust machine;

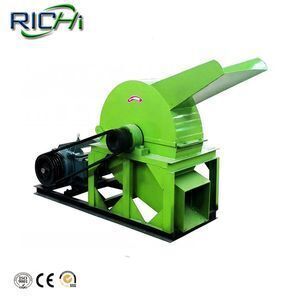

1-20T/H Capacity Grinding Wood Chips To Sawdust Machine

Product Description

The Features of Grinding Wood Chips To Sawdust Machine

1. Electricity-saving: the smallest wood hammer power is only 2.2kw, best choice for home use.
2. Safe to operate, low noise, stable working.
3. Low malfunction rate, easy to operate and low maintenance cost.
4. Could process raw material in different or irregular size into even wood particle size.

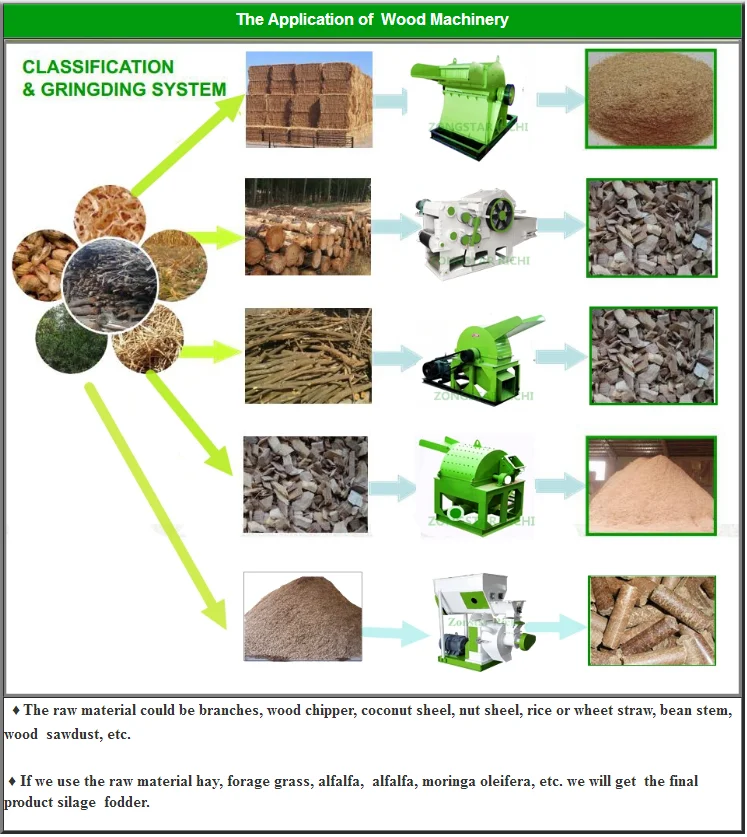

5. Application:crush wood logs,wood block and wood waste into sawdust and granular with different fineness.

6. The wood crusher is component of the base, the feed inlet, cutter, chassis, chipper blades, crushing hammer, screenmesh etc.The wood crusher machine could be driven by the diesel engine, motor, tractor, etc

Technical Parameters of Grinding Wood Chips To Sawdust Machine

Mold	Output capacity(t/h)	Main motor power(kw)	Weight(kg)	Main motor speed(r/min)	Knives diameter(mm)	Blade size(mm)
R-500	1-2	7.5	120	600	500	3
R-600	2-3	15	380	650	600	2-4
R-700	3-5	22	480	600	700	2-4
R-800	5-6	30	550	550	800	4
R-950	6-8	37	800	550	950	4
R-1100	8-12	45	1650	600	1100	4
R-1210	10-12	75	2100	600	1210	4
R-1410	15-20	90	2800	600	1410	4

Components of Grinding Wood Chips To Sawdust Machine

Packaging & Shipping

Note:About the packing: the single machine, usually we use wooden cases or steel cases, if customer transport by whole container, it no need packaging.
we are the manufacturer of the machine,usually we send customer the EXW price or FOB priceif you need the CIF or other price , please tell us your country and port, we will count the price for you.
