trunk type wire take-up machine
| product: | trunk type wire take-up machine; | Port: | shanghai; |
| Place of Origin: | Jiangsu China (Mainland); | Condition: | New; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Brand Name: | Sanlian; |
| Packaging Detail: | wooden cases or according to customers' demands; | Delivery Detail: | About 30 working days after receipt of 30 % down payment; |
| Model Number: | XBSJ400; | Certification: | ISO9001; |
| Supply Ability: | 200 Set/Sets per Year; | Payment Terms: | T/T; |
| Warranty: | 1 year; |
Trunk type wire take-up machine
1. Detailed Description
Product Name: trunk type wire take-up machine XBSJ400
Company established: 1992
Business Type: Manufacturer
Number Of Employees: 100-200 people
Place Of Origin: Jiangyin, Jiangsu, China
Port: Shanghai
Package: wooden case
Delivery Time: 45 days
Feature: XBSJ series trunk take-up machine are used for the take-up of heavy coil of low carbon steel wire, copper wire, aluminium wire and so on, and mainly used along with the wire drawing machine to ensure the whole drawing and taking-up work can go on continuously. Characteristic of the machine: electromagnetic speed adjusting motor driving, dynamic balance excellent, fixed speed matching with the wire drawing machine, heavy coil, manpower saving.
2. Main technical parameter:
Model | XBSJ-750 | XBSJ-650 | XBSJ-400 |
Drum diameter | Φ750mm | Φ650mm | Φ400mm |
Wire diameter of finished product | Φ2.2-5.5mm | Φ1.6-4.0mm | Φ0.8-1.6mm |
Take-up speed | 300-600m/min | 300-640m/min | 400-800m/min |
Remarks | The mechanical speed ratio and the diameter of drum all can be designed according to customers' needs. | ||

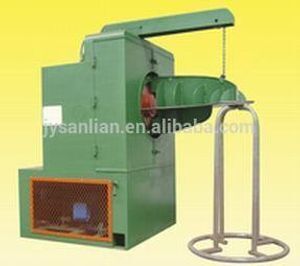

3. Pictures of the machine:
