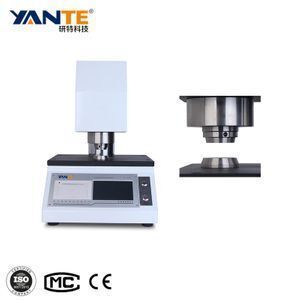

YT-H4E 0 001 mm electronic micrometer metal thickness meter

Name

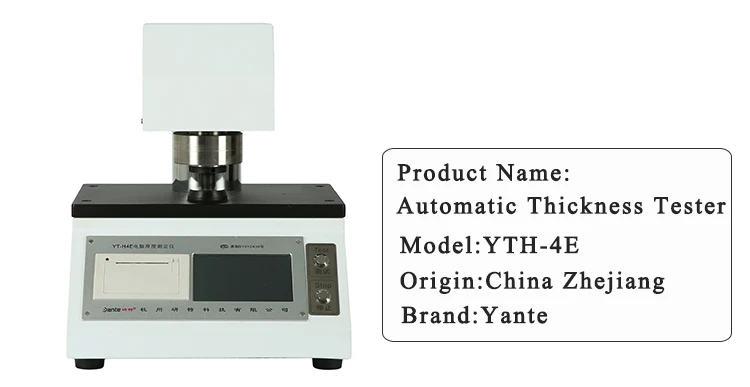

Computer Thickness Tester

Model

YTH-4E

Function

YTH-4E computer thickness tester is my company according to a new national standard detection instrument is developed, this instrument is an electromechanical product, the design criteria of modern mechanical design and ergonomics, is a novel design, convenient use, excellent performance, beautiful appearance and high precision thickness meter. The computer is generous

YTH-4E computer thickness measuring instrument with high precision displacement sensor, instrument with testing, conversion, display, memory, print, data processing, paper, packaging, testing equipment research and product quality supervision and inspection and other industries and sectors.

Key Technical Parameters

Item

Parameter

Unit

Measuring Range

0~5

mm

Resolution

0.001

mm

Indicating  Accuracy

±0.0025 or ±0.5%

mm

Indication Variation Accuracy

≤0.0025 or ≤0.5%

mm

Parallelism Between Surfaces

≤0.002

mm

Contact area

200±5

mm²

Contact Pressure

100±10

kPa

Head Descent Speed

0.5-10 , Adjustable

mm/s

Display

Touch Screen

---

Memory

Test 20 single test data (including the curve data) after shutdown is not stored.16000 sets of statistical data, shutdown is not lost.

---

Communication Output

USB2.0 or standard & RS232 interface

---

Power Supply

AC (100-240),(50-60)Hz,2A

---

External Dimension

410(L)×340(W)×450(H)

mm

Gross Weight

≤33

kg
