Steel Wire Quincunx Inverted Take Up Machine

Product details
Dimension(L*W*H):Customized;Supply Ability:10 Set/Sets per Year;
After-sales Service Provided:Engineers available to service machinery overseas;Power(W):Customized;
Brand Name:Li Neng;coil weight:800-1000 kg;
Production Capacity:90%;Voltage:Customized;
Port:Shanghai;Payment Terms:L/C,T/T;
Model Number:Wire Take Up Machine;Delivery Detail:5 months;
Condition:New;Packaging Detail:Container,good security,water proof for very long vologe;
Place of Origin:Jiangsu China (Mainland);Warranty:Lifetime;
Application:Wire heat treatment;Weight:Customized;
Type:Vertical and invertical;Certification:ISO9001:2008;

Steel Wire Quincunx Inverted Take Up Machine

Product Description

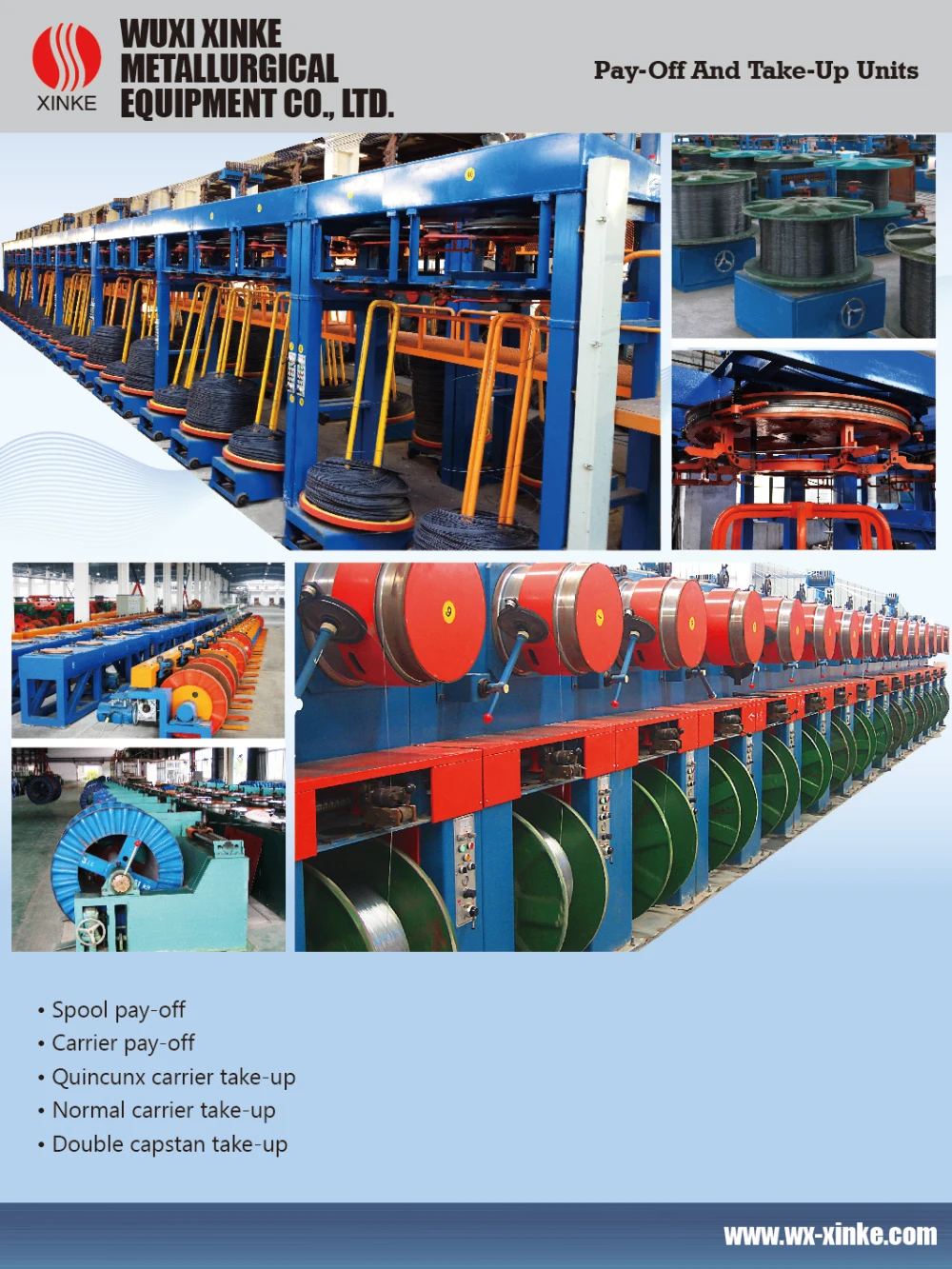

Spool type

Wire diameter: Φ1.0-7.0mm

Vertical

Active

weight: up to 2 tons

Passive

Horizontal

weight: up to 1 ton

 Inverted type

Wire diameter: Φ1.0-13.0mm

            weight: up to 1.5 tons

Double capstan

Equipped with wire accumulating device, could be continuously take-up without stop when replace the lower spool.

         weight: up to 1 ton

Single capstan

Wire diameter: Φ0.8-4.5mm



Inverted type Take up Machine



·Take-up type: quincunx and inverted type

·Coil weight: 1000kg

·Driving type: AC, frequency control the speed

·Drum type: V channel

·Wire feeding path: Fall from top center.

·Take-up frequency motor power: 2.2KW

·Pan rotating power(to reach quincunx effect): 0.55KW, frequency motor

·Coil diameter: Φ600mm

·Layout: 2 rows

·The frame is made from steel structure, fixed by bolts and nuts. The ladder is placed on machine top, in the middle there is a path for workers, and have protective barrier.

·The wire is falling from top center, the drum is fixed, wire guiding roller is rotating.

·Each take-up unit is controlled and driven separately by motor.

·There is a rotating and oblique pan fixed on the trolley, each pan is driven by a AC frequency motor, and with speed reducer. The pan is rotating slowly, the reach quincunx effect take-up, with big weight.

·There is wire accumulation device, can be replace the coil without stopping the take-up machine.

·Operating panel: The machine can be stared or stopped by single, or by total, controlled separately.



Company Information

Wuxi Xinke Metallurgical Equipment Co., Ltd was established in 1996,invested and set up by Wuxi Xinke Autocontrol Research Institute.

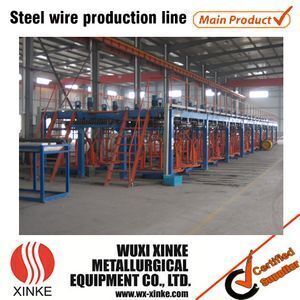

We get more than 20 years exprience being the prefessional design and customized making for steel wire production continuous lines,such as steel wire hot-dip galvanizing continuous line,steel wire electro-galvanizing continuous line,steel wire heat treatment continuous line,and etc.

We hold 26 national patents,12 of them are inventive patents.







Our Services

We will offer basic layout and electrical system diagram of production line within 30 days after signing the contact.

We will supply all information when delivery ,including line electrical drawing,original manual of equipment and instrument table,equipment conformity certificates,list of spare parts,equipement maintanance procedures,drawing and suppliers of quick-wear pats.

We will send engineer and high level technician when installing the production line.

We will test the whole line for one month and train the operater.

We will send engineers to service machinery overseas if necessary.
