2L 5L 10L Glassware Laboratory Magnetic Stirrer 5 Vigreux Stages Vacuum Jacketed CBD Short Path Distillation system price

Supplier: Labfirst Scientific Instruments (shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Mr Alex Huang
Price: $800.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Round bottom:	10L 3neck;	Port:	Shanghai;
Model Number:	SPD-10;	Material:	Borosilicate 3.3 glass;
Model Number:	10l laboratory 5 vigreux stages vacuum jacketed short path distiller;	receiver flask:	2pcs 2000ml;
Packaging Detail:	Carefully packed in wooden case. can do customized package;	Supply Ability:	1000 Piece/Pieces per Month 10l short path distiller;
Certificate:	CE , ISO;	Brand Name:	Lab1st;
Power source:	electric;	Distillation head:	standard 34/45;
Place of Origin:	Shanghai China;	Payment Terms:	L/C,T/T,Western Union,MoneyGram,Paypal;
Magnetic stirring heating mantle:	10L available 110v and 220v;	Application:	distillation;
chiller:	220v single-phase;	Classification:	Other;

Product Description

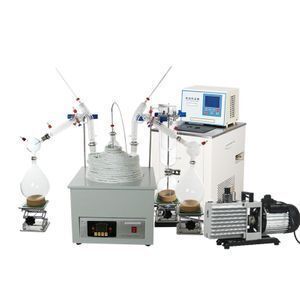

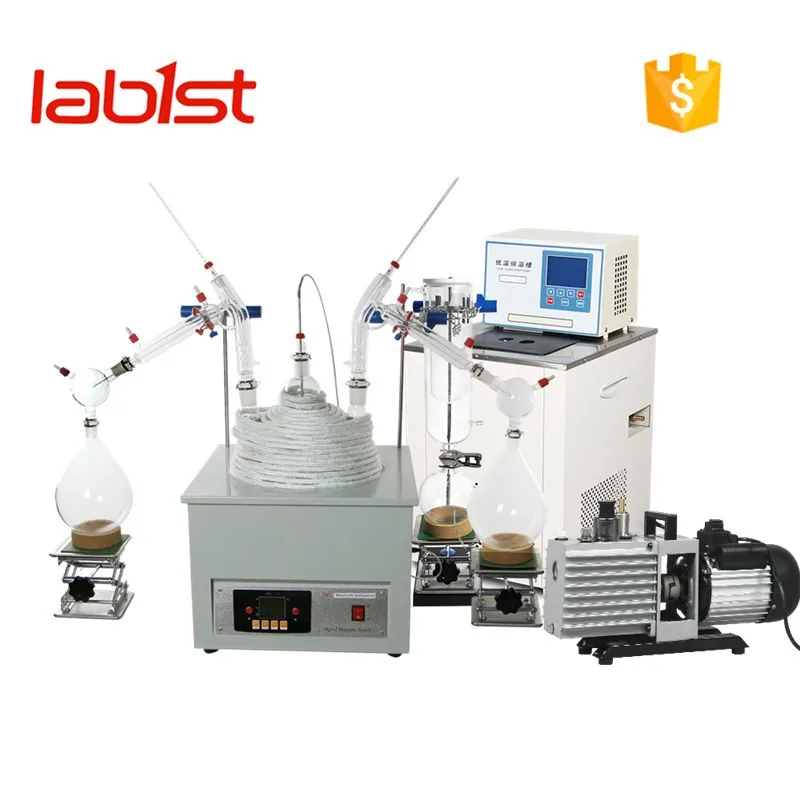

Heavy duty glassware 10l laboratory magnetic stirrer 5 vigreux stages vacuum jacketed short path distillation system

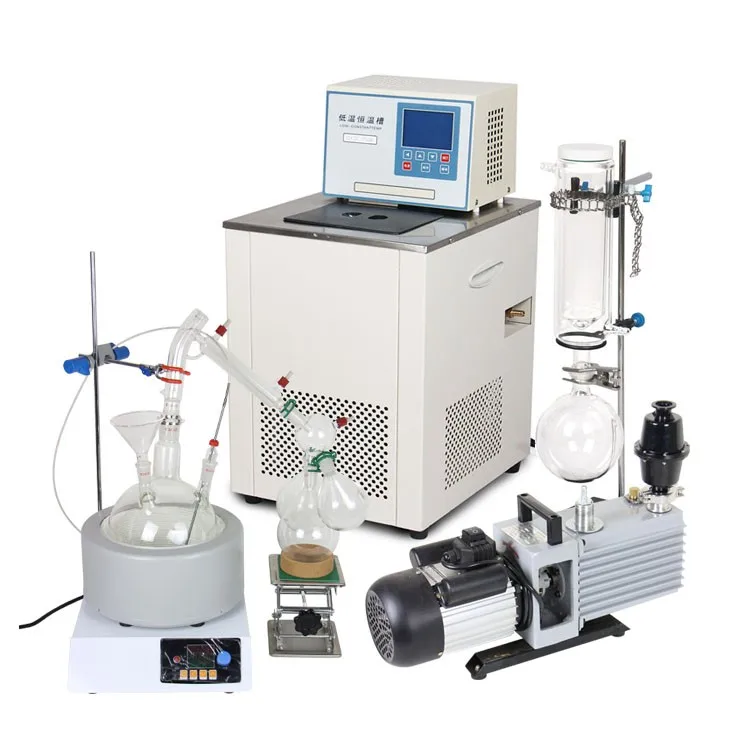

At lab1st, we provide turnkey solution for short path distillation. The entire kit includes a magnetic stirring heating mantle, glassware kit for short path distillation, cold trap, heater/chiller for precise cooling of condenser and necessary accessories(tubes, lab jack, etc).

Technical Futures

10L short path distillation kit

Our short path distillation kit has a high quality and heavy duty borosilicate 3.3 glass for durability. including short path distillation head , 2L round bottom evoporator, distillation cow receiver, 1 to 1, pear-shaped flask receiver and some other accessories.

About round bottom size and distillation head angle, it is convenient we can do customized.

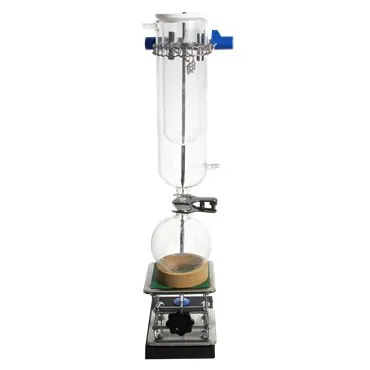

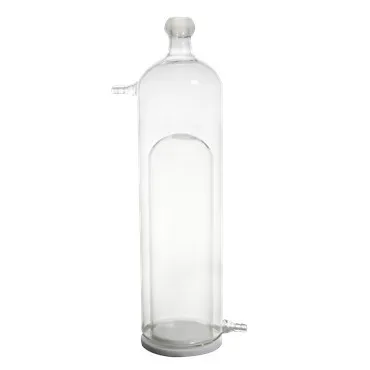

Class cold trap

GCT-01 class cold trap is very important, it can protect the vocuum pump from contamination and damage of vapors.

Glass cold trap includes Dewer style class cold trap with 3/8'' hose barbs, 35/20 joint, PTFE cover, 1L receiving flask, 35/20, stainless steel lab clamp, 35/20, stainless steel lab jack, 15x15cm, clamp holder, chain clamp, lab support stand.

Rotary vane oil pump2XZ-4
pumping rate	8.4CFM, 4L/S
vacuum stage	dual-stage
vacuum level	1.33pa(10 micron)
power	550w
working temperature	-5 to 40 C
votage	110v 60hz or 220v 50/60hz
dimensions	565x168x282mm
CE compliance	yes

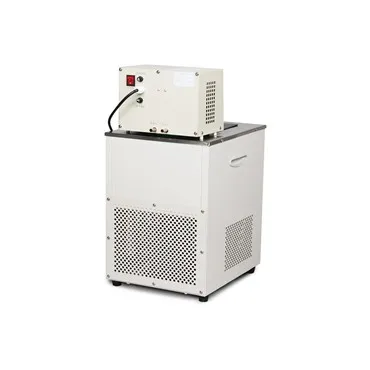

Desktop precise heater/chiller
Temperature range	-5 to 95 C
Temperature Accuracy	+/- 0.1C
reservoir volume	15L
reservoir dimension	250x200x150mm
pump capacity	Max 6L/min
dimension	350x400x690mm
electricity	220v single-phase

Technical datas

Heavy duty glassware 10l laboratory 4 vigreux stages vacuum jacketed short path distiller
Part Description	Specification	Quantity
Round bottom flask for evaporation	Round Bottom Flask, 10L, 3-neck,one vertical 24/40 center neck and two vertical 34/45 side necks	1
Short Path Distillation Head	Vacuum Jacketed, 34/45	2
Screw Thermometer Inlet Adapter	24/40	1
Thermometer Inlet Adapter	14/20	2
Distillation Cow Receiver 2	1-to-1, 24/40	2
Flask for receiving	2000ml 34/45 pear-shaped	2
Glass Funnel	4" opening, 24/40	1
Keck Clamp 1	2pcs 34/45, Stainless Steel 1pcs24/40	3
Keck Clamp 2	24/40, Plastic	6
Cork Ring Stand for Flask	160mm	3
glass cold trap	GCT-01	1
Desktop precise heater/chiller	15L, -5 to 95C	1
Rotary vane oil pump	8.4CFM(4L/S), 2-stage, 110v	1

Packing & Delivery

1.Our wooden box will not be heavy, but can protect all parts, the shipping cost will be better for you.

2.it is flexiable and can be customized! our wooden boxes are based on our customer requirements, product weights and size.

How to support

For a lab equipment, the most valuable is the quality configuration and after sales support!

1.All glassware test by china authorities certification, our products get Green product certification,China famous product certification and ISO9001 quality management system certification.

2.All machine dispatched from Lab1st must be test by 3 times. the first time is the PR deparment,then test again by the QC deparment, and then the machine must be test again by our DS deparment. to guarantee each machine working perfect before delivery!

3.Each machine will deliver with User manual, machine label, Serier No. to guarantee the customer can get the machine without quality problem, custom clearance problem and delivery problem.

4.We provide 13month guarantee since the shipping date, all faulty spare parts can be exchanged for free at the first time.We have completely english instruction video and manual for you.Engineer fly to your site for final repair if needed.

Our factory

Labfirst Scientific Instruments Co.,Ltd | Shanghai, China

Labfirst Scientific (LAB1ST) was founded and based in Shanghai, specializing in the manufacturing and sales of glass-related equipments from lab scale to production scale. We work hard to provide high quality yet low cost products to our customers in universities, research labs and production facilities from all over the world.

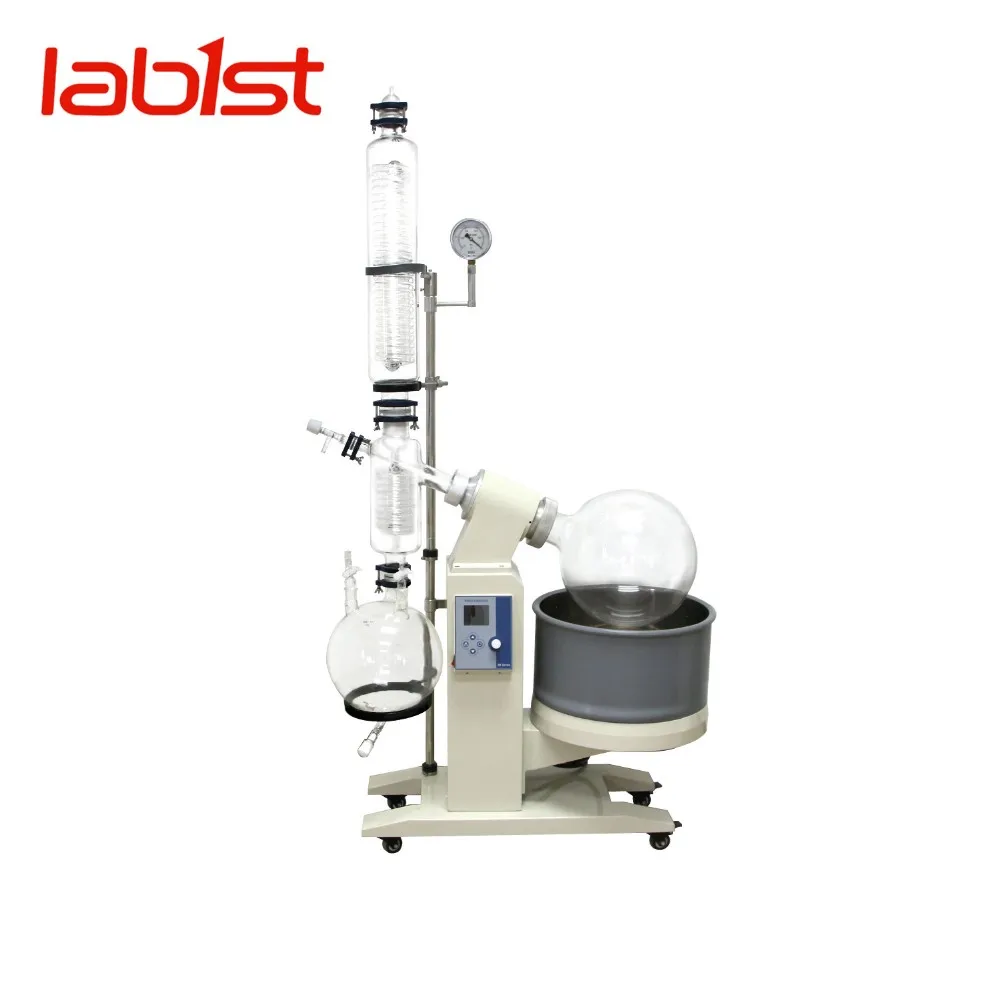

All the glass-related equipments (glass reactors, rotary evaporators, thermo-regulators) are manufactured in our production facility in Shanghai. That helps us keep constant control over product quality and allows us to store a significant inventory of products. (Most of our standard products are in stock and ready to ship.) Essential Oil Extraction Short Path molecular Distillation Equipment
With more than 20 years of experience on glass blowing, we provide a comprehensive range of products from lab glassware to industry-grade glass reactors (up to 200L) and evaporators (up to 50L). With the help of our experienced scientific glassblowers, we are able to quickly build customized glassware and prototype equipments, based on your sketch or pictures.
We are proud to guarantee that, with our strong technical background and communication capability, our sales/support engineers are able to answer your most complicated technical questions over the phone in English. That would save a lot of time for communication.

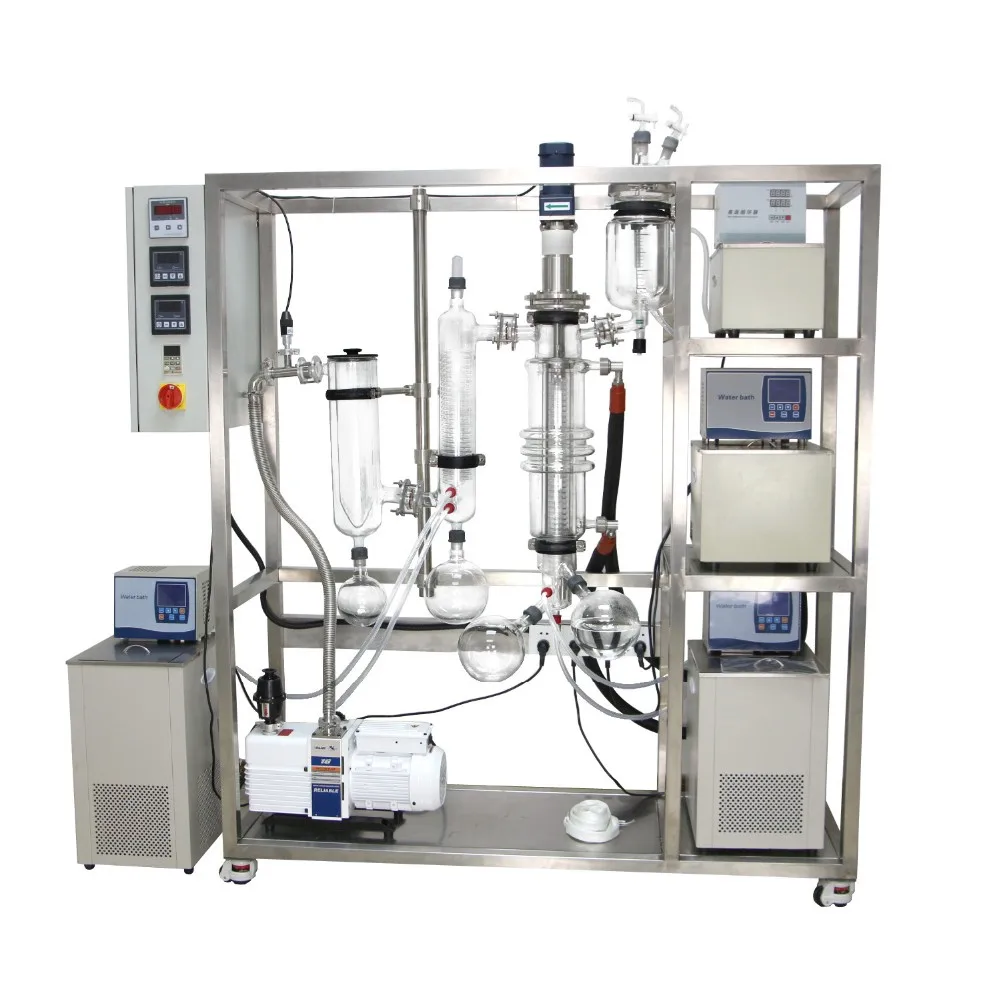

Vacuum Distillation Wiped Film Evaporator
